CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

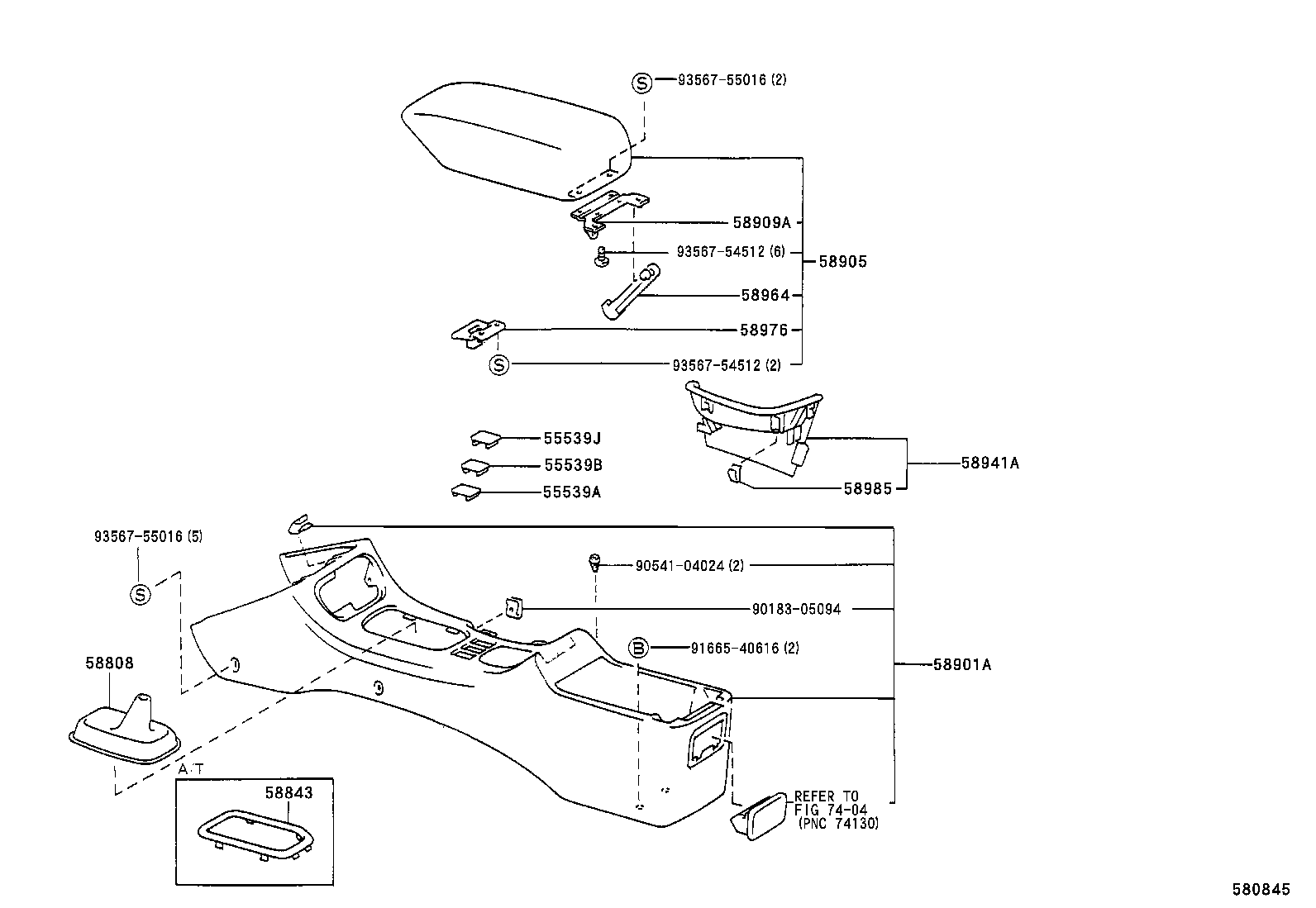

Click highlighted areas on diagram

diagram 55539A 55539B 55539J 58808 58843 58901A 58905 58909A 58941A 58964 58976 58985 7404 9018305094 9054104024 9166540616 9356754512 9356754512 9356755016 9356755016
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-05020B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
55539-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
55539-05010J0

AT190,CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
55539-05020J0

AT190,CT190,ST191..UKP

DK.BLUE,TRIM8#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
55539-05010J0

AT190,CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
55539-05010J0

AT190,CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-05020C1

AT190,CT190,ST191..UKP..LHD..MTM

BLACK,TRIM1#,8#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-05040B0

AT190,CT190,ST191..UKP..LHD

SHADOW GRAY,TRIM1#

 1
58901-05040J0

AT190,CT190,ST191..UKP..LHD

DK.BLUE,TRIM8#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-05010J0

AT190,CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
58905-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
58909A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58909-05010

AT190,CT190,ST191..UKP

 1
58941A - COVER, PARKING BRAKE HOLE
58904-05020J0

AT190,CT190,ST191..UKP..LHD

DK. BLUE,TRIM8#

 1
58904-05020B0

AT190,CT190,ST191..UKP..LHD

SHADOW GRAY,TRIM1#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-05010

AT190,CT190,ST191..UKP

RH

 1
58965-05010

AT190,CT190,ST191..UKP

LH

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT190,CT190,ST191..UKP

 1
58985 - RETAINER, CONSOLE BOX
58985-20050

AT190,CT190,ST191..UKP

 1
Common parts
90183-05094
90541-04024
91665-40616
93567-54512
93567-55016
Linked diagrams
7404
