CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

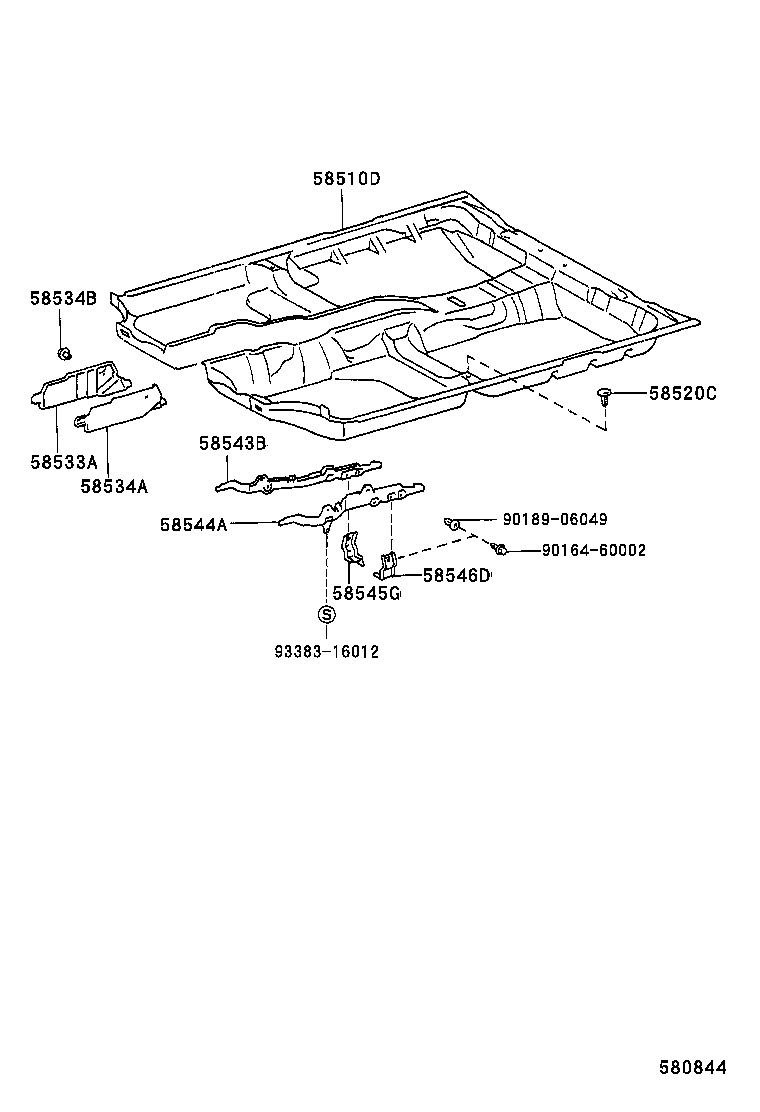

Click highlighted areas on diagram

diagram 58510D 58520C 58533A 58534A 58534B 58543B 58544A 58545G 58546D 9016460002 9018906049 9338316012
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-05140B0

AT190,CT190,ST191..UKP..LHD

GRAY,TRIM1#

 1
58510-05024B0

AT190,CT190,ST191..UKP..LHD

GRAY,TRIM1#

 1
58510-05024J0

AT190,CT190,ST191..UKP..LHD

DK. BLUE,TRIM8#

 1
58510-05140J0

AT190,CT190,ST191..UKP..LHD

DK. BLUE,TRIM8#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 2
58533A - COVER, FLOOR CARPET, CENTER RH
58533-05010

AT190,CT190,ST191..UKP..LHD

 1
58534B - CLIP(FOR FLOOR CARPET CENTER COVER)
90467-07042C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
58543B - BRACKET, FLOOR CARPET, RH
58543-05020

AT190,CT190,ST191..UKP..LHD

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-05020

AT190,CT190,ST191..UKP..LHD

 1
58545G - BRACKET, FLOOR CARPET, NO.2 RH
58545-20010

AT190,CT190,ST191..UKP

 1
58546D - BRACKET, FLOOR CARPET, NO.2 LH
58546-20010

AT190,CT190,ST191..UKP

 1
Common parts
90164-60002
90189-06049
93383-16012
