CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)
Production
Jan 1996
-
Oct 1997
Engine
2CT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601-9710)UKP..LHD

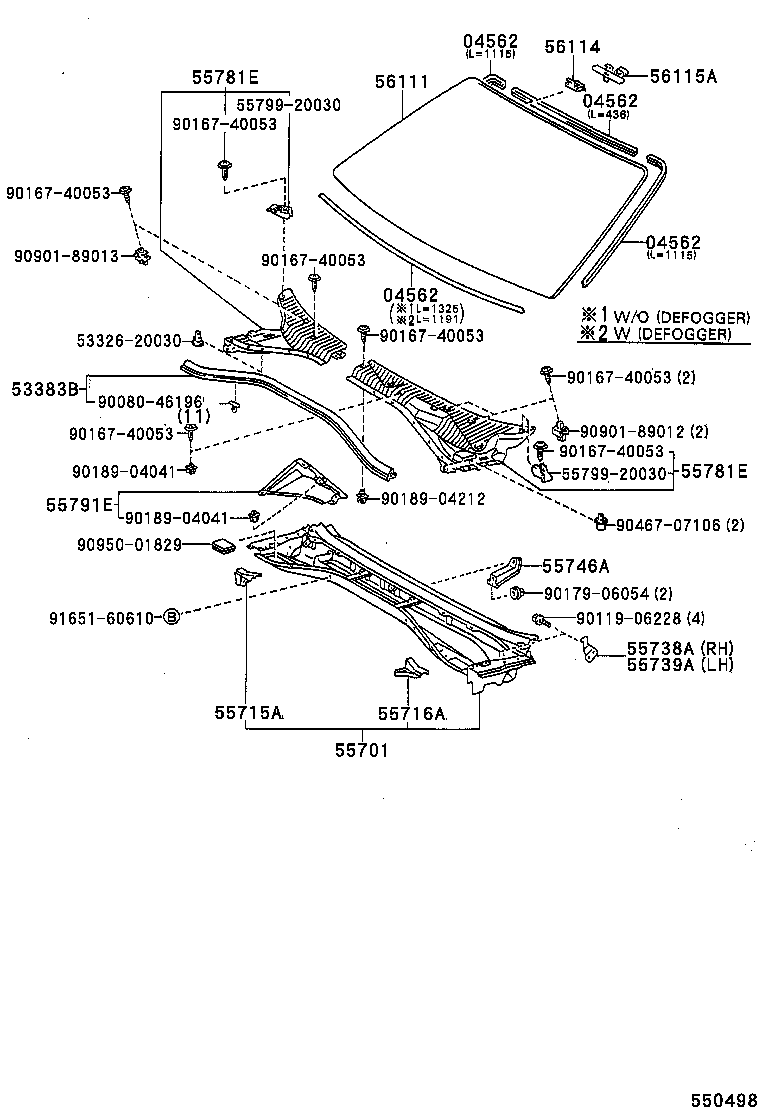

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
AT190,CT190,ST191..UKP |
4 | ||
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
AT190,CT190,ST191..UKP |
4 | ||
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
AT190,CT190,ST191..UKP |
4 | ||
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
AT190,CT190,ST191..UKP |
4 | ||
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-05050 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-20120 |
AT190,CT190,ST191..UKP |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-20090 |
AT190,CT190,ST191..UKP |
1 | ||
| 55738A - STOPPER, HOOD, RH | ||||
| 55738-20050 |
AT190,CT190,ST191..UKP |
1 | ||
| 55739A - STOPPER, HOOD, LH | ||||
| 55739-20050 |
AT190,CT190,ST191..UKP |
1 | ||
| 55746A - REINFORCEMENT, COWL TOP, INNER LOWER | ||||
| 55746-20100 |
AT190,CT190,ST191..UKP |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-05040 |
AT190,CT190,ST191..UKP..LHD RH |
1 | ||
| 55709-05040 |
AT190,CT190,ST191..UKP..LHD LH |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-05040 |
AT190,CT190,ST191..UKP..LHD RH |
1 | ||
| 55709-05040 |
AT190,CT190,ST191..UKP..LHD LH |
1 | ||
| 55791E - COVER, HEATER DUCT HOLE | ||||
| 55790-20020 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-05011 |
AT190,CT190,ST191..UKP *LAM,T=4.9,GREEN |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-20040 |
AT190,CT190,ST191..UKP |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-20060 |
AT190,CT190,ST191..UKP |
2 | ||
| Common parts | ||||
| 53326-20030 | ||||
| 55799-20030 | ||||
| 90080-46196 | ||||
| 90119-06228 | ||||
| 90167-40053 | ||||
| 90179-06054 | ||||
| 90189-04041 | ||||
| 90189-04212 | ||||
| 90467-07106 | ||||
| 90901-89012 | ||||
| 90901-89013 | ||||
| 90950-01829 | ||||
| 91651-60610 | ||||
