CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)

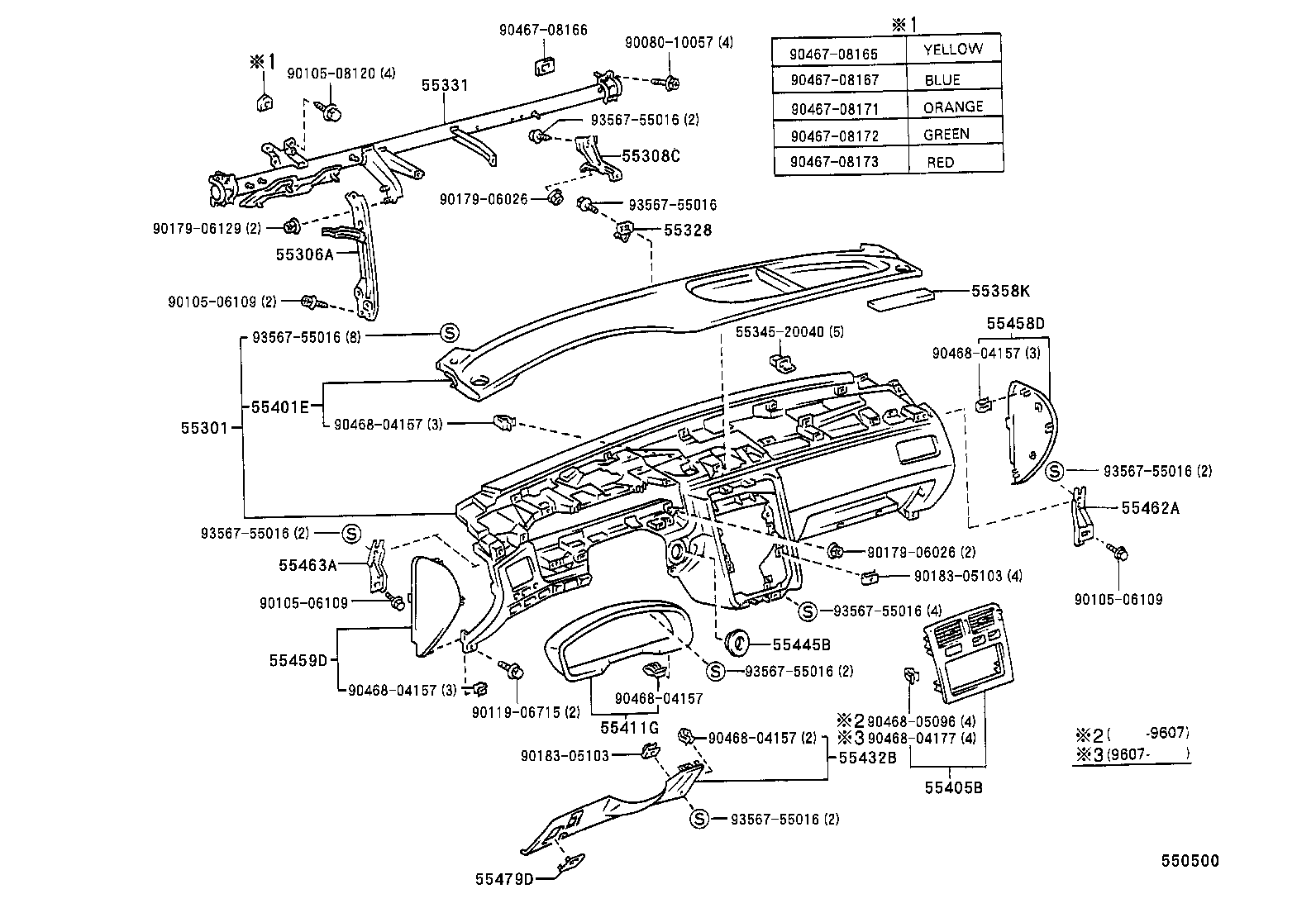

ILLUST NO. 1 OF 2(9601- )UKP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-05020J0 |
AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 55300-05020B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-05020 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20070 |
AT190,CT190,ST191..UKP |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-05020 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 55330-05040 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-05010 |
AT190,CT190,ST191..UKP |
3 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-05021B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-05021J0 |
AT190,CT190,ST191..UKP..LHD DK.BLUE,TRIM8# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-20150 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-05020 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-05020J0 |
AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 55432-05020B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-20200 |
AT190,CT190,ST191..UKP |
1 | ||
| 55458D - COVER, INSTRUMENT LOWER, RH | ||||
| 55458-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 55458-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 55459-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55462A - EXTENSION, INSTRUMENT SAFETY PAD INSERT, RH | ||||
| 55462-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 55463A - EXTENSION, INSTRUMENT SAFETY PAD INSERT, LH | ||||
| 55463-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-05020J0 |
AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 55479-05020B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 55345-20040 | ||||
| 90080-10057 | ||||
| 90105-06109 | ||||
| 90105-08120 | ||||
| 90119-06715 | ||||
| 90179-06026 | ||||
| 90179-06129 | ||||
| 90183-05103 | ||||
| 90467-08165 | ||||
| 90467-08166 | ||||
| 90467-08167 | ||||
| 90467-08171 | ||||
| 90467-08172 | ||||
| 90467-08173 | ||||
| 90468-04157 | ||||
| 90468-04177 | ||||
| 90468-05096 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 2(9601- )UKP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-05020B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55550-05020J0 |
AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
AT190,CT190,ST191..UKP |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
AT190,CT190,ST191..UKP |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 55539-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 55539-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55539-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 55539-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020J0 |
AT190,CT190,ST191..UKP DARK BLUE,TRIM8# |
1 | ||
| 55565-22020B1 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030B1 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55569-22030J0 |
AT190,CT190,ST191..UKP DARK BLUE,TRIM8# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-05010 |
AT190,CT190,ST191..UKP |
2 | ||
| 55581D - BOX, SHELL, UPPER | ||||
| 55581-05020B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55581-05020J0 |
AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-05020J0 |
AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 55650-05020B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-05020J0 |
AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 55660-05020B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-05020 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-05020J0 |
AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 55961-05020B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-05020B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55962-05020J0 |
AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 55963 - RETAINER, SIDE DEFROSTER | ||||
| 55963-20030 |
AT190,CT190,ST191..UKP |
2 | ||
| 55963 - RETAINER, SIDE DEFROSTER | ||||
| 55963-20030 |
AT190,CT190,ST191..UKP |
2 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 90254-04016 | ||||
| 93567-15016 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
