CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP

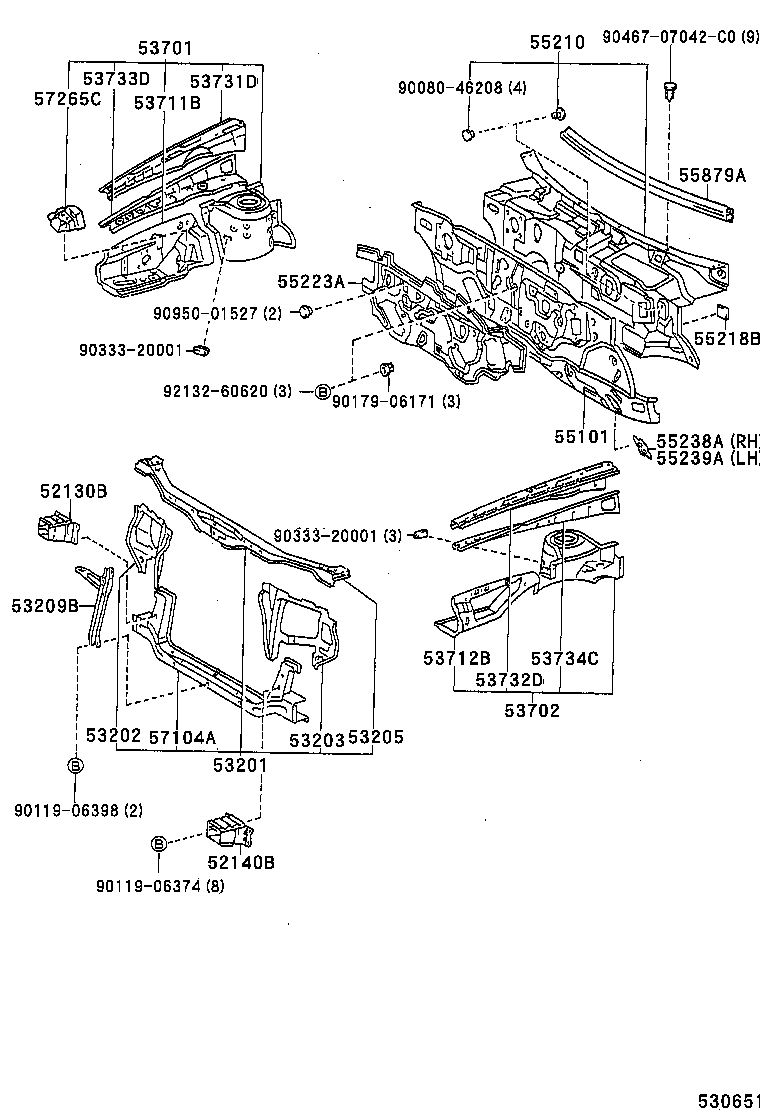

Click highlighted areas on diagram

diagram 52130B 52140B 53201 53202 53203 53205 53209B 53701 53702 53711B 53712B 53731D 53732D 53733D 53734C 55101 55210 55218B 55223A 55238A 55239A 55879A 57104A 57265C 9008046208 9011906374 9011906398 9017906171 9033320001 9033320001 9046707042C0 9095001527 9213260620
Part # Description Qty Price
52130B - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52130-05020

AT190,CT190,ST191..UKP

 1
52140B - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
52140-05020

AT190,CT190,ST191..UKP

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-05010

AT190,CT190,ST191..UKP

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-05010

AT190,CT190,ST191..UKP

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-05010

AT190,CT190,ST191..UKP

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-05010

AT190,CT190,ST191..UKP

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-20300

AT190,CT190,ST191..UKP

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-05040

AT190,CT190,ST191..UKP

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-05040

AT190,CT190,ST191..UKP

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-20321

AT190,CT190,ST191..UKP

 1
53711-20320

AT190,CT190,ST191..UKP

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-20341

AT190,CT190,ST191..UKP

 1
53712-20340

AT190,CT190,ST191..UKP

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-05010

AT190,CT190,ST191..UKP

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-05010

AT190,CT190,ST191..UKP

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-05010

AT190,CT190,ST191..UKP

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-05010

AT190,CT190,ST191..UKP

 1
55101 - PANEL SUB-ASSY, DASH
55101-05120

CT190..UKP

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-05060

AT190,CT190,ST191..UKP..LHD

 1
55210-05100

AT190,CT190,ST191..UKP..LHD

 1
55218B - SEAL, DASH PANEL INSULATOR
55218-20080

AT190,CT190,ST191..UKP

60 X 75

 9
55218-20070

AT190,CT190,ST191..UKP

110X150

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-05020

CT190..UKP

 1
55238A - PLATE, DASH PANEL INSULATOR, NO.2
55238-20030

AT190,CT190,ST191..UKP

 1
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-20060

AT190,CT190,ST191..UKP

 1
55879A - SEAL, COWL VENT
55879-20060

AT190,CT190,ST191..UKP

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-05010

AT190,CT190,ST191..UKP

 1
57265C - BRACKET, ENGINE MOUNTING, RH
57265-05010

AT190,CT190,ST191..UKP

 1
Common parts
90080-46208
90119-06374
90119-06398
90179-06171
90333-20001
90467-07042C0
90950-01527
92132-60620
