CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP

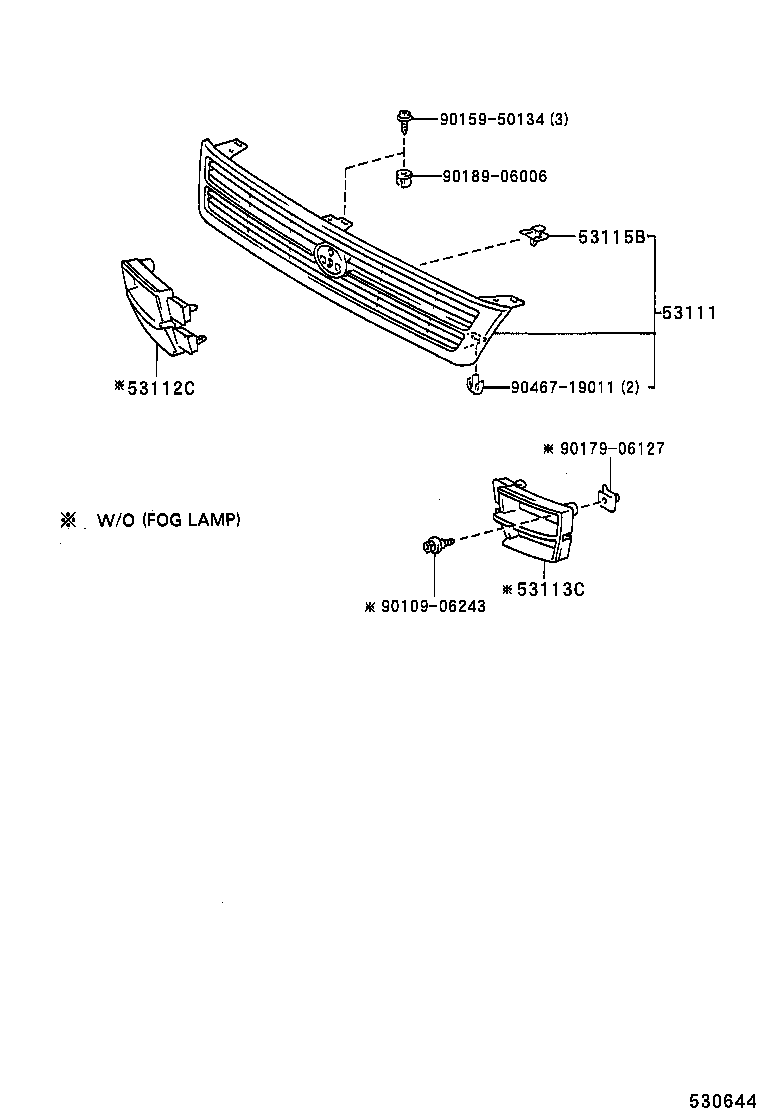

Click highlighted areas on diagram

diagram 53111 53112C 53113C 53115B 9010906243 9015950134 9017906127 9018906006 9046719011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-05020B1

AT190,CT190,ST191..UKP

SILVER ME,199

 1
53101-05020D0

AT190,CT190,ST191..UKP

SU.RED 3,3J6

 1
53101-05020H1

AT190,CT190,ST191..UKP

TURQUOISE M.M,746

 1
53101-05020B0

AT190,CT190,ST191..UKP

DK.BL.GRAY ME,183

 1
53101-05020H0

AT190,CT190,ST191..UKP

DK.TURQUOISE.MC,742

 1
53101-05020J1

AT190,CT190,ST191..UKP

PURPLISH BLUE M.M.,8K9

 1
53101-05020C0

AT190,CT190,ST191..UKP

BLACK ME,205

 1
53101-05020D1

AT190,CT190,ST191..UKP

MAGENTA MC.,3L3

 1
53101-05020J0

AT190,CT190,ST191..UKP

BLUE,8H6

 1
53101-05020A0

AT190,CT190,ST191..UKP

SUPER WHITE 2,040

 1
53112C - GRILLE, RADIATOR, LOWER RH
53112-05010

AT190,CT190,ST191..UKP

 1
53113C - GRILLE, RADIATOR, LOWER LH
53113-05010

AT190,CT190,ST191..UKP

 1
53115B - BRACKET, RADIATOR GRILLE
53115-16010

AT190,CT190,ST191..UKP

 1
Common parts
90109-06243
90159-50134
90179-06127
90189-06006
90467-19011
