CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)
Production
Jan 1996
-
Oct 1997
Engine
2CT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601-9710)UKP

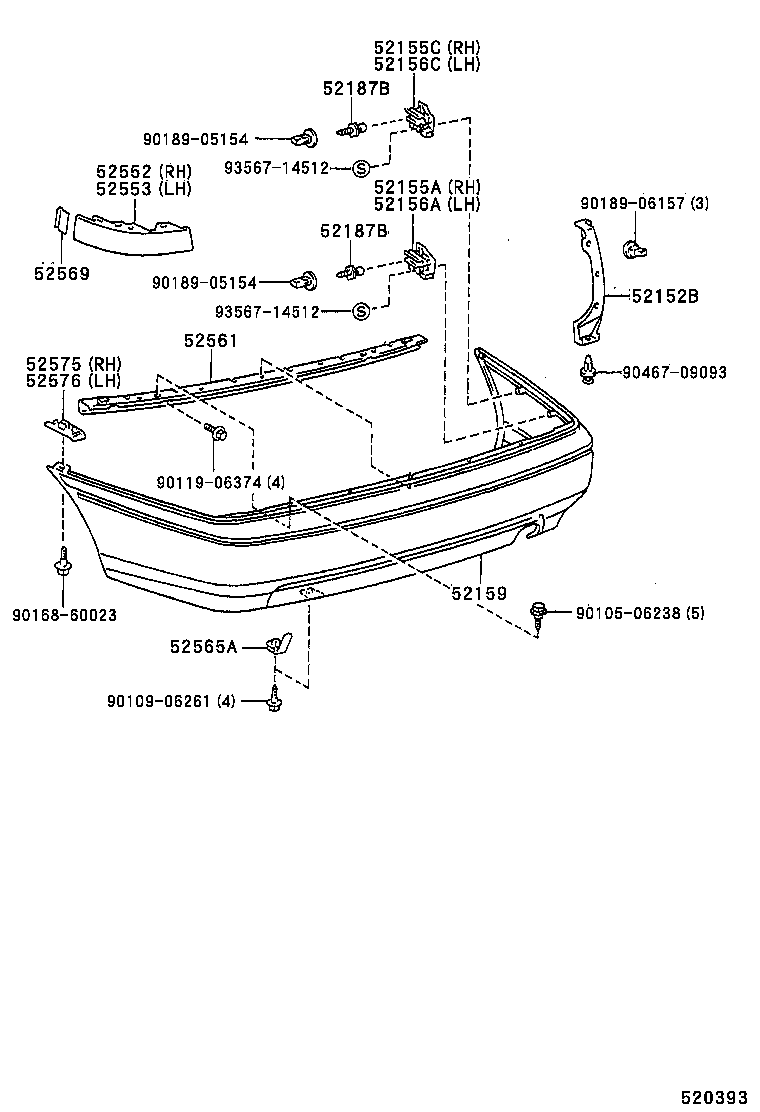

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH | ||||
| 52157-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52155-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH | ||||
| 52157-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-05020 |
AT190,CT190,ST191..UKP |
1 | ||
| 52187B - GUIDE, REAR BUMPER LOCATION | ||||
| 52187-12140 |
AT190,CT190,ST191..UKP |
4 | ||
| 52187B - GUIDE, REAR BUMPER LOCATION | ||||
| 52187-12140 |
AT190,CT190,ST191..UKP |
4 | ||
| 52552 - FILLER, REAR BUMPER, RH | ||||
| 52552-20020 |
AT190,CT190,ST191..UKP |
1 | ||
| 52553 - FILLER, REAR BUMPER, LH | ||||
| 52553-20020 |
AT190,CT190,ST191..UKP |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 90467-11028 |
AT190,CT190,ST191..UKP |
4 | ||
| 52569 - PAD, REAR BUMPER FILLER | ||||
| 52569-20020 |
AT190,CT190,ST191..UKP |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 90105-06238 | ||||
| 90109-06261 | ||||
| 90119-06374 | ||||
| 90168-60023 | ||||
| 90189-05154 | ||||
| 90189-06157 | ||||
| 90467-09093 | ||||
| 93567-14512 | ||||
