CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP

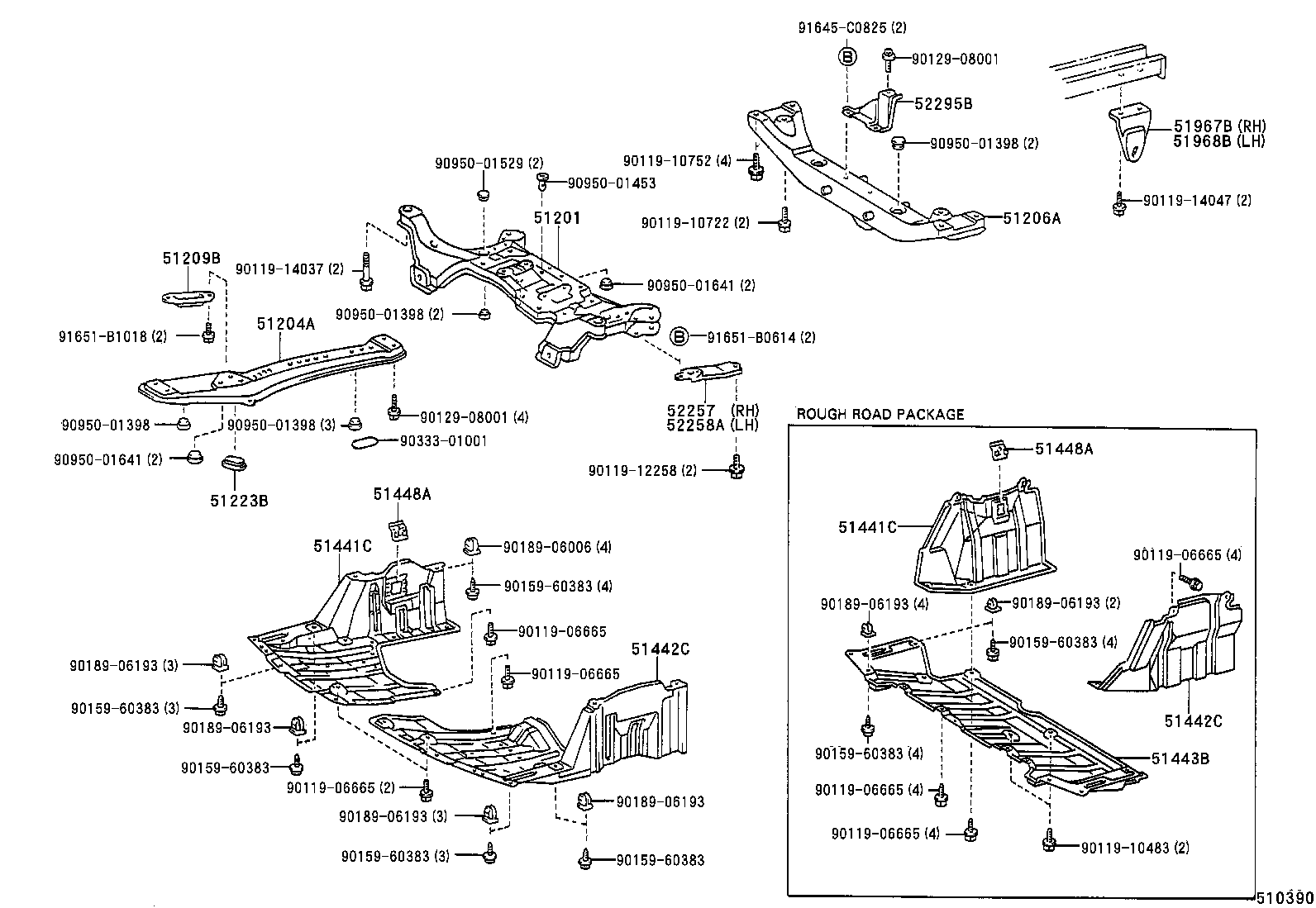

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51209B 51223B 51441C 51441C 51442C 51442C 51443B 51448A 51448A 51967B 51968B 52257 52258A 52295B 9011906665 9011906665 9011906665 9011906665 9011906665 9011906665 9011910483 9011910722 9011910752 9011912258 9011914037 9011914047 9012908001 9012908001 9015960383 9015960383 9015960383 9015960383 9015960383 9015960383 9015960383 9018906006 9018906193 9018906193 9018906193 9018906193 9018906193 9018906193 9033301001 9095001398 9095001398 9095001398 9095001398 9095001453 9095001529 9095001641 9095001641 91645C0825 91651B0614 91651B1018
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-05040

AT190,CT190,ST191..UKP..LHD

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-05010

AT190,CT190,ST191..UKP

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-05031

AT190,CT190,ST191..UKP

 1
51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51209-12010

AT190,CT190,ST191..UKP

 1
51223B - COVER, ENGINE MOUNTING HOLE
51223-20050

AT190,CT190,ST191..UKP

 1
51441C - COVER, ENGINE UNDER, RH
51441-20320

AT190,CT190,ST191..UKP

ROUGH ROAD PACKAGE

 1
51441-05010

AT190,CT190,ST191..UKP

 1
51441C - COVER, ENGINE UNDER, RH
51441-20320

AT190,CT190,ST191..UKP

ROUGH ROAD PACKAGE

 1
51441-05010

AT190,CT190,ST191..UKP

 1
51442C - COVER, ENGINE UNDER, LH
51442-05010

AT190,CT190,ST191..UKP..MTM

 1
51442-20400

AT190,CT190,ST191..UKP

ROUGH ROAD PACKAGE

 1
51442C - COVER, ENGINE UNDER, LH
51442-05010

AT190,CT190,ST191..UKP..MTM

 1
51442-20400

AT190,CT190,ST191..UKP

ROUGH ROAD PACKAGE

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-20080

AT190,CT190,ST191..UKP

ROUGH ROAD PACKAGE

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20030

AT190,CT190,ST191..UKP

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20030

AT190,CT190,ST191..UKP

 1
51967B - HOOK, TRANSPORT, REAR RH
51967-05010

AT190,CT190,ST191..UKP

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-05010

AT190,CT190,ST191..UKP

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-20010

AT190,CT190,ST191..UKP

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-20010

AT190,CT190,ST191..UKP

 1
52295B - BRACE, REAR SUSPENSION MEMBER, RH
52295-05020

AT190,CT190,ST191..UKP

 1
Common parts
90119-06665
90119-10483
90119-10722
90119-10752
90119-12258
90119-14037
90119-14047
90129-08001
90159-60383
90189-06006
90189-06193
90333-01001
90950-01398
90950-01453
90950-01529
90950-01641
91645-C0825
91651-B0614
91651-B1018
