CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

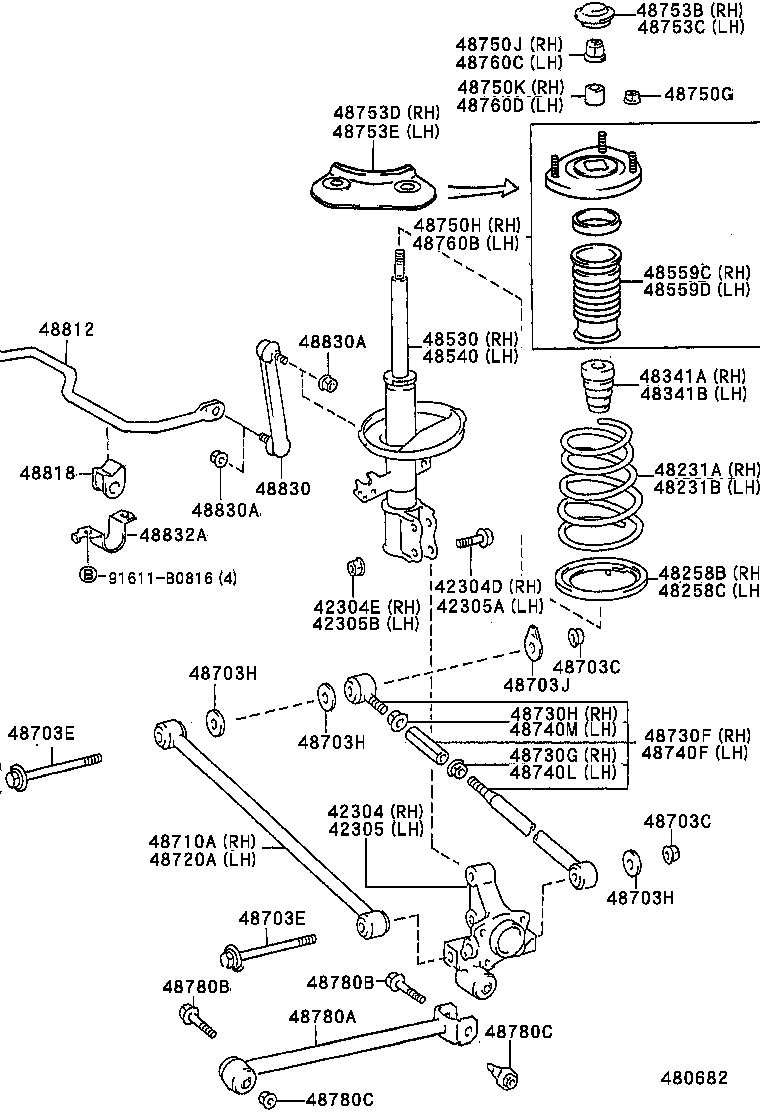

Click highlighted areas on diagram

diagram 42304 42304D 42304E 42305 42305A 42305B 48231A 48231B 48258B 48258C 48341A 48341B 48530 48540 48559C 48559D 48703C 48703C 48703E 48703E 48703H 48703H 48703H 48703J 48710A 48720A 48730F 48730G 48730H 48740F 48740L 48740M 48750G 48750H 48750J 48750K 48753B 48753C 48753D 48753E 48760B 48760C 48760D 48780A 48780B 48780B 48780C 48780C 48812 48818 48830 48830A 48830A 48832A 91611B0816
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-05031

AT190,CT190,ST191..UKP

 1
42304D - BOLT (FOR REAR AXLE CARRIER RH)
90105-15001

AT190,CT190,ST191..UKP

 2
42304E - NUT (FOR REAR AXLE CARRIER RH)
90179-15001

AT190,CT190,ST191..UKP

 2
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-05031

AT190,CT190,ST191..UKP

 1
42305A - BOLT (FOR REAR AXLE CARRIER LH)
90105-15001

AT190,CT190,ST191..UKP

 2
42305B - NUT (FOR REAR AXLE CARRIER LH)
90179-15001

AT190,CT190,ST191..UKP

 2
48231A - SPRING, COIL, REAR RH
48231-05130

CT190..UKP

 1
48231-05131

CT190..UKP

 1
48231B - SPRING, COIL, REAR LH
48231-05130

CT190..UKP

 1
48231-05131

CT190..UKP

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-05010

AT190,CT190,ST191..UKP

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-05010

AT190,CT190,ST191..UKP

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-05010

AT190,CT190,ST191..UKP

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-05010

AT190,CT190,ST191..UKP

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-09140

AT190,CT190,ST191..UKP

ROUGH ROAD PACKAGE

 1
48530-09130

AT190,CT190,ST191..UKP

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-09130

AT190,CT190,ST191..UKP

 1
48540-09140

AT190,CT190,ST191..UKP

ROUGH ROAD PACKAGE

 1
48559C - COVER, REAR SHOCK ABSORBER DUST, RH NO.1
48754-05010

AT190,CT190,ST191..UKP

 1
48559D - COVER, REAR SHOCK ABSORBER DUST, LH NO.1
48754-05010

AT190,CT190,ST191..UKP

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

AT190,CT190,ST191..UKP

 4
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

AT190,CT190,ST191..UKP

 4
48703E - BOLT(FOR REAR SUSPENSION ARM)
90901-09001

AT190,CT190,ST191..UKP

*14-1.50PX260-26,BODY SIDE

 2
90901-19001

AT190,CT190,ST191..UKP

*14-1.50PX260-26,CARRIER SIDE

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90901-09001

AT190,CT190,ST191..UKP

*14-1.50PX260-26,BODY SIDE

 2
90901-19001

AT190,CT190,ST191..UKP

*14-1.50PX260-26,CARRIER SIDE

 2
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT190,CT190,ST191..UKP

 6
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT190,CT190,ST191..UKP

 6
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT190,CT190,ST191..UKP

 6
48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM)
48715-20020

AT190,CT190,ST191..UKP

 1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-05030

AT190,CT190,ST191..UKP

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-05030

AT190,CT190,ST191..UKP

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-05040

AT190,CT190,ST191..UKP

 1
48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)
90179-16022

AT190,CT190,ST191..UKP

 1
48730H - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)
90179-16021

AT190,CT190,ST191..UKP

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-05040

AT190,CT190,ST191..UKP

 1
48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)
90179-16022

AT190,CT190,ST191..UKP

 1
48740M - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)
90179-16021

AT190,CT190,ST191..UKP

 1
48750G - NUT(FOR REAR SUSPENSION SUPPORT)
90179-08122

AT190,CT190,ST191..UKP

 6
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-05010

AT190,CT190,ST191..UKP

 1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90179-14015

AT190,CT190,ST191..UKP

 1
48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90387-15027

AT190,CT190,ST191..UKP

 1
48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753-20040

AT190,CT190,ST191..UKP

 1
48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48753-20040

AT190,CT190,ST191..UKP

 1
48753D - COVER, REAR SUSPENSION SUPOPORT, NO.2 RH
48753-20070

AT190,CT190,ST191..UKP

 1
48753E - COVER, REAR SUSPENSION SUPOPORT, NO.2 LH
48753-20070

AT190,CT190,ST191..UKP

 1
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-05010

AT190,CT190,ST191..UKP

 1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90179-14015

AT190,CT190,ST191..UKP

 1
48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90387-15027

AT190,CT190,ST191..UKP

 1
48780A - ROD ASSY, STRUT, REAR
48780-05010

AT190,CT190,ST191..UKP

 2
48780B - BOLT(FOR STRUT ROD)
90119-12131

AT190,CT190,ST191..UKP

 4
48780B - BOLT(FOR STRUT ROD)
90119-12131

AT190,CT190,ST191..UKP

 4
48780C - NUT(FOR STRUT ROD)
90179-12114

AT190,CT190,ST191..UKP

BODY SIDE

 2
90179-12091

AT190,CT190,ST191..UKP

CARRIER SIDE

 2
48780C - NUT(FOR STRUT ROD)
90179-12114

AT190,CT190,ST191..UKP

BODY SIDE

 2
90179-12091

AT190,CT190,ST191..UKP

CARRIER SIDE

 2
48812 - BAR, STABILIZER, REAR
48812-05010

AT190,CT190,ST191..UKP

 1
48818 - BUSH, STABILIZER, REAR
48818-05010

AT190,CT190,ST191..UKP

 2
48830 - LINK ASSY, REAR STABILIZER
48830-05011

AT190,CT190,ST191..UKP

 2
48830-20010

AT190,CT190,ST191..UKP

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054

AT190,CT190,ST191..UKP

 4
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054

AT190,CT190,ST191..UKP

 4
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-20080

AT190,CT190,ST191..UKP

 2
Common parts
91611-B0816
