CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)

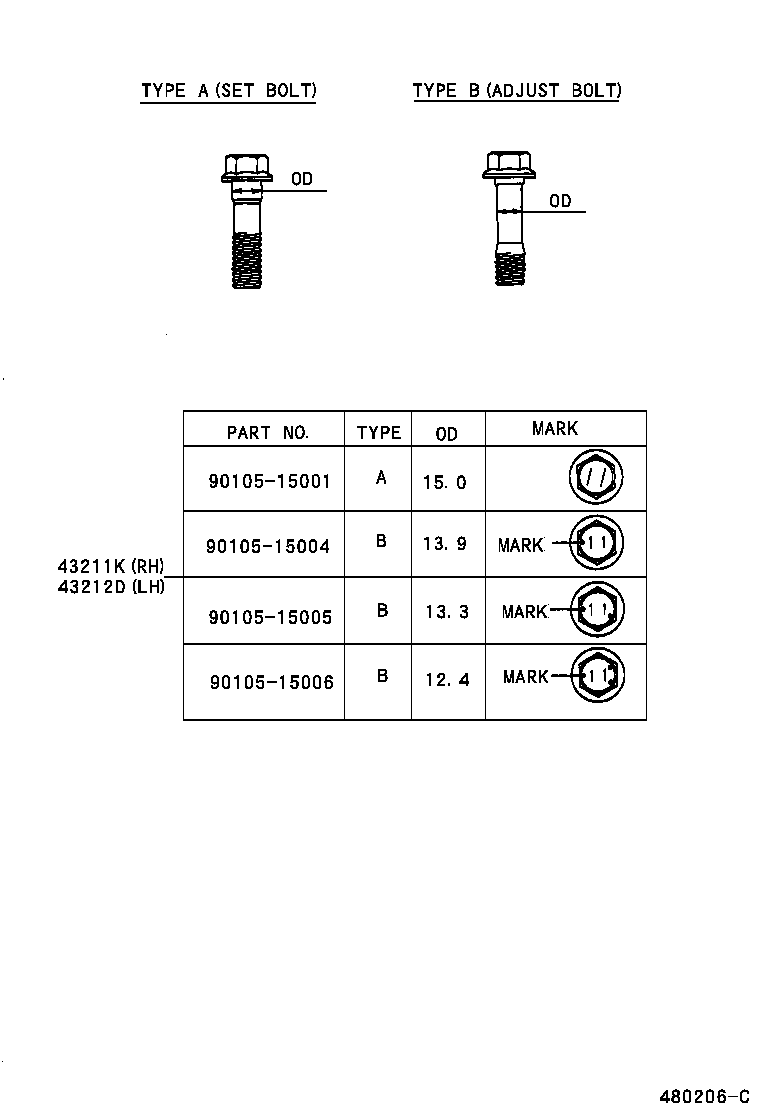

ILLUST NO. 2 OF 2(9601- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15006 |
AT190,CT190,ST191..UKP OD=12.4 |
1 | ||
| 90105-15001 |
AT190,CT190,ST191..UKP OD=15.0 |
2 | ||
| 90105-15004 |
AT190,CT190,ST191..UKP OD=13.9 |
1 | ||
| 90105-15005 |
AT190,CT190,ST191..UKP OD=13.3 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15005 |
AT190,CT190,ST191..UKP OD=13.3 |
1 | ||
| 90105-15001 |
AT190,CT190,ST191..UKP OD=15.0 |
2 | ||
| 90105-15004 |
AT190,CT190,ST191..UKP OD=13.9 |
1 | ||
| 90105-15006 |
AT190,CT190,ST191..UKP OD=12.4 |
1 | ||

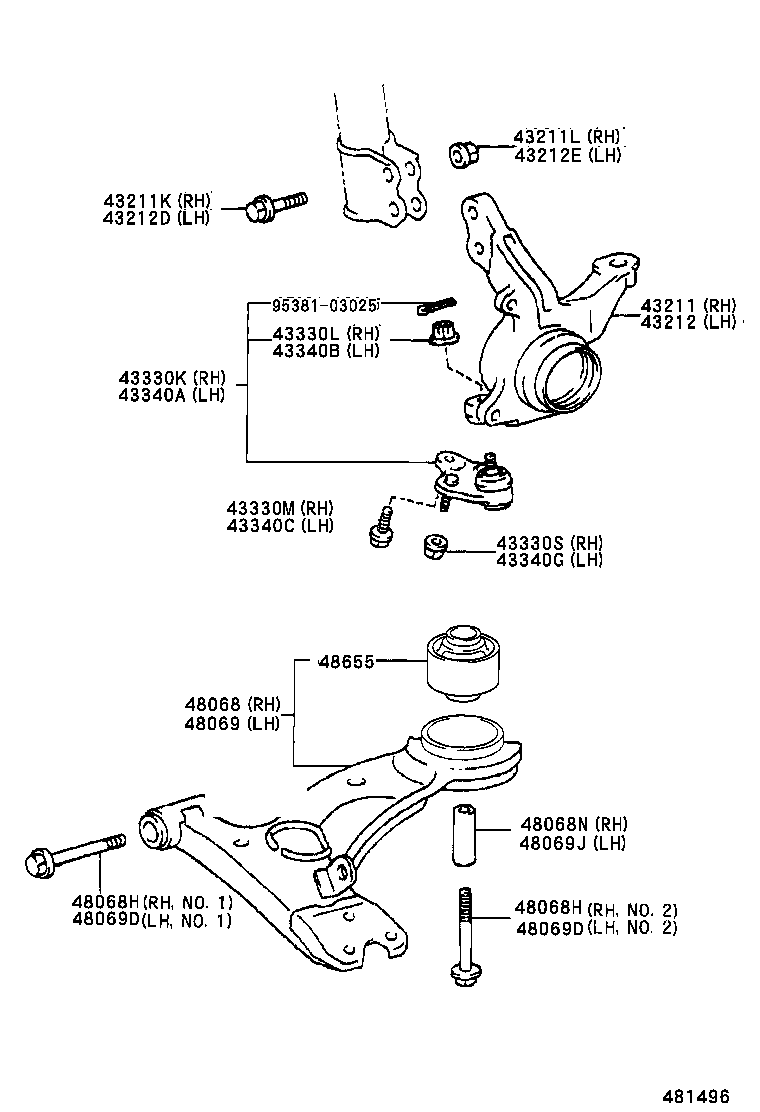

ILLUST NO. 1 OF 2(9601- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-05031 |
AT190,CT190,ST191..UKP |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15006 |
AT190,CT190,ST191..UKP OD=12.4 |
1 | ||
| 90105-15001 |
AT190,CT190,ST191..UKP OD=15.0 |
2 | ||
| 90105-15004 |
AT190,CT190,ST191..UKP OD=13.9 |
1 | ||
| 90105-15005 |
AT190,CT190,ST191..UKP OD=13.3 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15001 |
AT190,CT190,ST191..UKP |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-05031 |
AT190,CT190,ST191..UKP |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15005 |
AT190,CT190,ST191..UKP OD=13.3 |
1 | ||
| 90105-15001 |
AT190,CT190,ST191..UKP OD=15.0 |
2 | ||
| 90105-15004 |
AT190,CT190,ST191..UKP OD=13.9 |
1 | ||
| 90105-15006 |
AT190,CT190,ST191..UKP OD=12.4 |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15001 |
AT190,CT190,ST191..UKP |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-09030 |
AT190,CT190,ST191..UKP |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
AT190,CT190,ST191..UKP |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12122 |
AT190,CT190,ST191..UKP |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90179-12052 |
AT190,CT190,ST191..UKP |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-09030 |
AT190,CT190,ST191..UKP |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
AT190,CT190,ST191..UKP |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12122 |
AT190,CT190,ST191..UKP |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90179-12052 |
AT190,CT190,ST191..UKP |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-05022 |
AT190,CT190,ST191..UKP |
1 | ||
| 48068-05021 |
AT190,CT190,ST191..UKP |
1 | ||
| 48068-05020 |
AT190,CT190,ST191..UKP |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-14051 |
AT190,CT190,ST191..UKP ARM NO.2 |
1 | ||
| 90119-14023 |
AT190,CT190,ST191..UKP ARM NO.1 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-14051 |
AT190,CT190,ST191..UKP ARM NO.2 |
1 | ||
| 90119-14023 |
AT190,CT190,ST191..UKP ARM NO.1 |
1 | ||
| 48068N - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90389-19002 |
AT190,CT190,ST191..UKP |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-05020 |
AT190,CT190,ST191..UKP |
1 | ||
| 48069-05022 |
AT190,CT190,ST191..UKP |
1 | ||
| 48069-05021 |
AT190,CT190,ST191..UKP |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-14051 |
AT190,CT190,ST191..UKP ARM NO.2 |
1 | ||
| 90119-14023 |
AT190,CT190,ST191..UKP ARM NO.1 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-14051 |
AT190,CT190,ST191..UKP ARM NO.2 |
1 | ||
| 90119-14023 |
AT190,CT190,ST191..UKP ARM NO.1 |
1 | ||
| 48069J - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90389-19002 |
AT190,CT190,ST191..UKP |
1 | ||
| 48655 - BUSH, LOWER ARM, NO.2 | ||||
| 48655-05011 |
AT190,CT190,ST191..UKP |
2 | ||
| Common parts | ||||
| 95381-03025 | ||||
