CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP..LHD

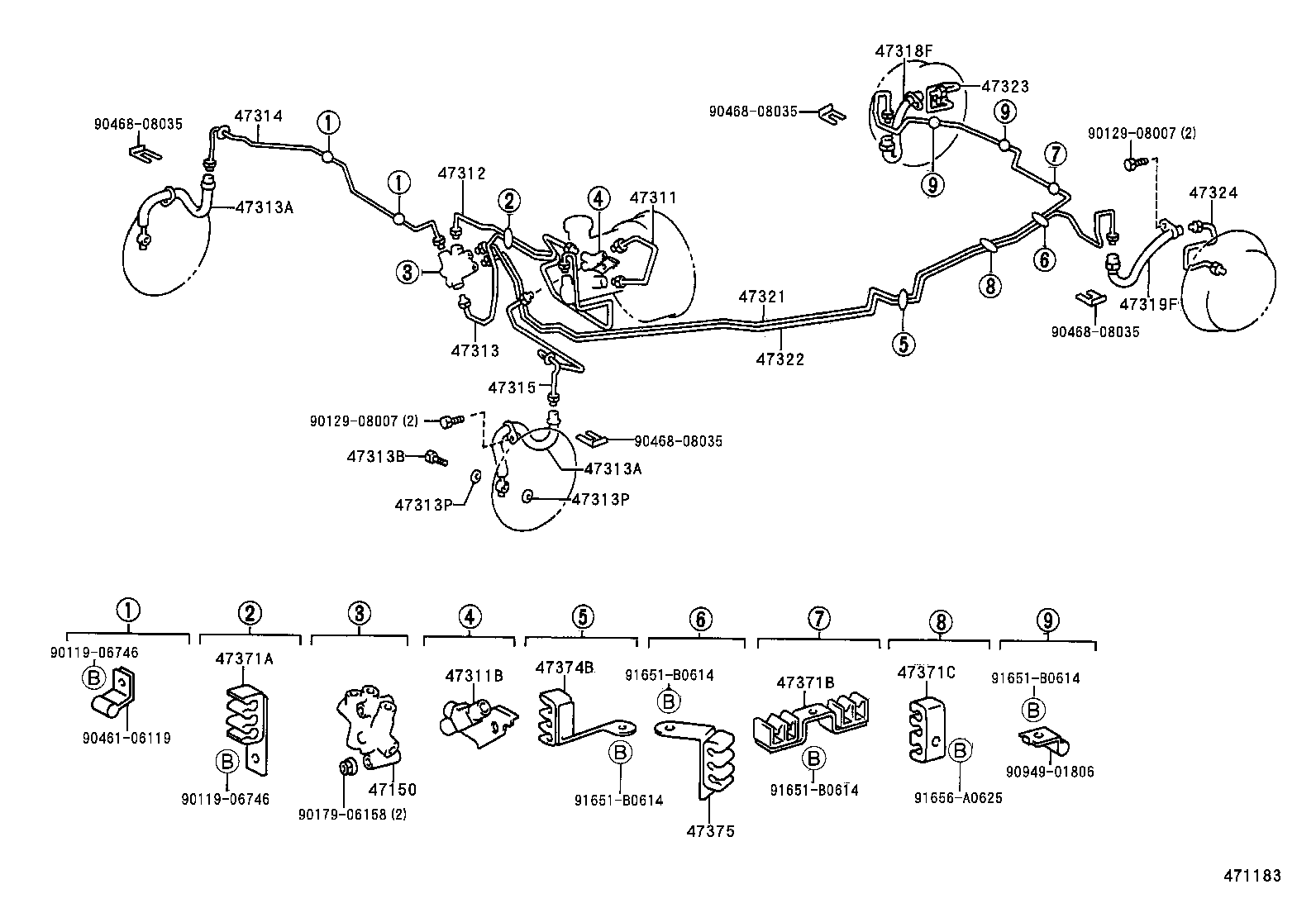

Click highlighted areas on diagram

diagram 47150 47311 47311B 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318F 47319F 47321 47322 47323 47324 47371A 47371B 47371C 47374B 47375 9011906746 9011906746 9012908007 9012908007 9017906158 9046106119 9046808035 9046808035 9046808035 9046808035 9094901806 91651B0614 91651B0614 91651B0614 91651B0614 91656A0625
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12080

AT190,CT190,ST191..UKP

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-05020

AT190,CT190,ST191..UKP..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-05020

AT190,CT190,ST191..UKP..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47311-05050

AT190,CT190,ST191..UKP..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-05020

AT190,CT190,ST191..UKP..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94001

AT190,CT190,ST191..UKP

RH

 1
90080-94015

AT190,CT190,ST191..UKP

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94001

AT190,CT190,ST191..UKP

RH

 1
90080-94015

AT190,CT190,ST191..UKP

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT190,CT190,ST191..UKP

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

AT190,CT190,ST191..UKP

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

AT190,CT190,ST191..UKP

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-05020

AT190,CT190,ST191..UKP..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-05020

AT190,CT190,ST191..UKP..LHD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90080-94016

AT190,CT190,ST191..UKP

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90080-94017

AT190,CT190,ST191..UKP

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-05030

AT190,CT190,ST191..UKP

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-05030

AT190,CT190,ST191..UKP

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-05010

AT190,CT190,ST191..UKP

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-05010

AT190,CT190,ST191..UKP

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20340

AT190,CT190,ST191..UKP..LHD

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-20500

AT190,CT190,ST191..UKP

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-20380

AT190,CT190,ST191..UKP

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-20291

AT190,CT190,ST191..UKP

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-20351

AT190,CT190,ST191..UKP

 1
Common parts
90119-06746
90129-08007
90179-06158
90461-06119
90468-08035
90949-01806
91651-B0614
91656-A0625
