CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP

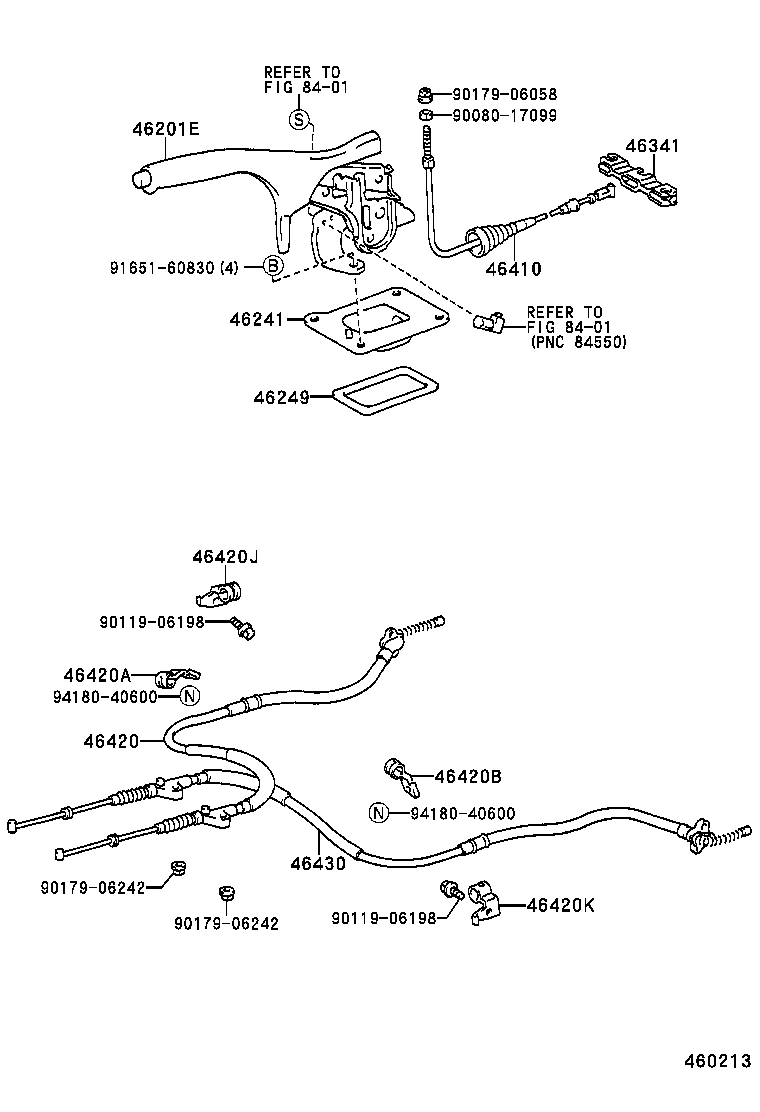

Click highlighted areas on diagram

diagram 46201E 46241 46249 46341 46410 46420 46420A 46420B 46420J 46420K 46430 8401 8401 9008017099 9011906198 9011906198 9017906058 9017906242 9017906242 9165160830 9418040600 9418040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-05020C0

AT190,CT190,ST191..UKP..LHD

BLACK,TRIM1#,8#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20130

AT190,CT190,ST191..UKP..LHD

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-05010

AT190,CT190,ST191..UKP

 1
46341 - EQUALIZER, PARKING BRAKE
46341-05010

AT190,CT190,ST191..UKP

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-05010

AT190,CT190,ST191..UKP

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-05010

AT190,CT190,ST191..UKP

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01771

AT190,CT190,ST191..UKP

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01772

AT190,CT190,ST191..UKP

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46451-20020

AT190,CT190,ST191..UKP

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46451-20030

AT190,CT190,ST191..UKP

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-05010

AT190,CT190,ST191..UKP

 1
Common parts
90080-17099
90119-06198
90179-06058
90179-06242
91651-60830
94180-40600
Linked diagrams
8401
