CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP..LHD

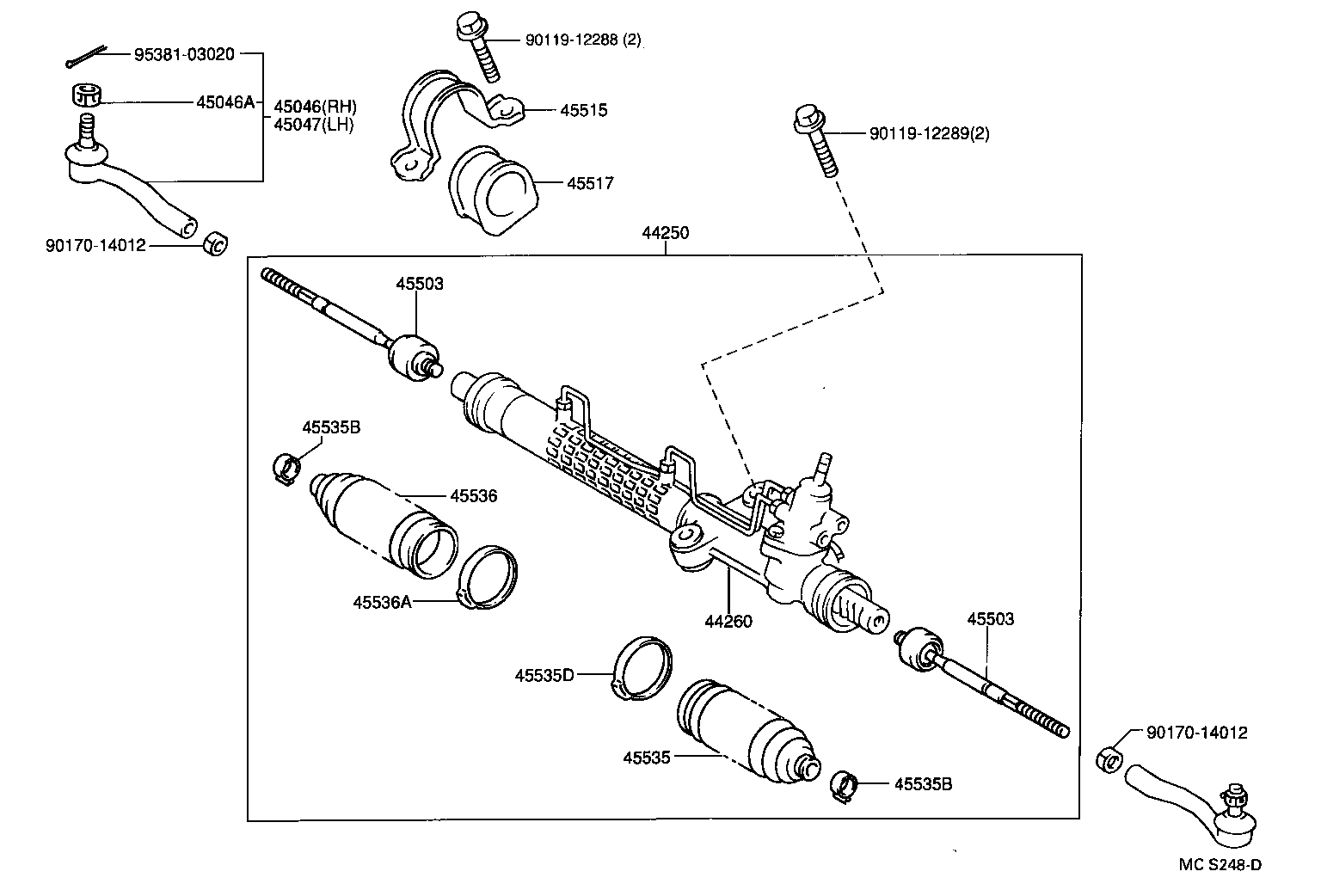

Click highlighted areas on diagram

diagram 44250 44260 45046 45046A 45047 45503 45503 45515 45517 45535 45535B 45535B 45535D 45536 45536A 9011912288 9011912289 9017014012 9017014012 9538103020
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-05041

AT190,CT190,ST191..UKP..LHD

 1
44250-05040

AT190,CT190,ST191..UKP..LHD

 1
44260 - CYLINDER ASSY, POWER STEERING POWER
44260-05040

AT190,CT190,ST191..UKP..LHD

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-09050

AT190,CT190,ST191..UKP

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AT190,CT190,ST191..UKP

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09010

AT190,CT190,ST191..UKP

 1
45503 - END SUB-ASSY, STEERING RACK
45503-05010

AT190,CT190,ST191..UKP

 2
45503 - END SUB-ASSY, STEERING RACK
45503-05010

AT190,CT190,ST191..UKP

 2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-20270

CT190..UKP

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-05020

AT190,CT190,ST191..UKP

 1
45535 - BOOT, STEERING RACK, NO.1
45535-05010

AT190,CT190,ST191..UKP

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46222

AT190,CT190,ST191..UKP

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46222

AT190,CT190,ST191..UKP

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90080-46221

AT190,CT190,ST191..UKP

 1
45536 - BOOT, STEERING RACK, NO.2
45535-05010

AT190,CT190,ST191..UKP

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90080-46221

AT190,CT190,ST191..UKP

 1
Common parts
90119-12288
90119-12289
90170-14012
95381-03020
