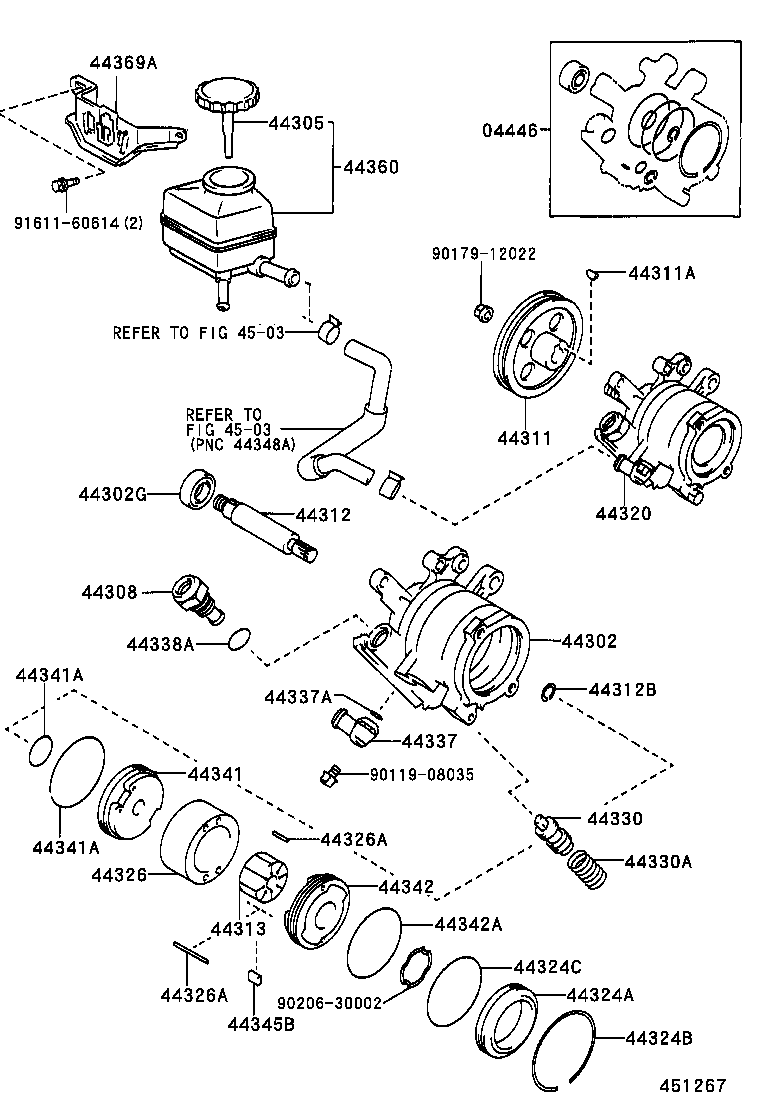

CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)
(9601- )CT190..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-27011 |
CT190..UKP |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12041 |
CT190..UKP |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
CT190..UKP |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-20041 |
CT190,ST191..UKP |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-20020 |
CT190..UKP |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12030 |
CT190..UKP |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
CT190..UKP |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
CT190..UKP |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
CT190..UKP |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22080 |
CT190..UKP MARK 4 |
1 | ||
| 44313-22060 |
CT190..UKP MARK 2 |
1 | ||
| 44313-22040 |
CT190..UKP NO MARK |
1 | ||
| 44313-22050 |
CT190..UKP MARK 1 |
1 | ||
| 44313-22070 |
CT190..UKP MARK 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-20400 |
CT190..UKP |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
CT190..UKP |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
CT190..UKP |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53006 |
CT190..UKP |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12110 |
CT190..UKP NO MARK |
1 | ||
| 44325-12140 |
CT190..UKP MARK 3 |
1 | ||
| 44325-12150 |
CT190..UKP MARK 4 |
1 | ||
| 44325-12130 |
CT190..UKP MARK 2 |
1 | ||
| 44325-12120 |
CT190..UKP MARK 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
CT190..UKP L=28,OD=4.0 |
1 | ||
| 90250-04049 |
CT190..UKP L=43,OD=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
CT190..UKP L=28,OD=4.0 |
1 | ||
| 90250-04049 |
CT190..UKP L=43,OD=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-35171 |
CT190..UKP MARK E |
1 | ||
| 44330-35141 |
CT190..UKP MARK B |
1 | ||
| 44330-35181 |
CT190..UKP MARK F |
1 | ||
| 44330-35131 |
CT190..UKP MARK A |
1 | ||
| 44330-35161 |
CT190..UKP MARK D |
1 | ||
| 44330-35151 |
CT190..UKP MARK C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
CT190..UKP |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12010 |
CT190..UKP |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
CT190..UKP |
1 | ||
| 90301-11016 |
CT190..UKP |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 |
CT190..UKP ID=19.2,OD=22.3 |
1 | ||
| 90301-19003 |
CT190..UKP ID=19.5,OD=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
CT190..UKP |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
CT190..UKP INNER |
1 | ||
| 90301-52001 |
CT190..UKP OUTER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
CT190..UKP INNER |
1 | ||
| 90301-52001 |
CT190..UKP OUTER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
CT190..UKP |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
CT190..UKP |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12030 |
CT190..UKP L=14.993 |
10 | ||
| 44345-12010 |
CT190..UKP L=14.997 |
10 | ||
| 44345-12050 |
CT190..UKP L=14.989 |
10 | ||
| 44345-12040 |
CT190..UKP L=14.991 |
10 | ||
| 44345-12020 |
CT190..UKP L=14.995 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-20160 |
CT190..UKP |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-20020 |
CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 90119-08035 | ||||
| 90179-12022 | ||||
| 90206-30002 | ||||
| 91611-60614 | ||||
| Linked diagrams | ||||
| 4503 | ||||
