CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

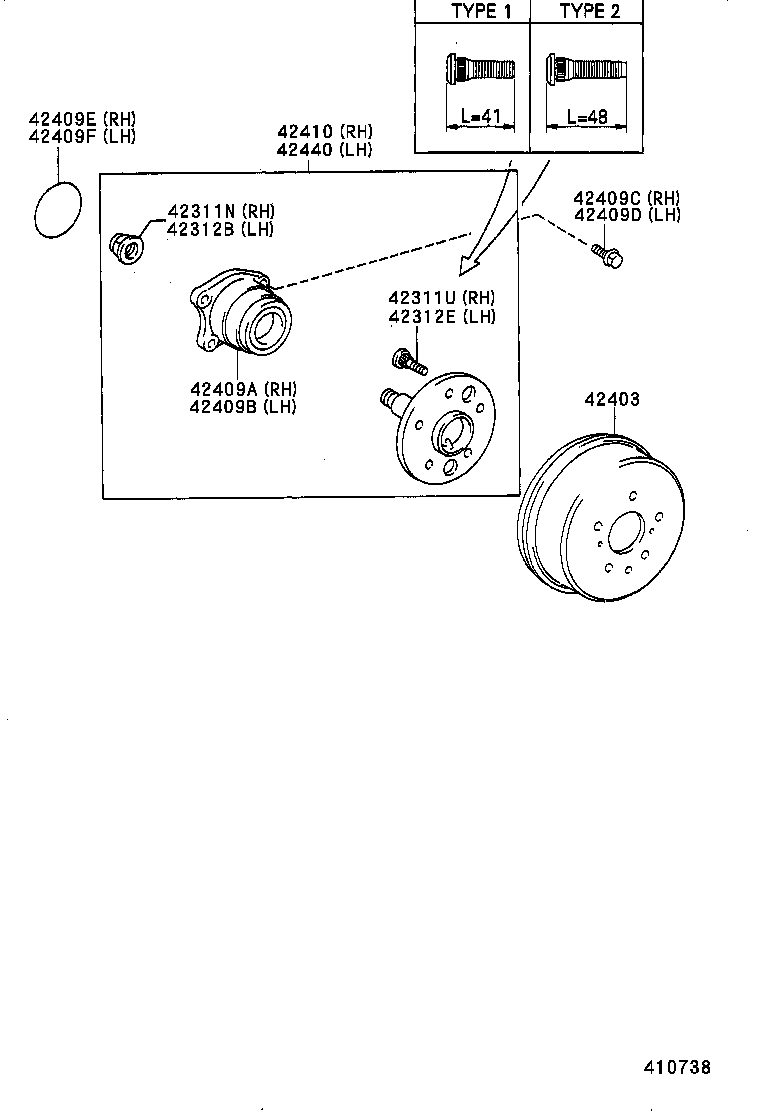

Click highlighted areas on diagram

diagram 42311N 42311U 42312B 42312E 42403 42409A 42409B 42409C 42409D 42409E 42409F 42410 42440
Part # Description Qty Price
42311N - NUT (FOR REAR AXLE SHAFT RH)
90179-20017

AT190,CT190,ST191..UKP

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

AT190,CT190,ST191..UKP

 5
90942-02047

AT190,CT190,ST191..UKP

 5
42312B - NUT (FOR REAR AXLE SHAFT LH)
90179-20017

AT190,CT190,ST191..UKP

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

AT190,CT190,ST191..UKP

 5
90942-02049

AT190,CT190,ST191..UKP

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-05010

AT190,CT190,ST191..UKP

 2
42409A - BEARING SUB-ASSY, REAR AXLE, RH
42409-05010

AT190,CT190,ST191..UKP

 1
42409B - BEARING SUB-ASSY, REAR AXLE, LH
42409-05010

AT190,CT190,ST191..UKP

 1
42409C - BOLT (FOR REAR AXLE BEARING RH)
90105-10124

AT190,CT190,ST191..UKP

 4
42409D - BOLT (FOR REAR AXLE BEARING LH)
90105-10124

AT190,CT190,ST191..UKP

 4
42409E - RING, O (FOR REAR AXLE BEARING RH)
90301-63003

AT190,CT190,ST191..UKP

 1
42409F - RING, O (FOR REAR AXLE BEARING LH)
90301-63003

AT190,CT190,ST191..UKP

 1
42410 - HUB & BEARING ASSY, REAR AXLE, RH
42410-05010

AT190,CT190,ST191..UKP

 1
42440 - HUB & BEARING ASSY, REAR AXLE, LH
42410-05010

AT190,CT190,ST191..UKP

 1
