Toyota Corona sed (ukp) CT190 SHIFT LEVER & RETAINER

CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997

Engine 2CT

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9601- )UKP..MTM

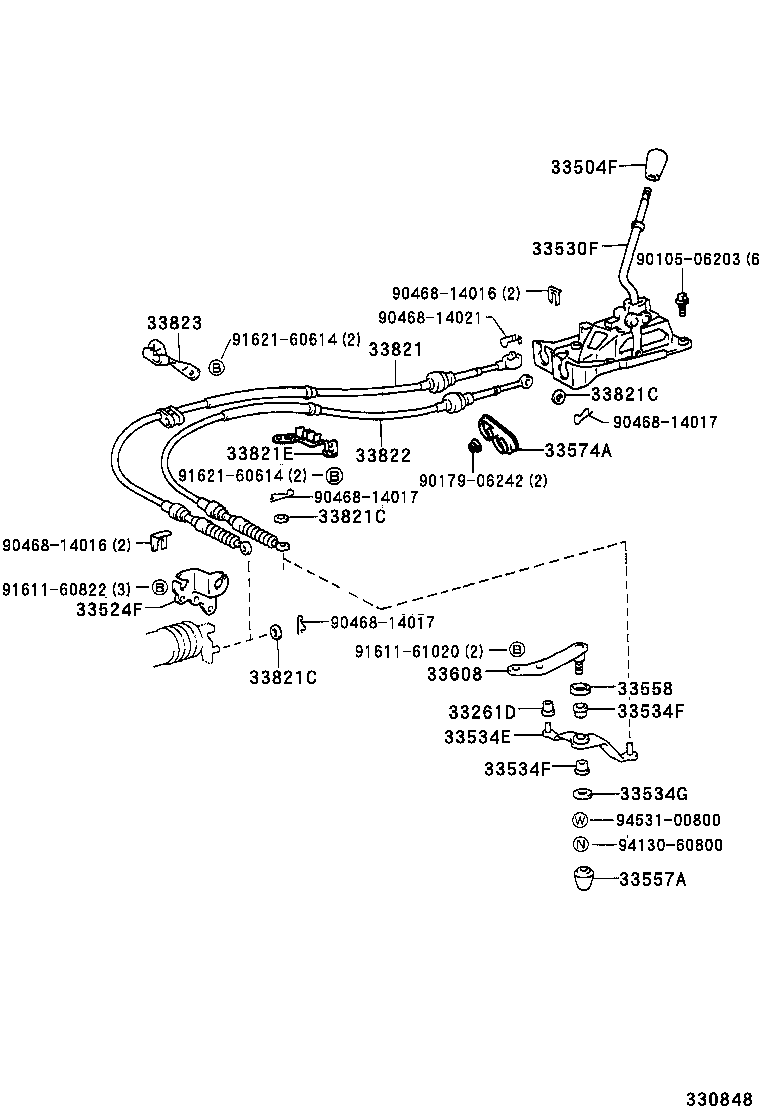

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-05010C0	AT190,CT190,ST191..UKP..MTM BLACK,TRIM1#,8#	01/1996 - 10/1997	1
33504-05020C0	AT190,CT190,ST191..UKP..MTM LEATHER,BLACK,TRIM1#,8#	01/1996 - 10/1997	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-05020	AT190,CT190,ST191..UKP..LHD..MTM	01/1996 - 10/1997	1
33534E - CRANK, SELECTING BELL, NO.2
33534-33010	CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	2
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	2
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-32010	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-32010	CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-20350	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33608-33010	CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-05030	CT190..UKP	01/1996 - 10/1997	1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08023	AT190,CT190,ST191..UKP..MTM SHIFT LEVER SIDE	01/1996 - 10/1997	1
90201-08077	AT190,CT190,ST191..UKP..MTM OD=30,TRANSAXLE SIDE	01/1996 - 10/1997	2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08023	AT190,CT190,ST191..UKP..MTM SHIFT LEVER SIDE	01/1996 - 10/1997	1
90201-08077	AT190,CT190,ST191..UKP..MTM OD=30,TRANSAXLE SIDE	01/1996 - 10/1997	2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08023	AT190,CT190,ST191..UKP..MTM SHIFT LEVER SIDE	01/1996 - 10/1997	1
90201-08077	AT190,CT190,ST191..UKP..MTM OD=30,TRANSAXLE SIDE	01/1996 - 10/1997	2
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01805	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-05030	CT190..UKP	01/1996 - 10/1997	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-05020	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
Common parts
90105-06203
90179-06242
90468-14016
90468-14017
90468-14021
91611-60822
91611-61020
91621-60614
94130-60800
94531-00800

(9601- )CT190,ST191..UKP..MTM

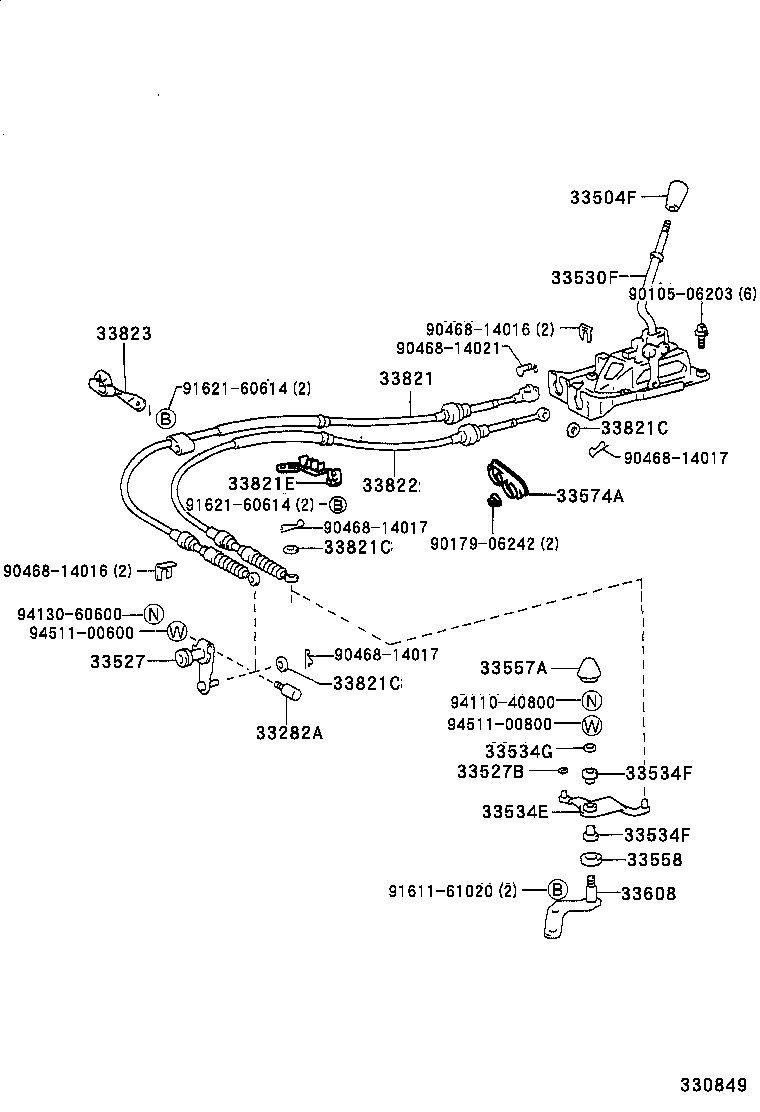

Click highlighted areas on diagram

Part #	Description	Period	Qty
33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER)
33282-35010	CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-05010C0	AT190,CT190,ST191..UKP..MTM BLACK,TRIM1#,8#	01/1996 - 10/1997	1
33504-05020C0	AT190,CT190,ST191..UKP..MTM LEATHER,BLACK,TRIM1#,8#	01/1996 - 10/1997	1
33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)
33527-32010	CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33527B - BUSH (FOR CONTROL SHIFT LEVER)
33557-33010	CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-05020	AT190,CT190,ST191..UKP..LHD..MTM	01/1996 - 10/1997	1
33534E - CRANK, SELECTING BELL, NO.2
33534-33010	CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	2
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	2
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-32010	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-32010	CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-20350	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33608-33010	CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-05030	CT190..UKP	01/1996 - 10/1997	1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08023	AT190,CT190,ST191..UKP..MTM SHIFT LEVER SIDE	01/1996 - 10/1997	1
90201-08077	AT190,CT190,ST191..UKP..MTM OD=30,TRANSAXLE SIDE	01/1996 - 10/1997	2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08023	AT190,CT190,ST191..UKP..MTM SHIFT LEVER SIDE	01/1996 - 10/1997	1
90201-08077	AT190,CT190,ST191..UKP..MTM OD=30,TRANSAXLE SIDE	01/1996 - 10/1997	2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08023	AT190,CT190,ST191..UKP..MTM SHIFT LEVER SIDE	01/1996 - 10/1997	1
90201-08077	AT190,CT190,ST191..UKP..MTM OD=30,TRANSAXLE SIDE	01/1996 - 10/1997	2
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01805	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-05030	CT190..UKP	01/1996 - 10/1997	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-05020	AT190,CT190,ST191..UKP..MTM	01/1996 - 10/1997	1
Common parts
90105-06203
90179-06242
90468-14016
90468-14017
90468-14021
91611-61020
91621-60614
94110-40800
94130-60600
94511-00600
94511-00800

CT190L-BEMNX (1996)

(9601- )UKP..MTM

(9601- )CT190,ST191..UKP..MTM
