CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )CT190,ST191..UKP

Click highlighted areas on diagram

S50,S55

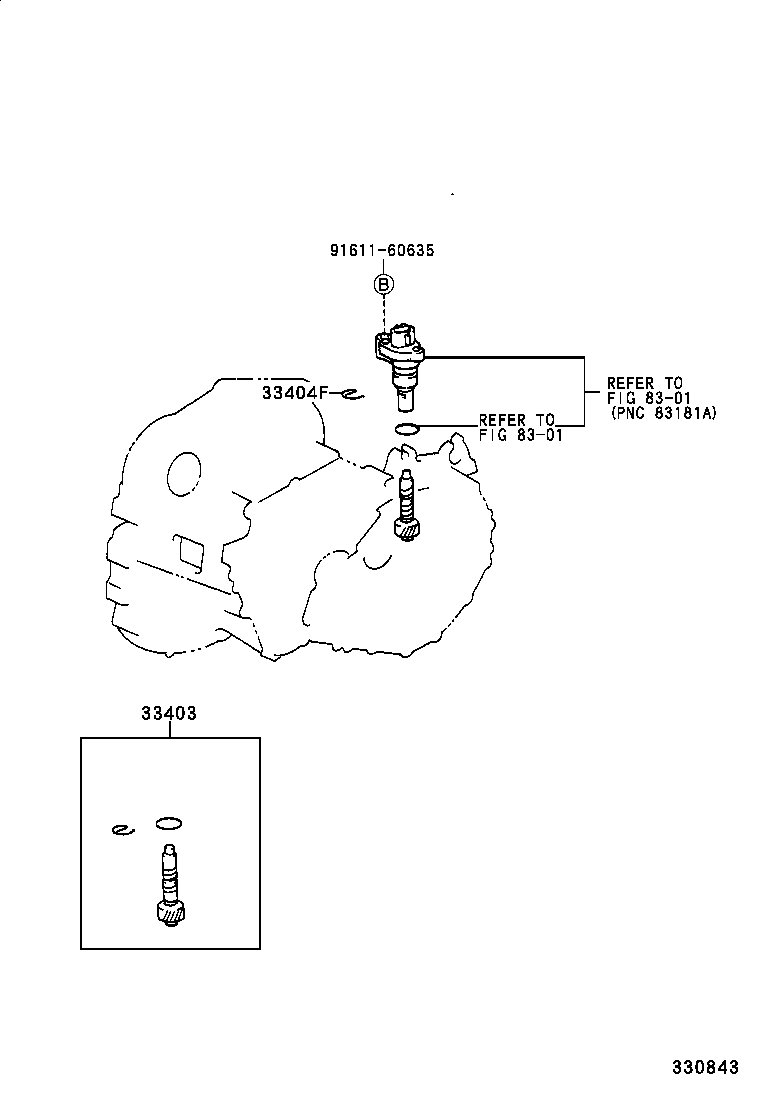

diagram 33403 33404F 8301 8301 9161160635
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19505

CT190,ST191..UKP..MTM

N=22,MARK 22:25

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AT190,CT190,ST191..UKP..MTM

 1
Common parts
91611-60635
Linked diagrams
8301
