CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)2CT..UKP

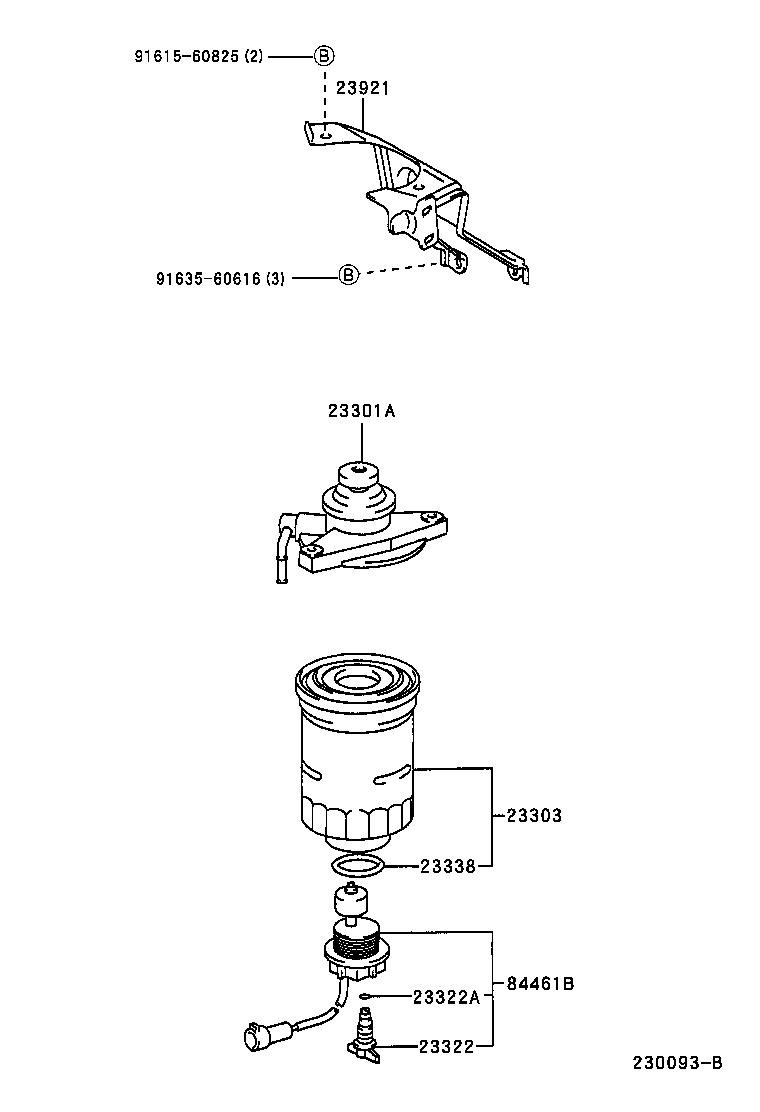

Click highlighted areas on diagram

diagram 23301A 23303 23322 23322A 23338 23921 84461B 9161560825 9163560616
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-64450

2CT..CT190..UKP

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64450

2CT..CT190..UKP

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

2CT..CT190..UKP

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2CT..CT190..UKP

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2CT..CT190..UKP

 1
23921 - SUPPORT, FUEL FILTER
23921-64240

2CT..CT190..UKP

 1
84461B - SWITCH, LEVEL WARNING
84461-20090

CT190..UKP

 1
Common parts
91615-60825
91635-60616
