CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)2CT..UKP

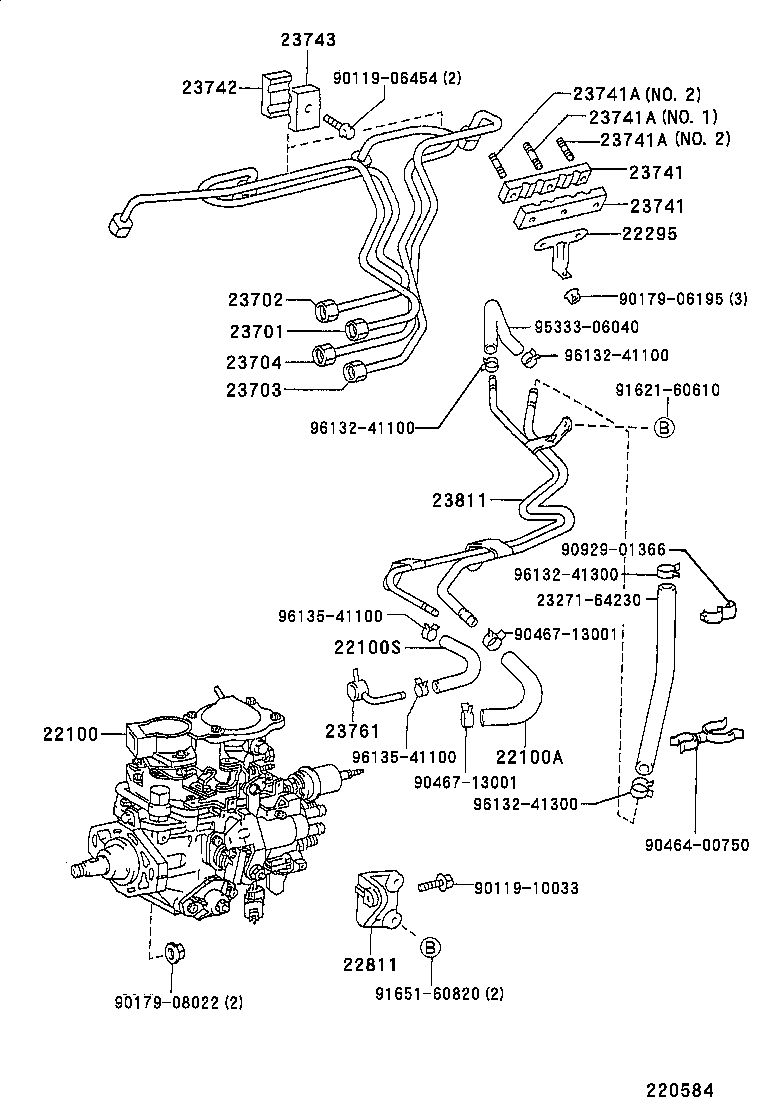

Click highlighted areas on diagram

diagram 22100 22100A 22100S 22295 22811 2327164230 23701 23702 23703 23704 23741 23741 23741A 23741A 23741A 23742 23743 23761 23811 9011906454 9011910033 9017906195 9017908022 9046400750 9046713001 9046713001 9092901366 9162160610 9165160820 9533306040 9613241100 9613241100 9613241300 9613241300 9613541100 9613541100
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-6D830

2CT..CT190..UKP

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23273-64030

2CT..CT190..UKP

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
95333-06020

2CT..CT190..UKP

 1
22295 - BRACKET, INJECTION PUMP CONNECTOR
22295-64011

2CT..CT190..UKP

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-64020

2CT..CT190..UKP

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-64110

2CT..CT190..UKP

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-64110

2CT..CT190..UKP

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-64090

2CT..CT190..UKP

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-64110

2CT..CT190..UKP

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64010

2CT..CT190..UKP

 2
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64010

2CT..CT190..UKP

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
92122-60622

2CT..CT190..UKP

NO.2

 2
90116-06275

2CT..CT190..UKP

NO.1

 1
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
92122-60622

2CT..CT190..UKP

NO.2

 2
90116-06275

2CT..CT190..UKP

NO.1

 1
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
92122-60622

2CT..CT190..UKP

NO.2

 2
90116-06275

2CT..CT190..UKP

NO.1

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23741-54010

2CT..CT190..UKP

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23742-54010

2CT..CT190..UKP

 2
23761 - PIPE, NOZZLE LEAKAGE, NO.1
23764-64041

2CT..CT190..UKP

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-64100

2CT..CT190..UKP

 1
Common parts
23271-64230
90119-06454
90119-10033
90179-06195
90179-08022
90464-00750
90467-13001
90929-01366
91621-60610
91651-60820
95333-06040
96132-41100
96132-41300
96135-41100
