CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )2CT..UKP

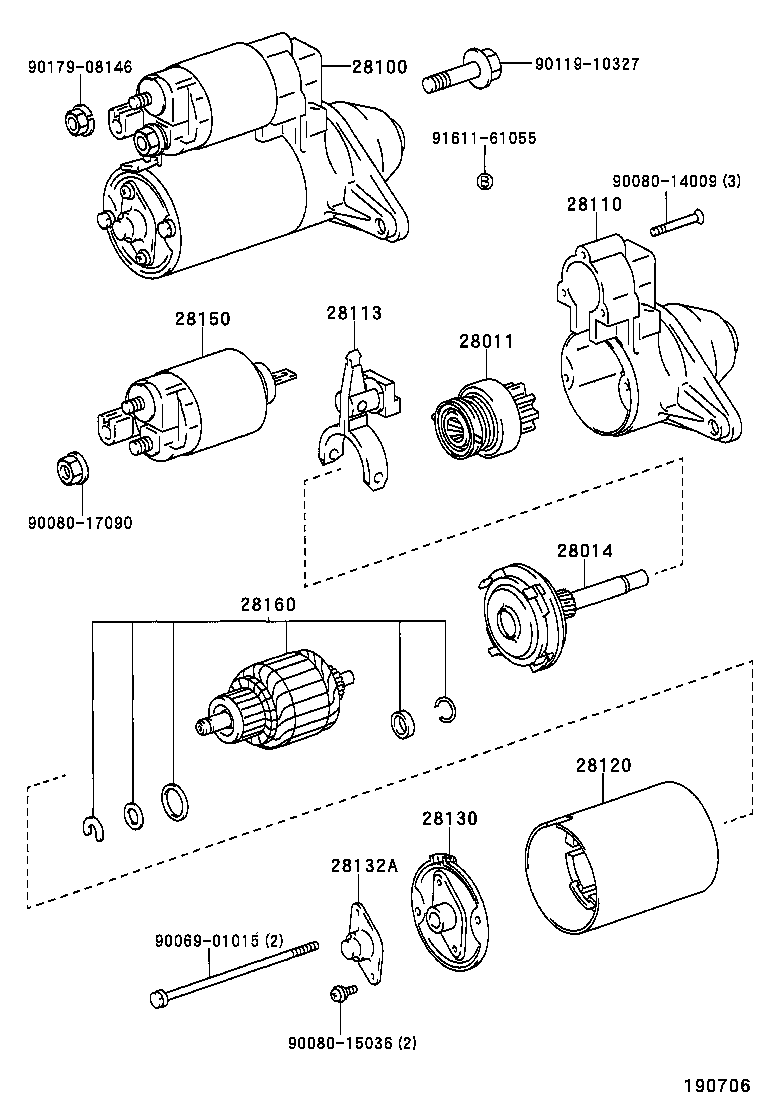

Click highlighted areas on diagram

12V 2.2KW(BOSCH)

diagram 28011 28014 28100 28110 28113 28120 28130 28132A 28150 28160 9006901015 9008014009 9008015036 9008017090 9011910327 9017908146 9161161055
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0B010

2CT..CT190..UKP

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-0B010

2CT..CT190..UKP

 1
28100 - STARTER ASSY
28100-0B010

2CT..CT190..UKP

12V 2.2KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0B010

2CT..CT190..UKP

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0B010

2CT..CT190..UKP

 1
28120 - YOKE ASSY, STARTER
28120-0B010

2CT..CT190..UKP

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0B010

2CT..CT190..UKP

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-0B010

2CT..CT190..UKP

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0B010

2CT..CT190..UKP

 1
28160 - ARMATURE ASSY, STARTER
28160-0B010

2CT..CT190..UKP

 1
Common parts
90069-01015
90080-14009
90080-15036
90080-17090
90119-10327
90179-08146
91611-61055
