CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)2CT..UKP

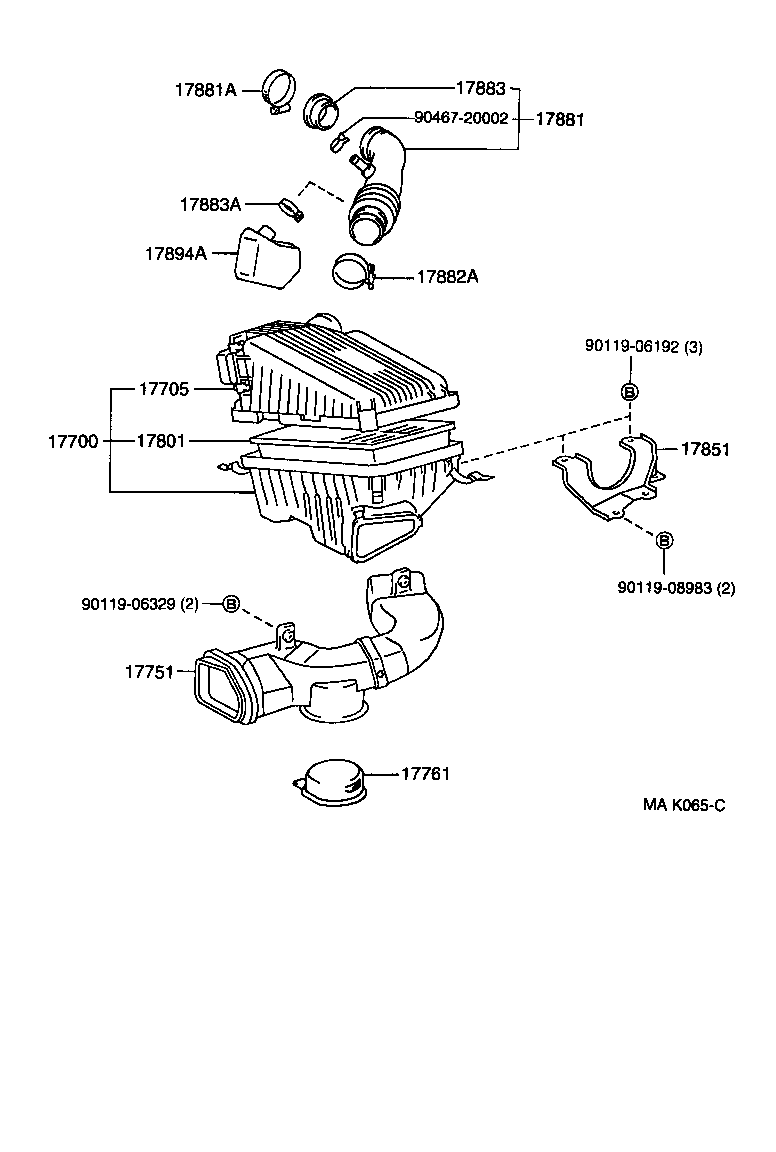

Click highlighted areas on diagram

diagram 17700 17705 17751 17761 17801 17851 17881 17881A 17882A 17883 17883A 17894A 9011906192 9011906329 9011908983 9046720002
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-0B010

2CT..CT190..UKP

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0B010

2CT..CT190..UKP

 1
17751 - INLET, AIR CLEANER, NO.1
17751-02031

2CT..CT190..UKP

 1
17761 - CAP, AIR CLEANER INLET
17761-0B010

2CT..CT190..UKP

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0B010

2CT..CT190..UKP

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-02010

2CT..CT190..UKP

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-64290

2CT..CT190..UKP

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-65007

2CT..CT190..UKP

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10730

2CT..CT190..UKP

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-64050

2CT..CT190..UKP

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10450

2CT..CT190..UKP

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-64050

2CT..CT190..UKP

 1
Common parts
90119-06192
90119-06329
90119-08983
90467-20002
