CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)2CT..UKP

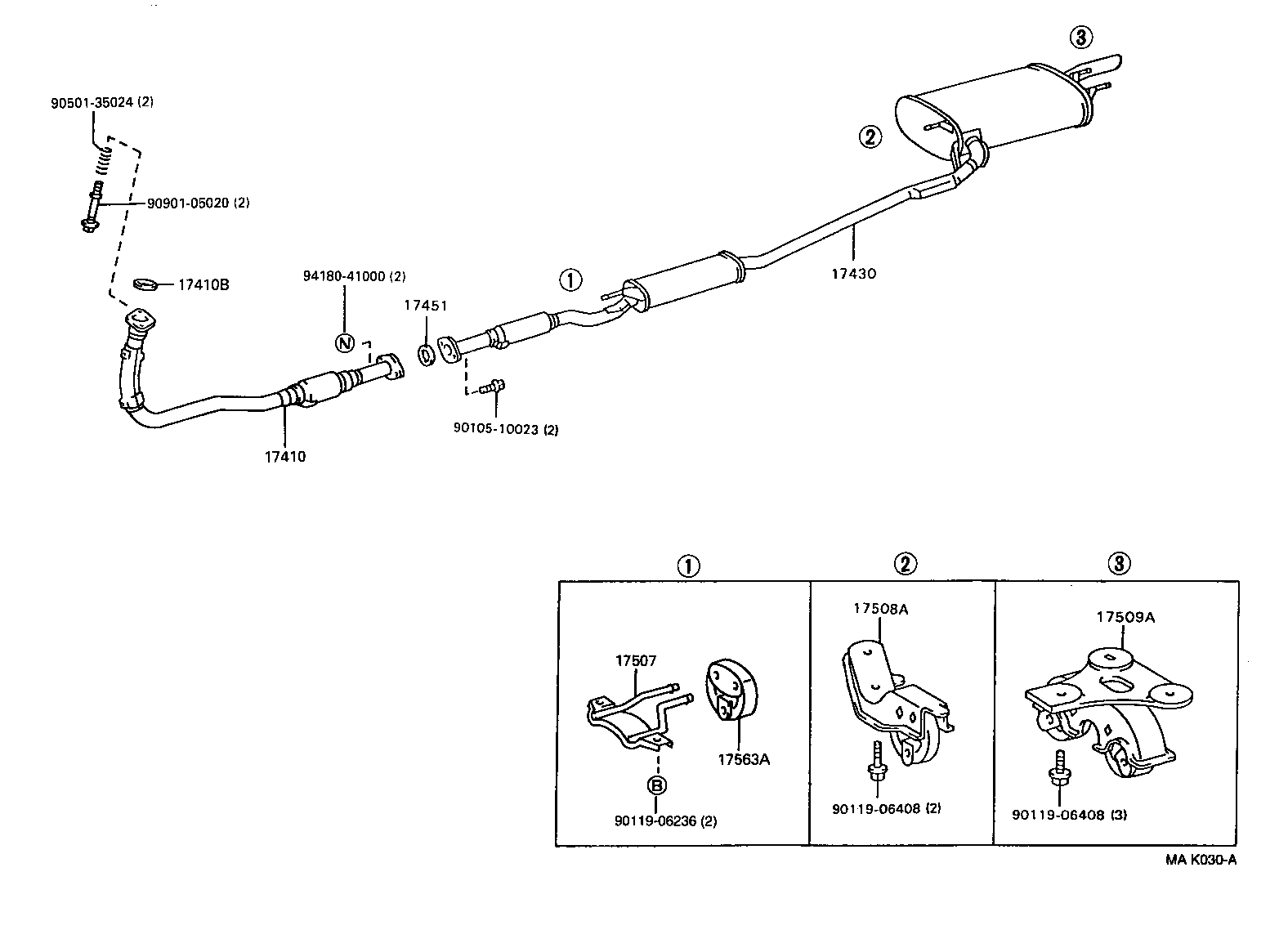

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17507 17508A 17509A 17563A 9010510023 9011906236 9011906408 9011906408 9050135024 9090105020 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0B010

2CT..CT190..UKP

 1
17410B - GASKET, EXHAUST PIPE
17451-64010

2CT..CT190..UKP

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0B020

2CT..CT190..UKP

 1
17451 - GASKET, EXHAUST PIPE
90917-06048

2CT..CT190..UKP

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-0B010

2CT..CT190..UKP

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74030

4AFE,2CT,3SFE..AT190,CT190,ST191..UKP

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74110

4AFE,2CT,3SFE..AT190,CT190,ST191..UKP

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-64180

2CT..CT190..UKP

 1
Common parts
90105-10023
90119-06236
90119-06408
90501-35024
90901-05020
94180-41000
