CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)

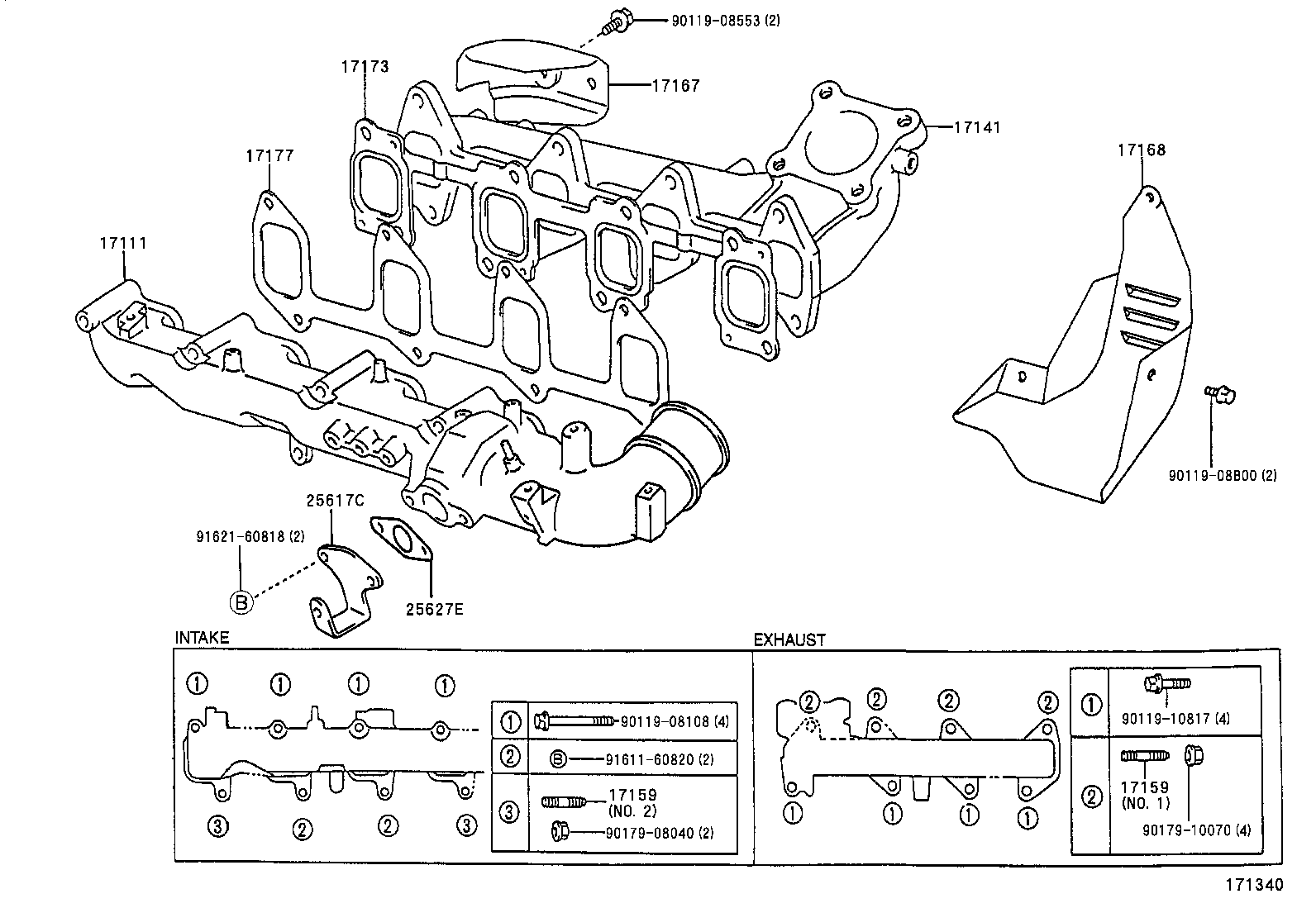

ILLUST NO. 1 OF 2(9601-9710)2CT..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-64140 |
2CT..CT190..UKP |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-64251 |
2CT..CT190..UKP |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-60820 |
2CT..CT190..UKP INTAKE MANIFOLD |
2 | ||
| 90126-10017 |
2CT..CT190..UKP EXHAUST MANIFOLD |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-60820 |
2CT..CT190..UKP INTAKE MANIFOLD |
2 | ||
| 90126-10017 |
2CT..CT190..UKP EXHAUST MANIFOLD |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-64031 |
2CT..CT190..UKP |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-64071 |
2CT..CT190..UKP |
1 | ||
| 17168-64070 |
2CT..CT190..UKP |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-64051 |
2CT..CT190..UKP |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-64020 |
2CT..CT190..UKP |
1 | ||
| 25617C - PLATE, EGR HOLE COVER | ||||
| 25617-64020 |
2CT..CT190..UKP |
1 | ||
| 25627E - GASKET, EGR VALVE | ||||
| 25627-64030 |
2CT..CT190..UKP |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08553 | ||||
| 90119-08B00 | ||||
| 90119-10817 | ||||
| 90179-08040 | ||||
| 90179-10070 | ||||
| 91611-60820 | ||||
| 91621-60818 | ||||

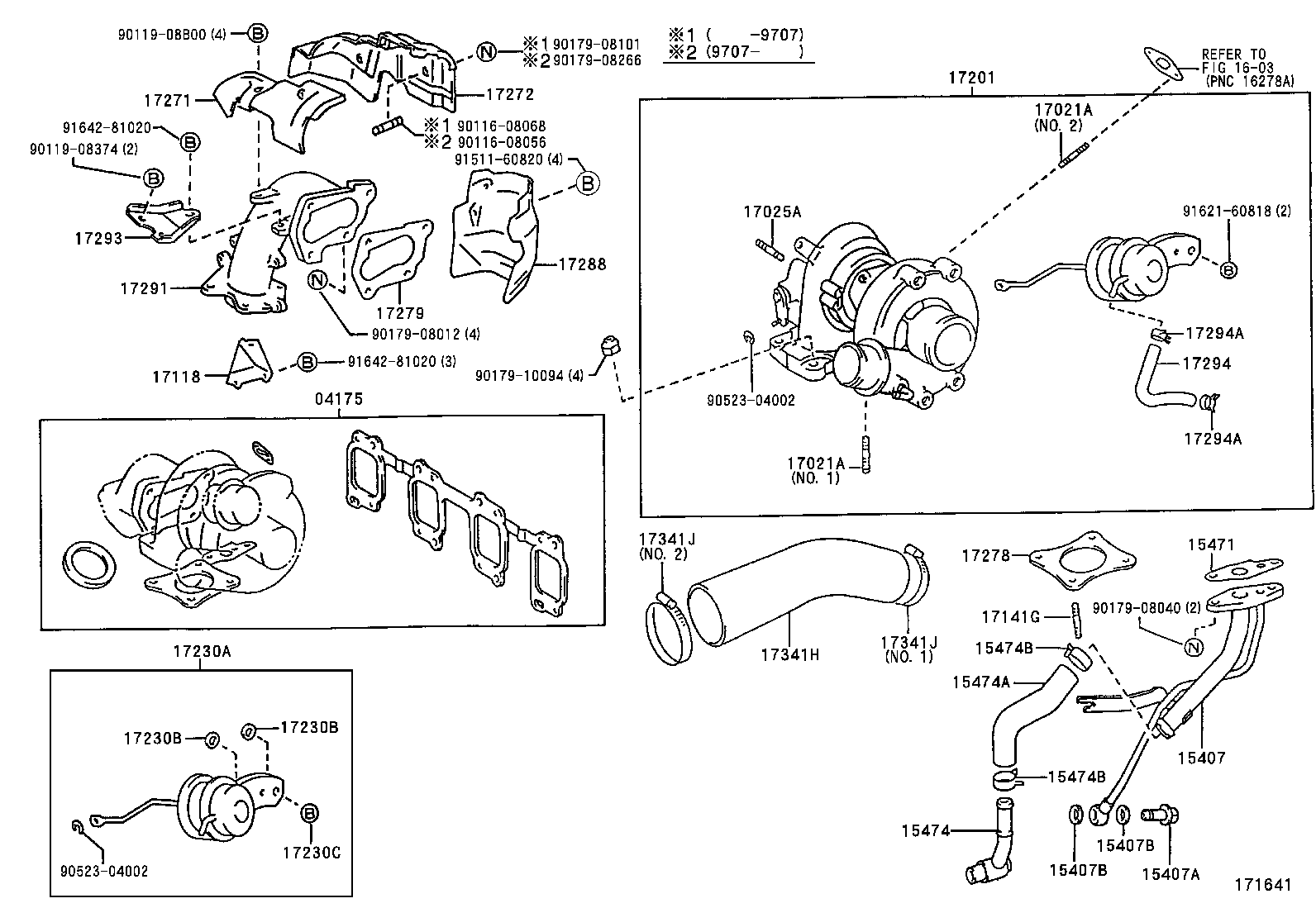

ILLUST NO. 2 OF 2(9601-9710)2CT..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-64051 |
2CT..CT190..UKP |
1 | ||
| 04175-64050 |
2CT..CT190..UKP |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-64061 |
2CT..CT190..UKP |
1 | ||
| 15407-64060 |
2CT..CT190..UKP |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10006 |
2CT..CT190..UKP |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10027 |
2CT..CT190..UKP |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10027 |
2CT..CT190..UKP |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-64010 |
2CT..CT190..UKP |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15476-64010 |
2CT..CT190..UKP |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-64020 |
2CT..CT190..UKP |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-23003 |
2CT..CT190..UKP |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-23003 |
2CT..CT190..UKP |
2 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
2CT..CT190..UKP NO.2 |
2 | ||
| 90116-06048 |
2CT..CT190..UKP NO.1 |
2 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
2CT..CT190..UKP NO.2 |
2 | ||
| 90116-06048 |
2CT..CT190..UKP NO.1 |
2 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08384 |
2CT..CT190..UKP |
4 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-64050 |
2CT..CT190..UKP |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10148 |
2CT..CT190..UKP |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-64110 |
2CT..CT190..UKP |
1 | ||
| 17230A - REPAIR ACTUAOR ASSY, W/BRACKET | ||||
| 17230-69075 |
2CT..CT190..UKP |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08086 |
2CT..CT190..UKP T=2.0 |
2 | ||
| 90201-08081 |
2CT..CT190..UKP T=0.5 |
2 | ||
| 90201-08082 |
2CT..CT190..UKP T=1.0 |
2 | ||
| 90201-08087 |
2CT..CT190..UKP T=3.0 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08086 |
2CT..CT190..UKP T=2.0 |
2 | ||
| 90201-08081 |
2CT..CT190..UKP T=0.5 |
2 | ||
| 90201-08082 |
2CT..CT190..UKP T=1.0 |
2 | ||
| 90201-08087 |
2CT..CT190..UKP T=3.0 |
2 | ||
| 17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET) | ||||
| 91621-60822 |
2CT..CT190..UKP |
2 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-64071 |
2CT..CT190..UKP |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17272-64041 |
2CT..CT190..UKP |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-64030 |
2CT..CT190..UKP |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-64020 |
2CT..CT190..UKP |
1 | ||
| 17279-55011 |
2CT..CT190..UKP |
1 | ||
| 17288 - INSULATOR, TURBO, NO.3 | ||||
| 17288-64011 |
2CT..CT190..UKP |
1 | ||
| 17288-64010 |
2CT..CT190..UKP |
1 | ||
| 17288-64012 |
2CT..CT190..UKP |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-64090 |
2CT..CT190..UKP |
1 | ||
| 17291-64091 |
2CT..CT190..UKP |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-64060 |
2CT..CT190..UKP |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-17010 |
2CT..CT190..UKP |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
2CT..CT190..UKP |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
2CT..CT190..UKP |
2 | ||
| 17341H - HOSE, AIR | ||||
| 17341-64080 |
2CT..CT190..UKP |
1 | ||
| 17341J - CLAMP, HOSE | ||||
| 90460-65004 |
2CT..CT190..UKP NO.2 |
1 | ||
| 90460-57002 |
2CT..CT190..UKP NO.1 |
1 | ||
| 17341J - CLAMP, HOSE | ||||
| 90460-65004 |
2CT..CT190..UKP NO.2 |
1 | ||
| 90460-57002 |
2CT..CT190..UKP NO.1 |
1 | ||
| Common parts | ||||
| 90116-08056 | ||||
| 90116-08068 | ||||
| 90119-08374 | ||||
| 90119-08B00 | ||||
| 90179-08012 | ||||
| 90179-08040 | ||||
| 90179-08101 | ||||
| 90179-08266 | ||||
| 90179-10094 | ||||
| 90523-04002 | ||||
| 91511-60820 | ||||
| 91621-60818 | ||||
| 91642-81020 | ||||
| Linked diagrams | ||||
| 1603 | ||||
