CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)
ILLUST NO. 1 OF 2(9601-9710)2CT..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11182B - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-64021 |
2CT..CT190..UKP |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-64070 |
2CT..CT190..UKP |
1 | ||
| 16027-64071 |
2CT..CT190..UKP |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-64010 |
2CT..CT190..UKP |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64110 |
2CT..CT190..UKP |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2CT..CT190..UKP |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2CT..CT190..UKP |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53050 |
2CT..CT190..UKP |
1 | ||
| 90404-53075 |
2CT..CT190..UKP |
1 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53050 |
2CT..CT190..UKP |
1 | ||
| 90404-53075 |
2CT..CT190..UKP |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64110 |
2CT..CT190..UKP |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2CT..CT190..UKP |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2CT..CT190..UKP |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64061 |
2CT..CT190..UKP |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
2CT..CT190..UKP |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-64061 |
2CT..CT190..UKP |
1 | ||
| 16284-64060 |
2CT..CT190..UKP |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
2CT..CT190..UKP |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
2CT..CT190..UKP |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 99556-10200 |
2CT..CT190..UKP *H,L=180 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
2CT..CT190..UKP |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
2CT..CT190..UKP |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-64010 |
2CT..CT190..UKP |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64020 |
2CT..CT190..UKP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
2CT..CT190..UKP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2CT..CT190..UKP *WAX 82-95 |
1 | ||
| 16361 - FAN | ||||
| 16361-0B010 |
2CT..CT190..UKP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0B010 |
2CT..CT190..UKP |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64080 |
2CT..CT190..UKP |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
2CT..CT190..UKP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0B010 |
2CT..CT190..UKP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0B010 |
2CT..CT190..UKP |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90069-16004 |
2CT..CT190..UKP |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2CT..CT190..UKP |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2CT..CT190..UKP |
2 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 90069-16005 |
2CT..CT190..UKP |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-02040 |
2CT..CT190..UKP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0B010 |
2CT..CT190..UKP |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-64130 |
2CT..CT190..UKP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64100 |
2CT..CT190..UKP |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0B010 |
2CT..CT190..UKP |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2CT..CT190..UKP ENGINE SIDE |
1 | ||
| 90467-34003 |
2CT..CT190..UKP RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2CT..CT190..UKP ENGINE SIDE |
1 | ||
| 90467-34003 |
2CT..CT190..UKP RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0B010 |
2CT..CT190..UKP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
2CT..CT190..UKP RADIATOR SIDE |
1 | ||
| 90467-37002 |
2CT..CT190..UKP INLET SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
2CT..CT190..UKP RADIATOR SIDE |
1 | ||
| 90467-37002 |
2CT..CT190..UKP INLET SIDE |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-02010 |
2CT..CT190..UKP |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-0B010 |
2CT..CT190..UKP |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90069-02057 | ||||
| 90080-46197 | ||||
| 90119-08493 | ||||
| 90119-08908 | ||||
| 90119-08B20 | ||||
| 90179-06290 | ||||
| 90339-05018 | ||||
| 90467-11009 | ||||
| 90467-22004 | ||||
| 90929-01017 | ||||
| 91511-60625 | ||||
| 91621-60818 | ||||
| 91621-60840 | ||||
| 91621-60865 | ||||
| 91621-B0816 | ||||
| 91631-60610 | ||||
| 91651-B0616 | ||||
| 91651-G0612 | ||||
| Linked diagrams | ||||
| 1709 | ||||

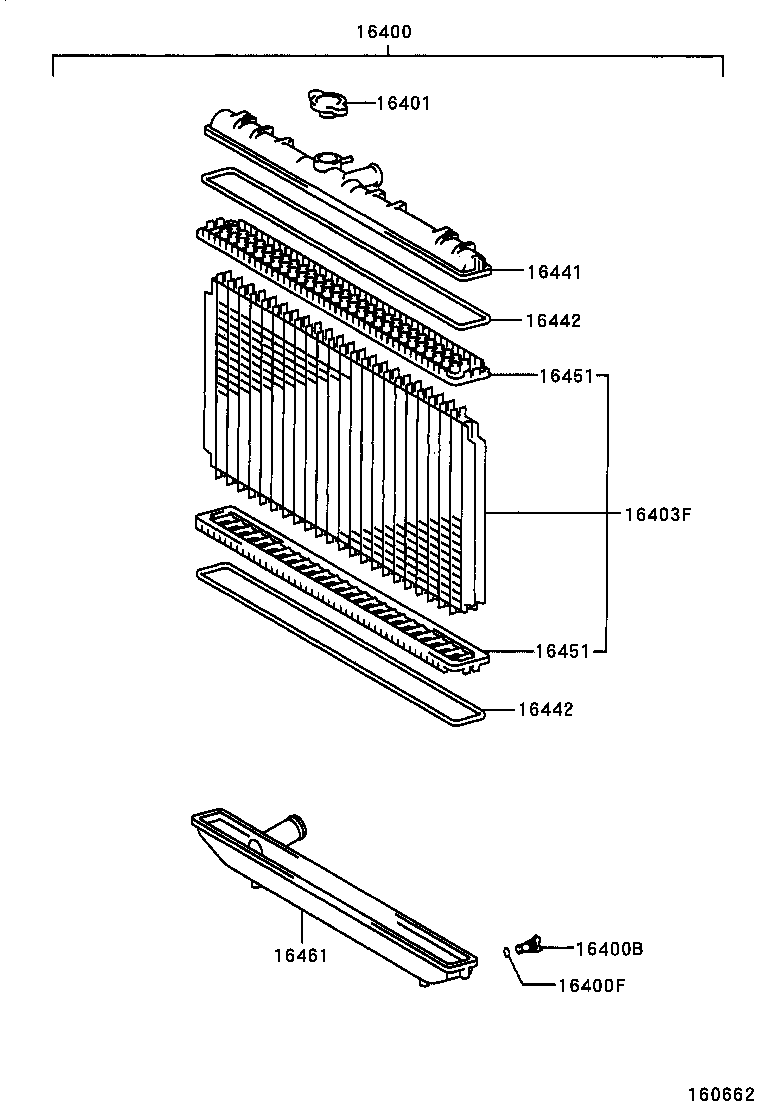

ILLUST NO. 2 OF 2(9601-9710)2CT..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-0B010 |
2CT..CT190..UKP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90080-34010 |
2CT..CT190..UKP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90080-30024 |
2CT..CT190..UKP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2CT..CT190..UKP |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-0B020 |
2CT..CT190..UKP |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-0B010 |
2CT..CT190..UKP |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-0B010 |
2CT..CT190..UKP |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-0B010 |
2CT..CT190..UKP |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-0B010 |
2CT..CT190..UKP |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-0B010 |
2CT..CT190..UKP |
2 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-0B020 |
2CT..CT190..UKP |
1 | ||
