CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)2CT..UKP

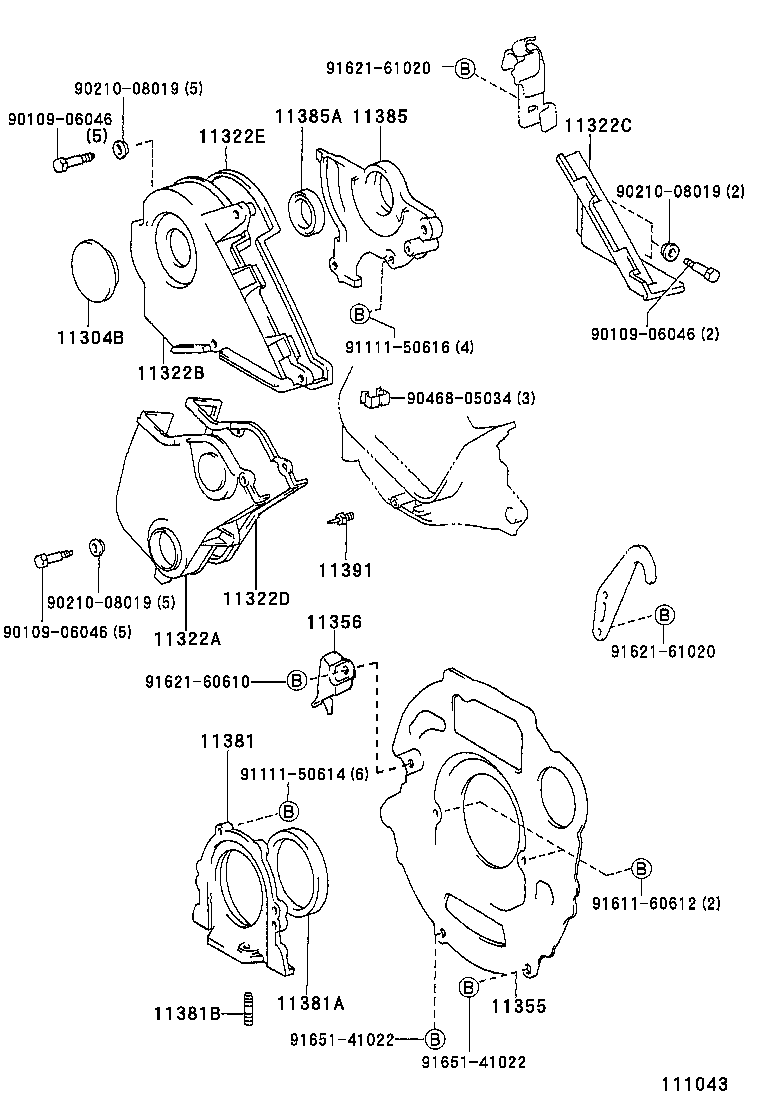

Click highlighted areas on diagram

diagram 11304B 11322A 11322B 11322C 11322D 11322E 11355 11356 11381 11381A 11381B 11385 11385A 11391 9010906046 9010906046 9010906046 9021008019 9021008019 9021008019 9046805034 9111150614 9111150616 9161160612 9162160610 9162161020 9162161020 9165141022 9165141022
Part # Description Qty Price
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01357

2CT..CT190..UKP

OD=64

 1
11322A - COVER, TIMING BELT, NO.1
11321-64020

2CT..CT190..UKP

 1
11322B - COVER, TIMING BELT, NO.2
11322-64010

2CT..CT190..UKP

 1
11322C - COVER, TIMING BELT, NO.3
11323-64011

2CT..CT190..UKP

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-64040

2CT..CT190..UKP

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-64020

2CT..CT190..UKP

 1
11355 - PLATE, REAR END
11355-64051

2CT..CT190..UKP

 1
11356 - PLATE, REAR END, NO.2
11356-64040

2CT..CT190..UKP

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-64012

2CT..CT190..UKP

 1
11381A - SEAL, ENGINE REAR OIL
90311-90008

2CT..CT190..UKP

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06134

2CT..CT190..UKP

 2
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-64011

2CT..CT190..UKP

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38044

2CT..CT190..UKP

 1
90311-38061

2CT..CT190..UKP

 1
11391 - POINTER, TIMING
11391-64010

2CT..CT190..UKP

 1
Common parts
90109-06046
90210-08019
90468-05034
91111-50614
91111-50616
91611-60612
91621-60610
91621-61020
91651-41022
