CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)

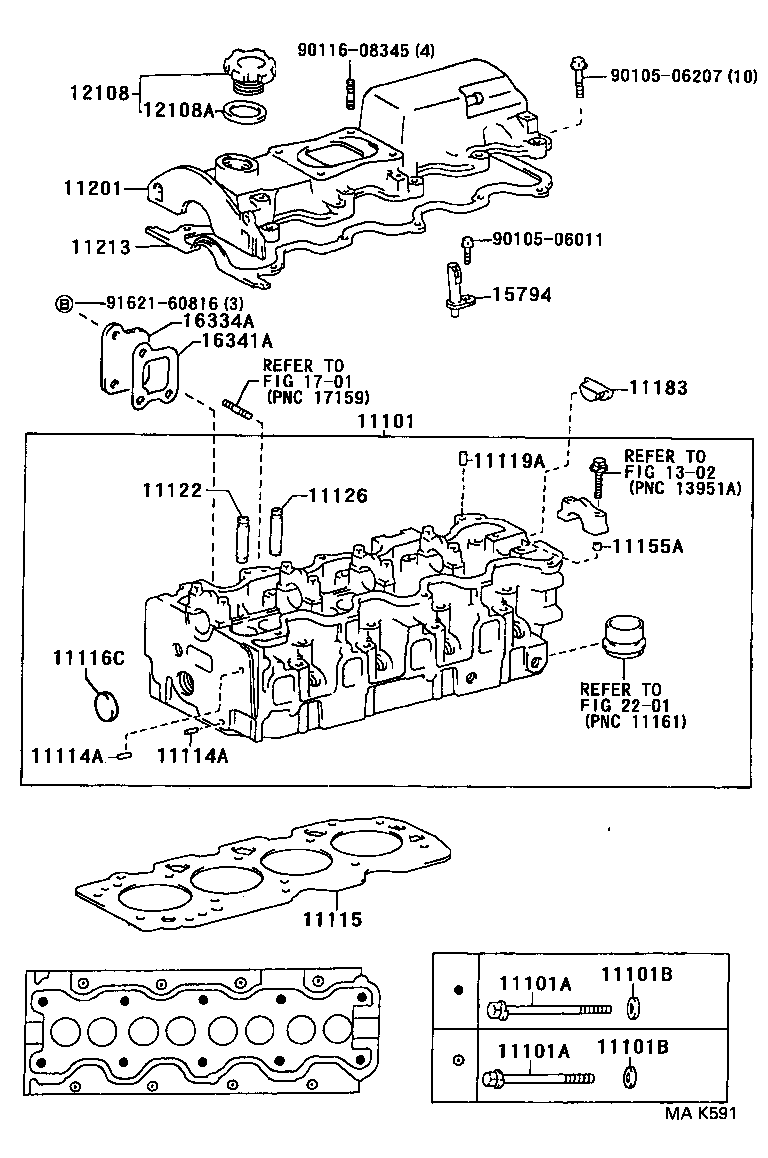

(9601-9705)2CT..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-64253 |
2CT..CT190..UKP |
1 | ||
| 11101-64251 |
2CT..CT190..UKP |
1 | ||
| 11101-64250 |
2CT..CT190..UKP |
1 | ||
| 11101-64252 |
2CT..CT190..UKP |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2CT..CT190..UKP *11-1.25PX145-53 |
10 | ||
| 90910-02097 |
2CT..CT190..UKP *11-1.25PX123-53 |
8 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2CT..CT190..UKP *11-1.25PX145-53 |
10 | ||
| 90910-02097 |
2CT..CT190..UKP *11-1.25PX123-53 |
8 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2CT..CT190..UKP |
18 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2CT..CT190..UKP |
18 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
2CT..CT190..UKP L=11,OD=6 |
3 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
2CT..CT190..UKP L=11,OD=6 |
3 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-64140 |
2CT..CT190..UKP |
1 | ||
| 11115-6414002 |
2CT..CT190..UKP MARK 2 |
1 | ||
| 11115-6414003 |
2CT..CT190..UKP MARK 3 |
1 | ||
| 11115-6414001 |
2CT..CT190..UKP MARK 1 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-10204 |
2CT..CT190..UKP PNC 11118A |
4 | ||
| 90430-12010 |
2CT..CT190..UKP PNC 11118C |
2 | ||
| 90430-33133 |
2CT..CT190..UKP PNC 11118B |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-10204 |
2CT..CT190..UKP PNC 11118A |
4 | ||
| 90430-12010 |
2CT..CT190..UKP PNC 11118C |
2 | ||
| 90430-33133 |
2CT..CT190..UKP PNC 11118B |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-10204 |
2CT..CT190..UKP PNC 11118A |
4 | ||
| 90430-12010 |
2CT..CT190..UKP PNC 11118C |
2 | ||
| 90430-33133 |
2CT..CT190..UKP PNC 11118B |
1 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-10005 |
2CT..CT190..UKP |
4 | ||
| 11118B - PLUG, STRAIGHT, NO.2 | ||||
| 90341-32070 |
2CT..CT190..UKP |
1 | ||
| 11118C - PLUG, STRAIGHT, NO.3 | ||||
| 90341-12013 |
2CT..CT190..UKP |
2 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06013 |
2CT..CT190..UKP L=16,OD=6 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-64010 |
2CT..CT190..UKP O/S 0.05 |
4 | ||
| 11122-64010 |
2CT..CT190..UKP STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-64030 |
2CT..CT190..UKP O/S 0.05 |
4 | ||
| 11126-64030 |
2CT..CT190..UKP STD |
4 | ||
| 11126-64010 |
2CT..CT190..UKP STD |
4 | ||
| 11127-64010 |
2CT..CT190..UKP O/S 0.05 |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2CT..CT190..UKP |
10 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-64010 |
2CT..CT190..UKP |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-64141 |
2CT..CT190..UKP |
1 | ||
| 11201-64140 |
2CT..CT190..UKP |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-64061 |
2CT..CT190..UKP |
1 | ||
| 11213-64060 |
2CT..CT190..UKP |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
2CT..CT190..UKP |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2CT..CT190..UKP |
1 | ||
| 15794 - NOZZLE, CYLINDER HEAD OIL | ||||
| 15794-64011 |
2CT..CT190..UKP |
1 | ||
| 16334A - COVER, WATER OUTLET HOUSING | ||||
| 16334-64010 |
2CT..CT190..UKP |
1 | ||
| 16341A - GASKET, WATER OUTLET | ||||
| 16341-64021 |
2CT..CT190..UKP |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-06207 | ||||
| 90116-08345 | ||||
| 91621-60816 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1701 | ||||
| 2201 | ||||

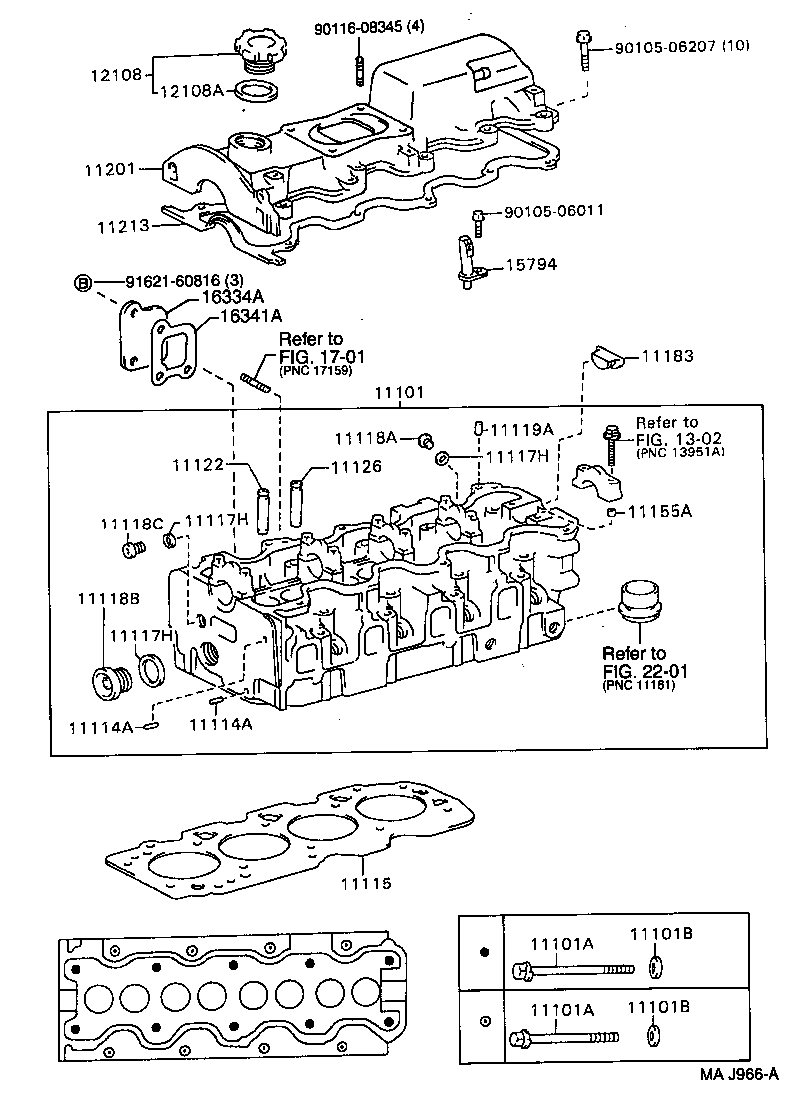

(9705-9710)2CT..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-64253 |
2CT..CT190..UKP |
1 | ||
| 11101-64251 |
2CT..CT190..UKP |
1 | ||
| 11101-64250 |
2CT..CT190..UKP |
1 | ||
| 11101-64252 |
2CT..CT190..UKP |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2CT..CT190..UKP *11-1.25PX145-53 |
10 | ||
| 90910-02097 |
2CT..CT190..UKP *11-1.25PX123-53 |
8 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2CT..CT190..UKP *11-1.25PX145-53 |
10 | ||
| 90910-02097 |
2CT..CT190..UKP *11-1.25PX123-53 |
8 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2CT..CT190..UKP |
18 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2CT..CT190..UKP |
18 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
2CT..CT190..UKP L=11,OD=6 |
3 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
2CT..CT190..UKP L=11,OD=6 |
3 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-64140 |
2CT..CT190..UKP |
1 | ||
| 11115-6414002 |
2CT..CT190..UKP MARK 2 |
1 | ||
| 11115-6414003 |
2CT..CT190..UKP MARK 3 |
1 | ||
| 11115-6414001 |
2CT..CT190..UKP MARK 1 |
1 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-63000 |
2CT..CT190..UKP |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06013 |
2CT..CT190..UKP L=16,OD=6 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-64010 |
2CT..CT190..UKP O/S 0.05 |
4 | ||
| 11122-64010 |
2CT..CT190..UKP STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-64030 |
2CT..CT190..UKP O/S 0.05 |
4 | ||
| 11126-64030 |
2CT..CT190..UKP STD |
4 | ||
| 11126-64010 |
2CT..CT190..UKP STD |
4 | ||
| 11127-64010 |
2CT..CT190..UKP O/S 0.05 |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2CT..CT190..UKP |
10 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-64010 |
2CT..CT190..UKP |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-64141 |
2CT..CT190..UKP |
1 | ||
| 11201-64140 |
2CT..CT190..UKP |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-64061 |
2CT..CT190..UKP |
1 | ||
| 11213-64060 |
2CT..CT190..UKP |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
2CT..CT190..UKP |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2CT..CT190..UKP |
1 | ||
| 15794 - NOZZLE, CYLINDER HEAD OIL | ||||
| 15794-64011 |
2CT..CT190..UKP |
1 | ||
| 16334A - COVER, WATER OUTLET HOUSING | ||||
| 16334-64010 |
2CT..CT190..UKP |
1 | ||
| 16341A - GASKET, WATER OUTLET | ||||
| 16341-64021 |
2CT..CT190..UKP |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-06207 | ||||
| 90116-08345 | ||||
| 91621-60816 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1701 | ||||
| 2201 | ||||
