AT190R-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP

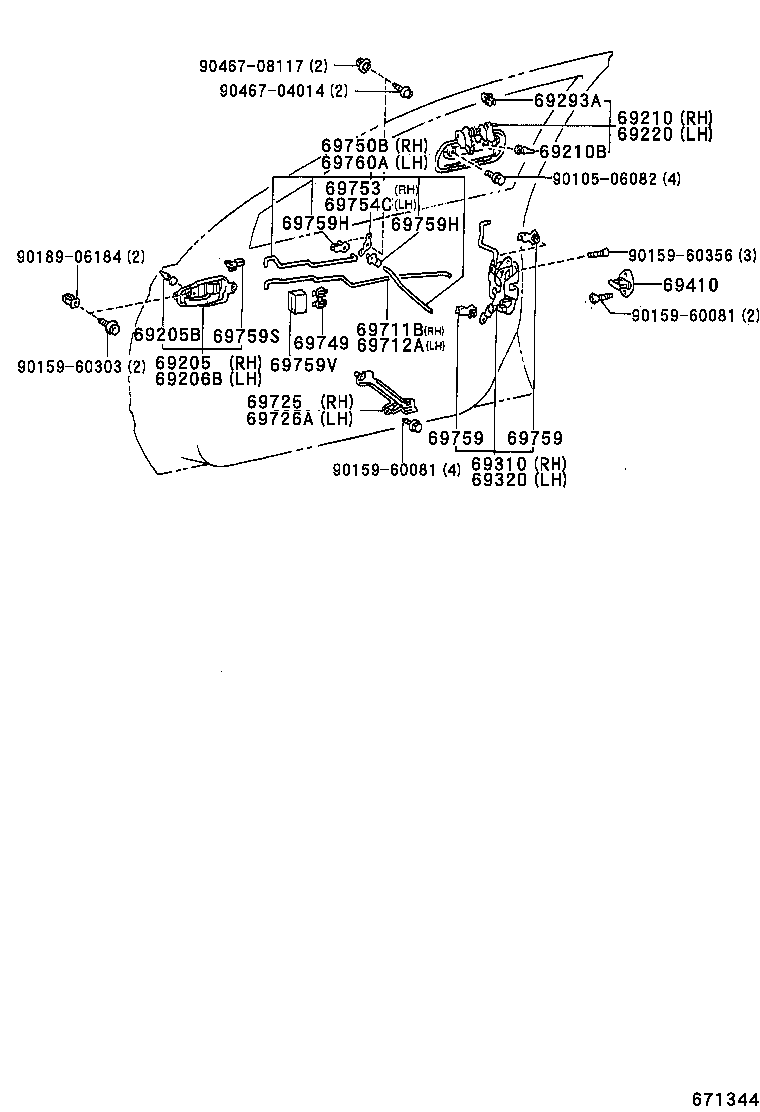

Click highlighted areas on diagram

diagram 69205 69205B 69206B 69210 69210B 69220 69293A 69310 69320 69410 69711B 69712A 69725 69726A 69749 69750B 69753 69754C 69759 69759 69759H 69759H 69759S 69759V 69760A 9010506082 9015960081 9015960081 9015960303 9015960356 9018906184 9046704014 9046708117
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
69205-05010J0

AT190,CT190,ST191..UKP

DARK BLUE,TRIM8#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90080-54017

AT190,CT190,ST191..UKP

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
69206-05010J0

AT190,CT190,ST191..UKP

DARK BLUE,TRIM8#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-05010

AT190,CT190,ST191..UKP

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90080-54017

AT190,CT190,ST191..UKP

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-05010

AT190,CT190,ST191..UKP

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

AT190,CT190,ST191..UKP

LH,YELLOW

 1
69293-12030

AT190,CT190,ST191..UKP

RH,NATURAL

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-05031

AT190..UKP..RHD

 1
69030-05020

AT190..UKP..RHD

W(POWER WINDOW)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-05040

AT190..UKP..RHD

W(POWER WINDOW)

 1
69040-05060

AT190..UKP..RHD

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

AT190,CT190,ST191..UKP

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-20180

AT190,CT190,ST191..UKP

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-20180

AT190,CT190,ST191..UKP

 1
69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69725-20010

AT190,CT190,ST191..UKP

 1
69726A - PROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69726-20010

AT190,CT190,ST191..UKP

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20040

AT190,CT190,ST191..UKP

 2
69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-20050

AT190,CT190,ST191..UKP

 1
69753 - BELLCRANK, DOOR LOCK CONTROL, RH
69753-20070

AT190,CT190,ST191..UKP

 1
69754C - BELLCRANK, DOOR LOCK CONTROL, LH
69753-20070

AT190,CT190,ST191..UKP

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24010

AT190,CT190,ST191..UKP

LH,NATURAL

 1
69759-24060

AT190,CT190,ST191..UKP

RH,GRAY

 2
69759-24050

AT190,CT190,ST191..UKP

LH,GREEN

 2
69759-24020

AT190,CT190,ST191..UKP

RH,BLUE

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24010

AT190,CT190,ST191..UKP

LH,NATURAL

 1
69759-24060

AT190,CT190,ST191..UKP

RH,GRAY

 2
69759-24050

AT190,CT190,ST191..UKP

LH,GREEN

 2
69759-24020

AT190,CT190,ST191..UKP

RH,BLUE

 1
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20380

AT190,CT190,ST191..UKP

BLACK

 2
69759-24030

AT190,CT190,ST191..UKP

RED

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20380

AT190,CT190,ST191..UKP

BLACK

 2
69759-24030

AT190,CT190,ST191..UKP

RED

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-05010

AT190,CT190,ST191..UKP

RH,PINK

 2
69759-05020

AT190,CT190,ST191..UKP

LH,YELLOW

 2
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-30021

AT190,CT190,ST191..UKP

 2
69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-20050

AT190,CT190,ST191..UKP

 1
Common parts
90105-06082
90159-60081
90159-60303
90159-60356
90189-06184
90467-04014
90467-08117
