AT190R-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP

Click highlighted areas on diagram

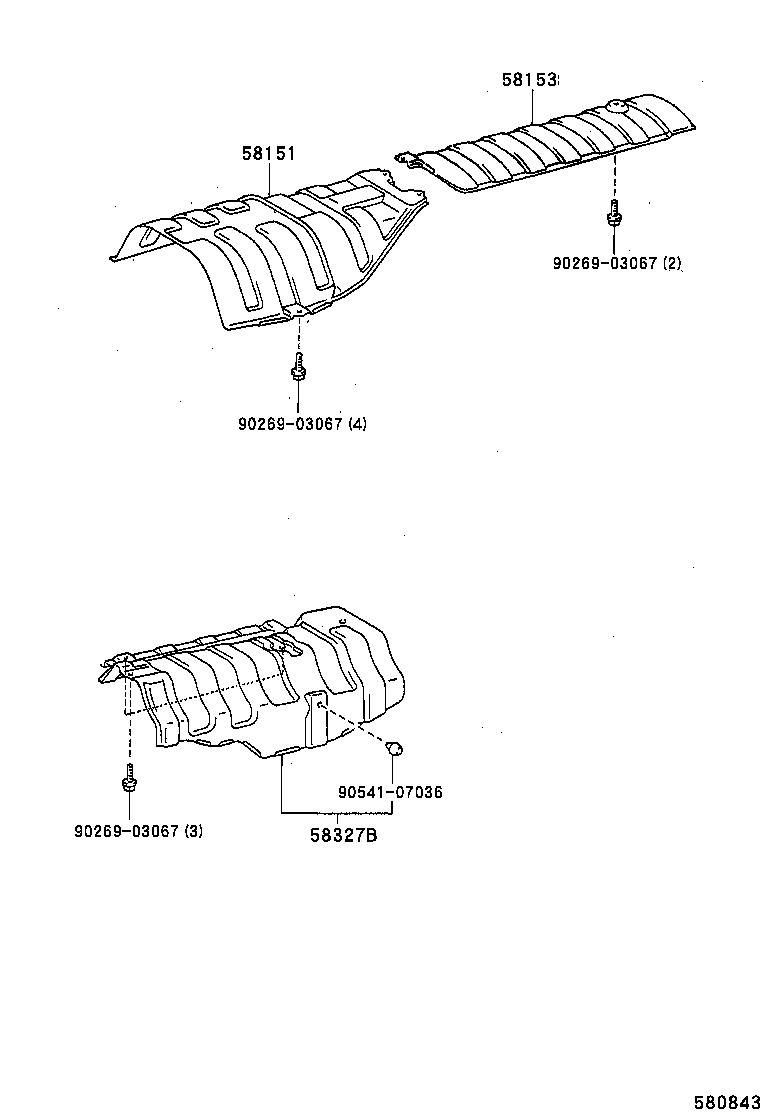

diagram 58151 58153 58327B 9026903067 9026903067 9026903067 9054107036
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-05020

AT190,ST191..UKP

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-05020

AT190,ST191..UKP

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-05010

AT190,CT190,ST191..UKP

 1
Common parts
90269-03067
90541-07036
