AT190R-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )AT190..UKP..MTM

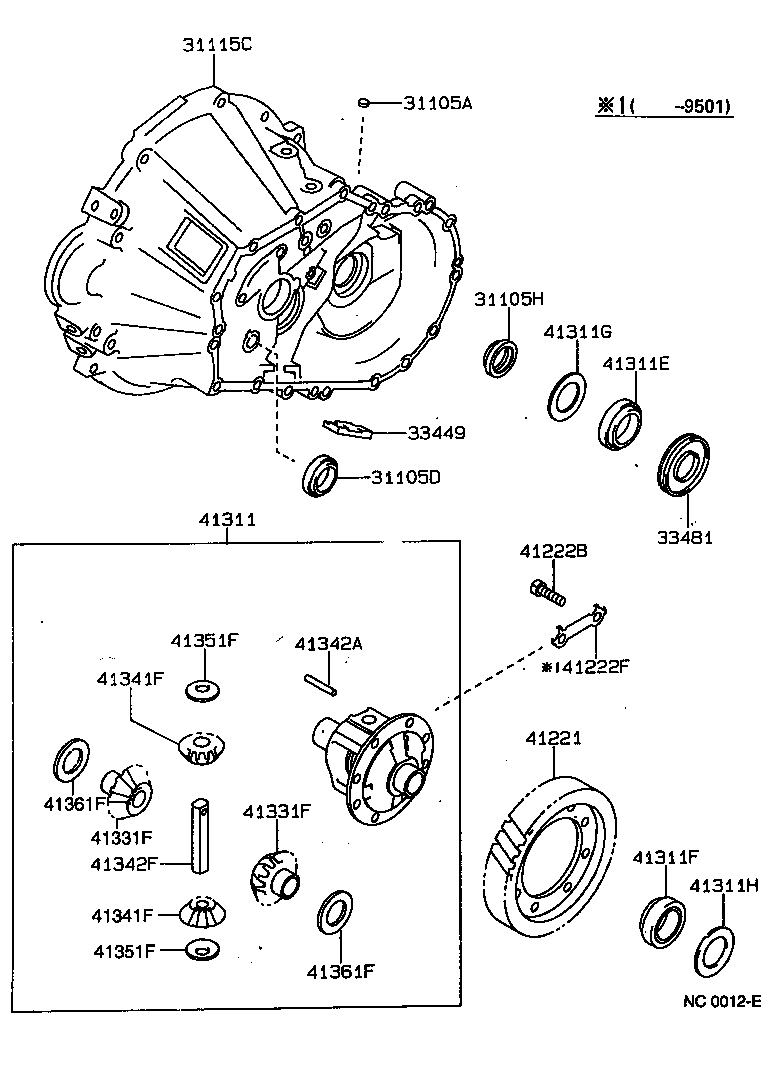

Click highlighted areas on diagram

C50,C52

diagram 31105A 31105D 31105H 31115C 33449 33481 41221 41222B 41222F 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

AT190,CT190,ST191..UKP..MTM

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016

AT190..UKP..MTM

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-34016

AT190..UKP..MTM

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-16042

AT190..UKP..MTM

 1
31115-16041

AT190..UKP..MTM

 1
31115-16040

AT190..UKP..MTM

 1
33449 - MAGNET, TRANSMISSION
33449-12020

AT190..UKP..MTM

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-12040

AT190..UKP..MTM

N=35,MARK 35X29-31

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12330

AT190..UKP..MTM

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-11040

AT190,CT190,ST191..UKP..MTM

 8
41311 - CASE, FRONT DIFFERENTIAL
41301-12041

AT190..UKP..MTM

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-38004

AT190..UKP..MTM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

AT190..UKP..MTM

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90201-41012

AT190..UKP..MTM

T=2.10

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-41047

AT190..UKP..MTM

T=2.15,MARK B

 1
90201-41048

AT190..UKP..MTM

T=2.20,MARK C

 1
90201-41046

AT190..UKP..MTM

T=2.10,MARK A

 1
90201-41053

AT190..UKP..MTM

T=2.45,MARK H

 1
90201-41050

AT190..UKP..MTM

T=2.30,MARK E

 1
90201-41049

AT190..UKP..MTM

T=2.25,MARK D

 1
90201-41052

AT190..UKP..MTM

T=2.40,MARK G

 1
90201-41054

AT190..UKP..MTM

T=2.50,MARK J

 1
90201-41056

AT190..UKP..MTM

T=2.60,MARK L

 1
90201-41051

AT190..UKP..MTM

T=2.35,MARK F

 1
90201-41059

AT190..UKP..MTM

T=2.75,MARK P

 1
90201-41057

AT190..UKP..MTM

T=2.65,MARK M

 1
90201-41061

AT190..UKP..MTM

T=2.85,MARK R

 1
90201-41063

AT190..UKP..MTM

T=2.95,MARK T

 1
90201-41055

AT190..UKP..MTM

T=2.55,MARK K

 1
90201-41064

AT190..UKP..MTM

T=3.00,MARK U

 1
90201-41060

AT190..UKP..MTM

T=2.80,MARK Q

 1
90201-41062

AT190..UKP..MTM

T=2.90,MARK S

 1
90201-41058

AT190..UKP..MTM

T=2.70,MARK N

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

AT190..UKP

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

AT190..UKP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

AT190..UKP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

AT190..UKP

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AT190,CT190,ST191..UKP

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12140

AT190..UKP..MTM

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AT190..UKP

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AT190..UKP

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030

AT190,CT190,ST191..UKP..MTM

T=1.10,MARK 03

 2
41361-22140

AT190,CT190,ST191..UKP..MTM

T=0.95,MARK 14

 2
41361-22150

AT190,CT190,ST191..UKP..MTM

T=1.05,MARK 15

 2
41361-22020

AT190,CT190,ST191..UKP..MTM

T=1.00,MARK 02

 2
41361-22160

AT190,CT190,ST191..UKP..MTM

T=1.15,MARK 16

 2
41361-22040

AT190,CT190,ST191..UKP..MTM

T=1.20,MARK 04

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030

AT190,CT190,ST191..UKP..MTM

T=1.10,MARK 03

 2
41361-22140

AT190,CT190,ST191..UKP..MTM

T=0.95,MARK 14

 2
41361-22150

AT190,CT190,ST191..UKP..MTM

T=1.05,MARK 15

 2
41361-22020

AT190,CT190,ST191..UKP..MTM

T=1.00,MARK 02

 2
41361-22160

AT190,CT190,ST191..UKP..MTM

T=1.15,MARK 16

 2
41361-22040

AT190,CT190,ST191..UKP..MTM

T=1.20,MARK 04

 2
