AT190R-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

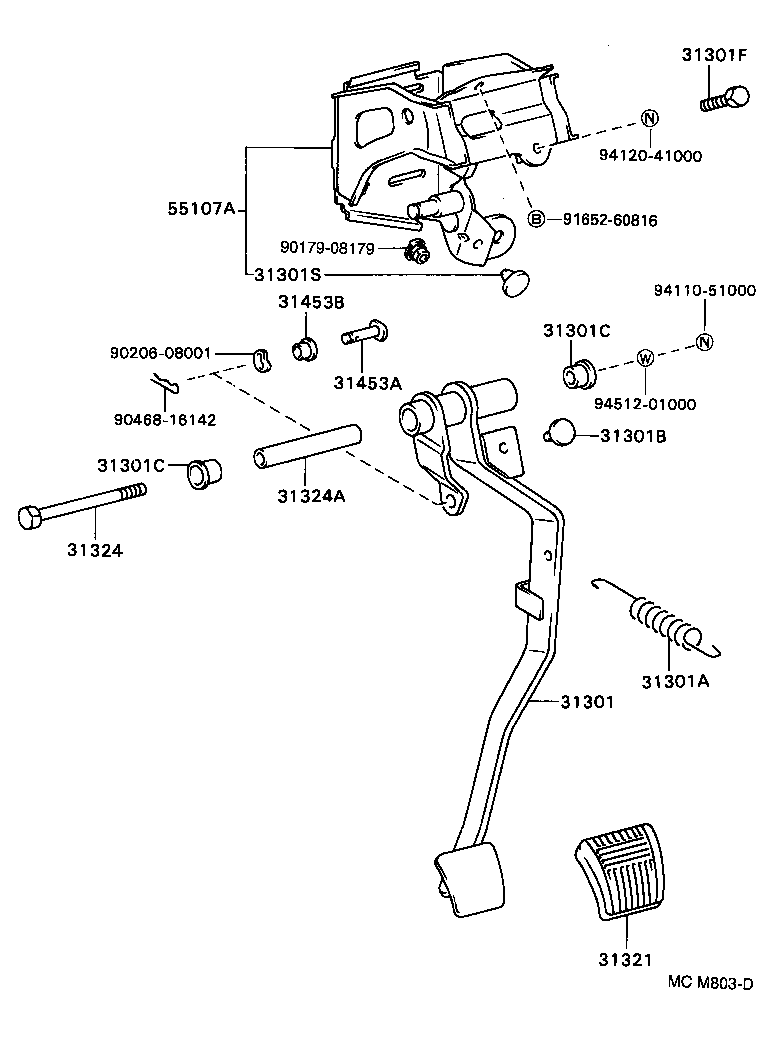

ILLUST NO. 1 OF 2(9601- )UKP..RHD

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301S 31321 31324 31324A 31453A 31453B 55107A 9017908179 9020608001 9046816142 9165260816 9411051000 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-05010

AT190,ST191..UKP..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-07002

AT190,ST191..UKP..RHD..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AT190,CT190,ST191..UKP..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT190,CT190,ST191..UKP..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT190,CT190,ST191..UKP..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AT190,CT190,ST191..UKP..MTM

 1
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06036

AT190,CT190,ST191..UKP..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

AT190,CT190,ST191..UKP..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10100

AT190,ST191..UKP..RHD..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10002

AT190,ST191..UKP..RHD..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

AT190,CT190,ST191..UKP..MTM

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AT190,CT190,ST191..UKP..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-05010

AT190,ST191..UKP..RHD..MTM

 1
Common parts
90179-08179
90206-08001
90468-16142
91652-60816
94110-51000
94120-41000
94512-01000

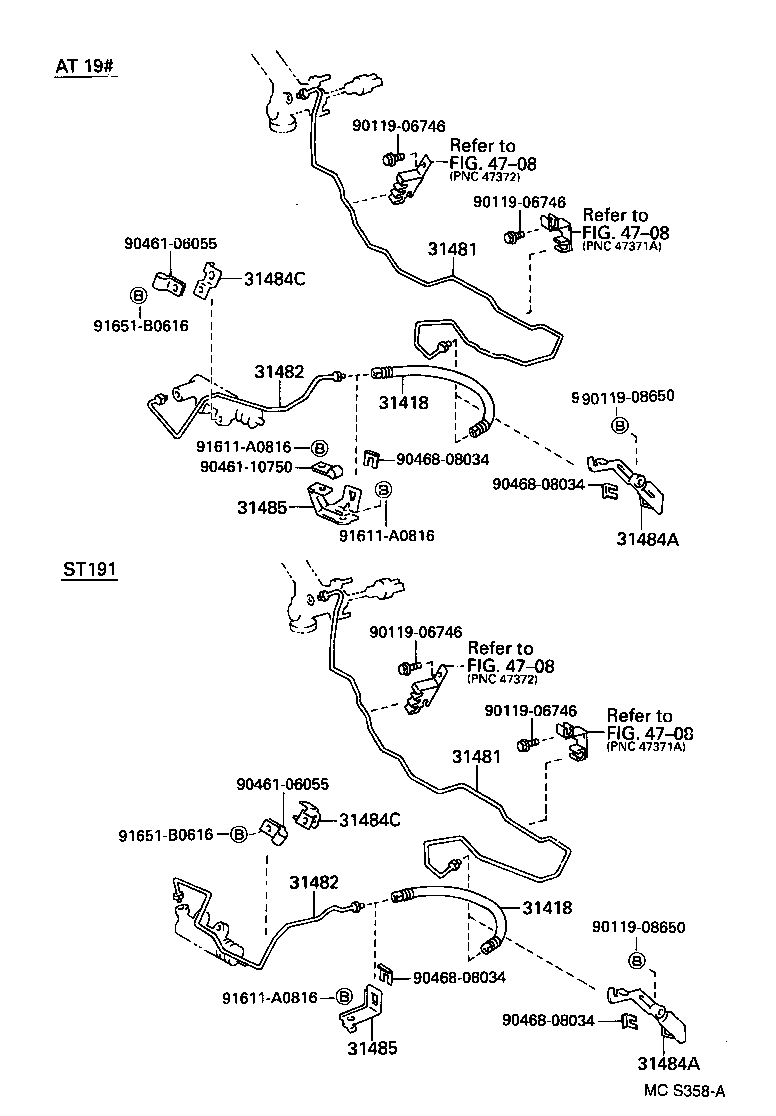

ILLUST NO. 2 OF 2(9601- )UKP..RHD

Click highlighted areas on diagram

diagram 31418 31418 31481 31481 31482 31482 31484A 31484A 31484C 31484C 31485 31485 4708 4708 4708 4708 9011906746 9011906746 9011906746 9011906746 9011908650 9011908650 9046106055 9046106055 9046110750 9046808034 9046808034 9046808034 9046808034 91611A0816 91611A0816 91611A0816 91651B0616 91651B0616
Part # Description Qty Price
31418 - HOSE, CLUTCH
90080-93008

AT190,CT190,ST191..UKP..MTM

 1
31418 - HOSE, CLUTCH
90080-93008

AT190,CT190,ST191..UKP..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05050

AT190,ST191..UKP..RHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05050

AT190,ST191..UKP..RHD..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-05020

AT190..UKP..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-05020

AT190..UKP..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20540

AT190,CT190,ST191..UKP..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20540

AT190,CT190,ST191..UKP..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12110

AT190..UKP..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12110

AT190..UKP..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20531

AT190..UKP..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20531

AT190..UKP..MTM

 1
Common parts
90119-06746
90119-08650
90461-06055
90461-10750
90468-08034
91611-A0816
91651-B0616
Linked diagrams
4708
