Toyota Corona sed (ukp) AT190 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-20350	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-20530	AT190,ST191..UKP..LHD..ATM	01/1996 - 10/1997	1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109	AT190,ST191..UKP..ATM	01/1996 - 10/1997	2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-20150C0	AT190,ST191..UKP..LHD..ATM BLACK,TRIM1#,8#	01/1996 - 10/1997	1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-20270	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33511E - RING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT)
90520-08001	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT)
33521-20250	AT190,ST191..UKP..LHD..ATM	01/1996 - 10/1997	1
33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT)
90249-02005	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER)
33531-20010	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33544 - INSERT, SHIFT LEVER, NO.1
33544-33010	AT190,ST191..UKP..ATM	01/1996 - 10/1997	4
33550D - BULB, POSITION INDICATOR LAMP
90981-11018	AT190,ST191..UKP..ATM 12V 1.2W W/O SOCKET	01/1996 - 10/1997	1
33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1
33558-20010	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33623 - BUTTON, SHIFT LEVER KNOB
33623-20070C0	AT190,ST191..UKP..LHD..ATM BLACK,TRIM1#,8#	01/1996 - 10/1997	1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-24010	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33631 - ROD, DETENT
33631-16050	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07074	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04008	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33635-20050	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-35010	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
35559 - SPRING, MANUAL DETENT
35559-33010	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-20070	AT190,ST191..UKP..ATM	01/1996 - 10/1997	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-20320	AT190,ST191..UKP..LHD..ATM	01/1996 - 10/1997	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-20240	AT190,ST191..UKP..LHD..ATM	01/1996 - 10/1997	1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-20170	AT190,ST191..UKP..LHD..ATM	01/1996 - 10/1997	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-20130	AT190,ST191..UKP..LHD..ATM	01/1996 - 10/1997	1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-20060	AT190,ST191..UKP..ATM UPR,L=122.2	01/1996 - 10/1997	1
35976-20050	AT190,ST191..UKP..ATM LWR,L=149.2	01/1996 - 10/1997	1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-20060	AT190,ST191..UKP..ATM UPR,L=122.2	01/1996 - 10/1997	1
35976-20050	AT190,ST191..UKP..ATM LWR,L=149.2	01/1996 - 10/1997	1
Common parts
90105-06203
90159-50204
93315-14008
94110-40600
Linked diagrams
8410

Part #	Description	Period	Qty
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-05040	AT190..UKP..ATM	01/1996 - 10/1997	1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01807	AT190..UKP..ATM	01/1996 - 10/1997	1
33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90949-01A24	AT190..UKP..ATM	01/1996 - 10/1997	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-20070	AT190..UKP..ATM	01/1996 - 10/1997	1
Common parts
90179-08061
90468-14004
90468-14016
90468-14017
91612-61022
91621-60614
91651-40816

AT190L-BEPNK (1996)

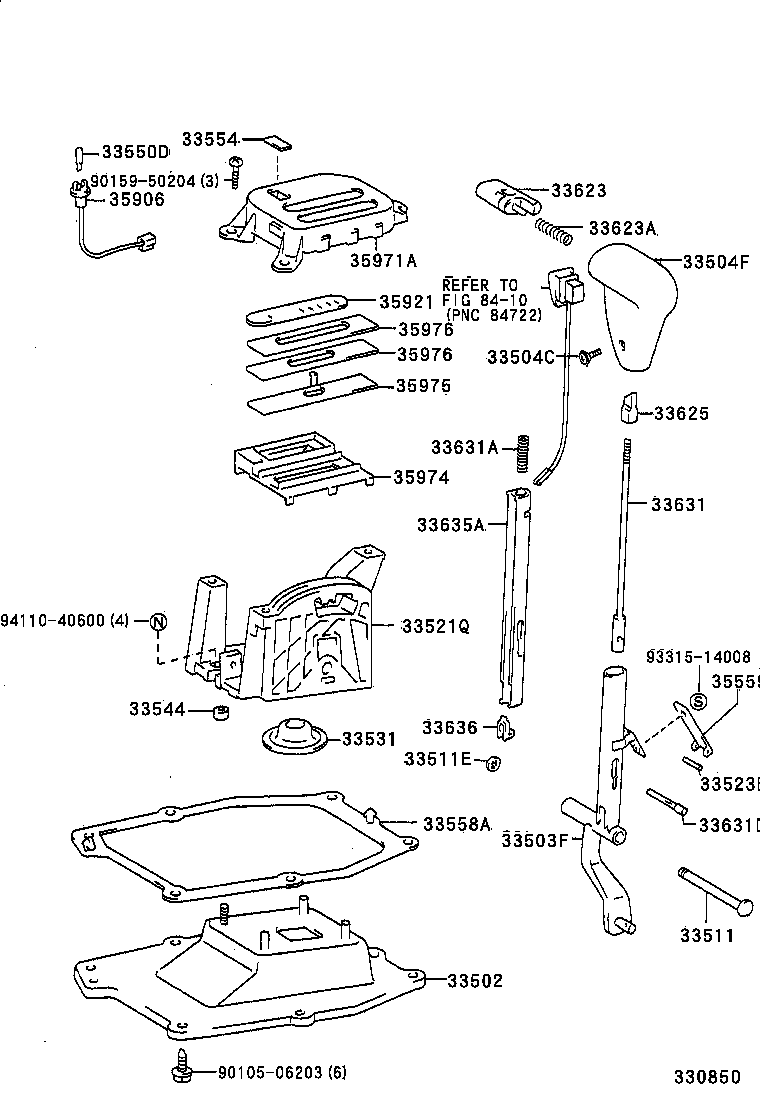

ILLUST NO. 1 OF 2(9601- )UKP..ATM

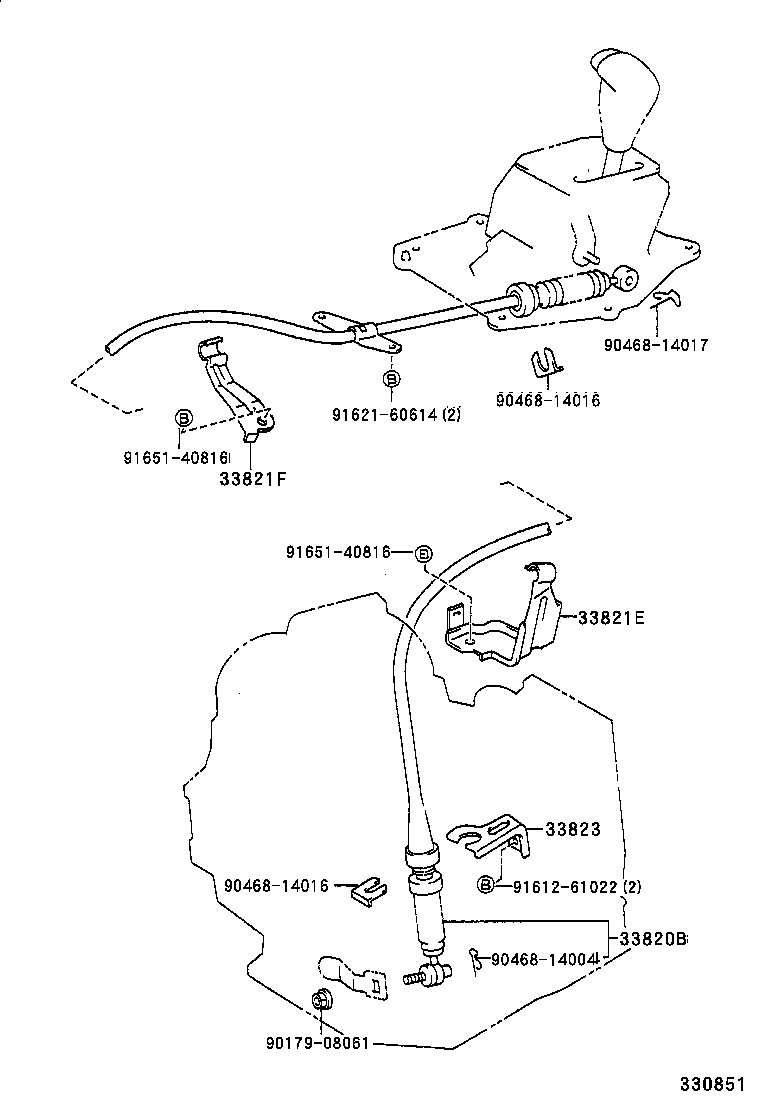

ILLUST NO. 2 OF 2(9601- )AT190..UKP..ATM
