AT190L-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

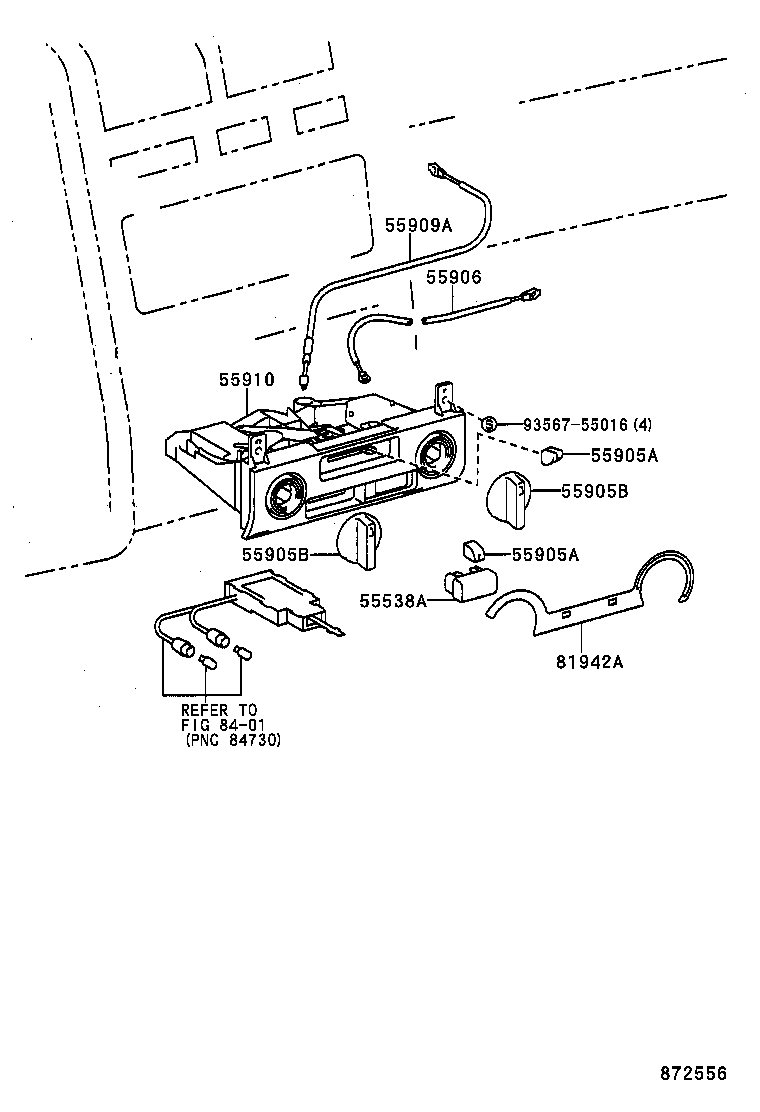

ILLUST NO. 1 OF 2(9601- )UKP

Click highlighted areas on diagram

LEVER CONTROL TYPE

diagram 55538A 55905A 55905A 55905B 55905B 55906 55909A 55910 81942A 8401 9356755016
Part # Description Qty Price
55538A - COVER, COOLER SWITCH HOLE
55538-05010

AT190,ST191..UKP

 1
55905A - KNOB, HEATER CONTROL
55905-05010

AT190,CT190,ST191..UKP

 2
55905A - KNOB, HEATER CONTROL
55905-05010

AT190,CT190,ST191..UKP

 2
55905B - KNOB, HEATER CONTROL, NO.2
55905-05020

AT190,CT190,ST191..UKP

 2
55905B - KNOB, HEATER CONTROL, NO.2
55905-05020

AT190,CT190,ST191..UKP

 2
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-20300

AT190,CT190,ST191..UKP

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-05021

AT190,CT190,ST191..UKP..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-05021

AT190,CT190,ST191..UKP..LHD

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-05020

AT190,CT190,ST191..UKP..LHD

 1
Common parts
93567-55016
Linked diagrams
8401

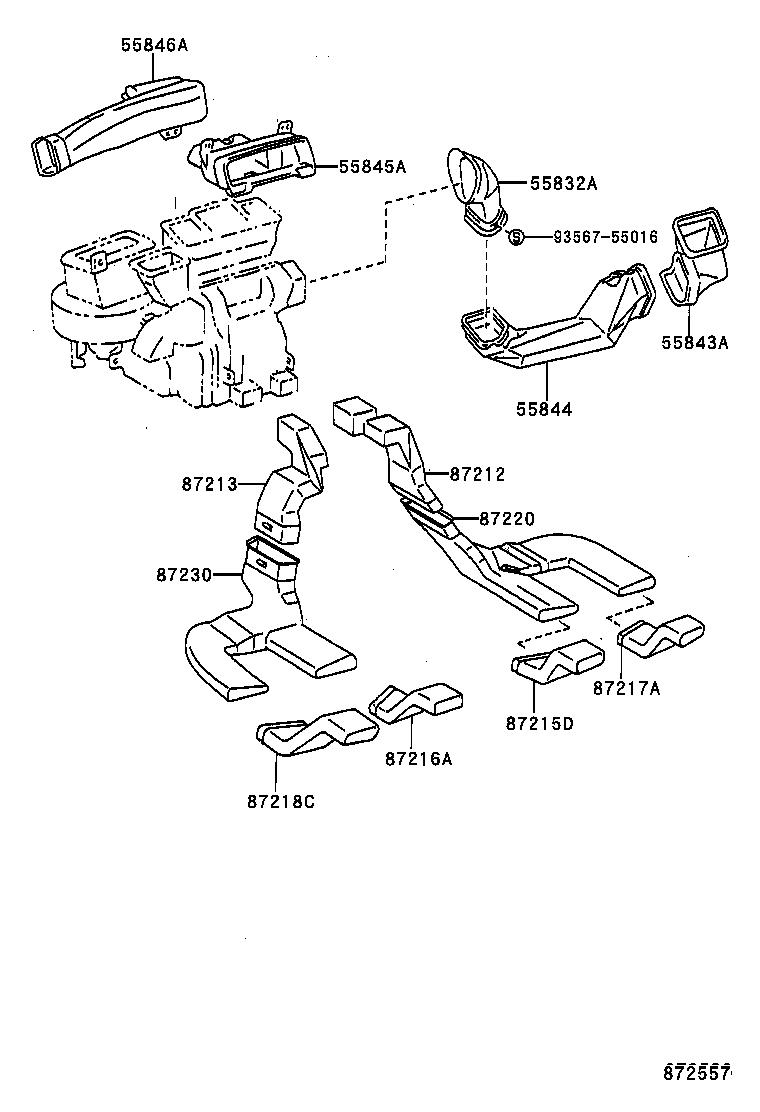

ILLUST NO. 2 OF 2(9601- )UKP

Click highlighted areas on diagram

AIR DUCT

diagram 55832A 55843A 55844 55845A 55846A 87212 87213 87215D 87216A 87217A 87218C 87220 87230 9356755016
Part # Description Qty Price
55832A - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2
55832-05020

AT190,CT190,ST191..UKP..LHD

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-05020

AT190,CT190,ST191..UKP..LHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-05020

AT190,CT190,ST191..UKP..LHD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-05020

AT190,CT190,ST191..UKP..LHD

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-05040

AT190,CT190,ST191..UKP..LHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-05020

AT190,CT190,ST191..UKP..LHD

 1
87213 - DUCT, AIR, REAR NO.2
87213-05020

AT190,CT190,ST191..UKP..LHD

 1
87215D - DUCT, AIR, REAR NO.4
87413-05010

AT190,CT190,ST191..UKP

 1
87216A - DUCT, AIR, REAR NO.5
87414-05010

AT190,CT190,ST191..UKP

 1
87217A - DUCT, AIR, REAR NO.6
87217-05020

AT190,CT190,ST191..UKP

 1
87218C - DUCT, AIR, REAR NO.6
87218-05020

AT190,CT190,ST191..UKP

 1
87220 - DUCT ASSY, AIR
87215-05010

AT190,CT190,ST191..UKP

 1
87230 - DUCT ASSY, AIR, HEATER
87216-05010

AT190,CT190,ST191..UKP

 1
Common parts
93567-55016
