AT190L-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

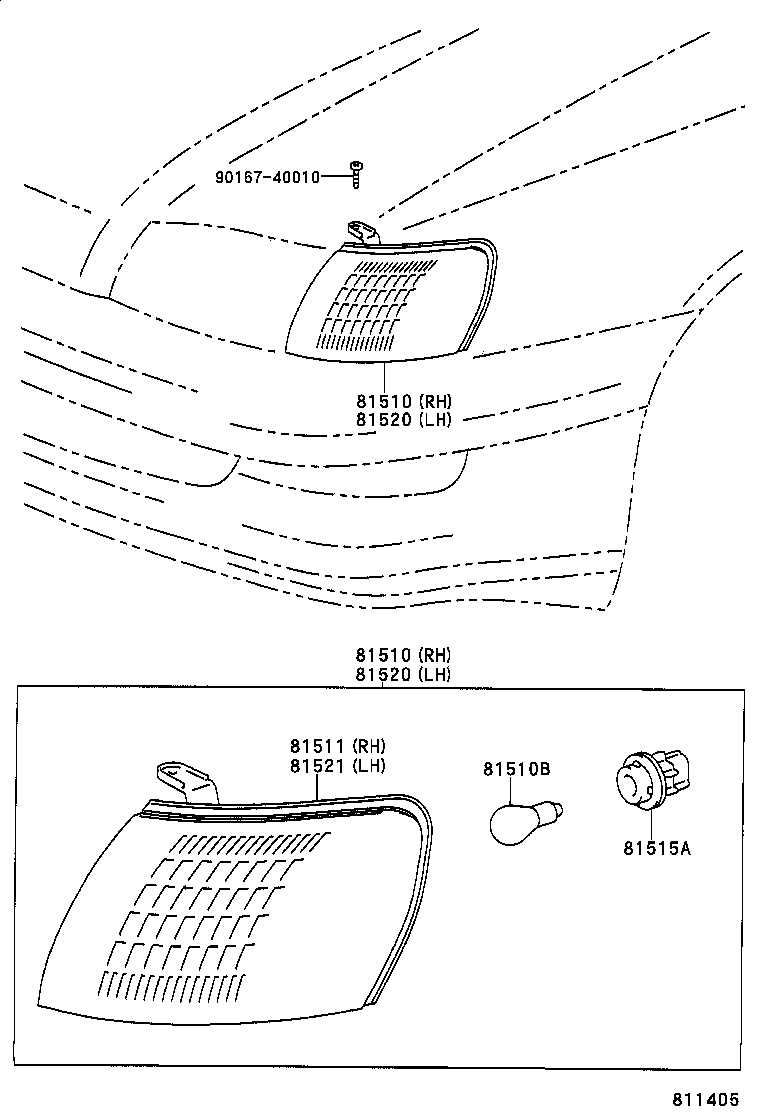

Click highlighted areas on diagram

diagram 81510 81510 81510B 81511 81515A 81520 81520 81521 9016740010
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-05010

AT190,CT190,ST191..UKP

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-05010

AT190,CT190,ST191..UKP

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90080-81035

AT190,CT190,ST191..UKP

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-05010

AT190,CT190,ST191..UKP

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99078

AT190,CT190,ST191..UKP

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-05010

AT190,CT190,ST191..UKP

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-05010

AT190,CT190,ST191..UKP

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-05010

AT190,CT190,ST191..UKP

 1
Common parts
90167-40010
