AT190L-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

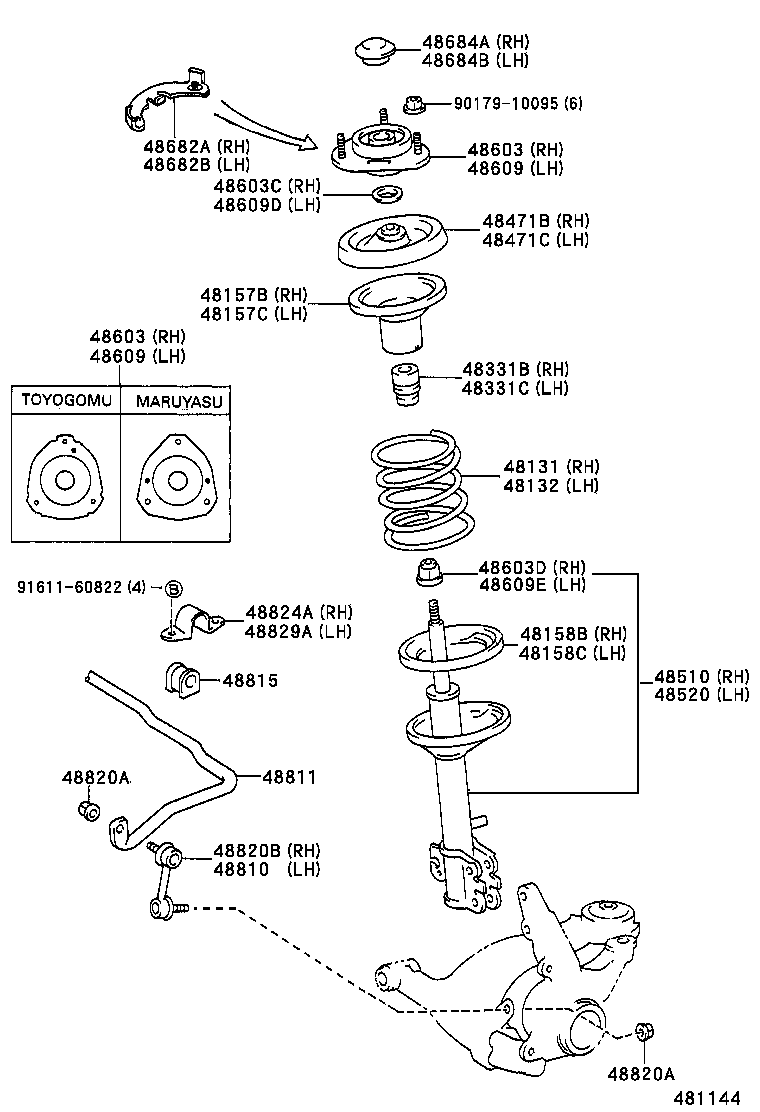

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48471B 48471C 48510 48520 48603 48603 48603C 48603D 48609 48609 48609D 48609E 48682A 48682B 48684A 48684B 48810 48811 48815 48820A 48820A 48820B 48824A 48829A 9017910095 9161160822
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-05350

AT190..UKP..LHD..MTM

 1
48131-05360

AT190..UKP..LHD..MTM

ROUGH ROAD PACKAGE

 1
48132 - SPRING, FRONT COIL, LH
48131-05110

AT190..UKP..LHD..MTM

ROUGH ROAD PACKAGE

 1
48131-05360

AT190..UKP..LHD..MTM

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-05010

AT190,CT190,ST191..UKP

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-05010

AT190,CT190,ST191..UKP

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-05010

AT190,CT190,ST191..UKP

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-05010

AT190,CT190,ST191..UKP

 1
48331B - BUMPER, FRONT SPRING, RH
48331-05020

AT190,CT190,ST191..UKP

 1
48331C - BUMPER, FRONT SPRING, LH
48331-05020

AT190,CT190,ST191..UKP

 1
48471B - SEAT, FRONT COIL SPRING, UPPER RH
48044-05010

AT190,CT190,ST191..UKP

 1
48471C - SEAT, FRONT COIL SPRING, UPPER LH
48044-05010

AT190,CT190,ST191..UKP

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-09150

AT190,CT190,ST191..UKP

 1
48510-09160

AT190,CT190,ST191..UKP

ROUGH ROAD PACKAGE

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-09160

AT190,CT190,ST191..UKP

ROUGH ROAD PACKAGE

 1
48520-09150

AT190,CT190,ST191..UKP

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-20410

AT190,CT190,ST191..UKP

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-20410

AT190,CT190,ST191..UKP

 1
48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
90303-22049

AT190,CT190,ST191..UKP

 1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
94182-11400

AT190,CT190,ST191..UKP

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-20410

AT190,CT190,ST191..UKP

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-20410

AT190,CT190,ST191..UKP

 1
48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
90303-22049

AT190,CT190,ST191..UKP

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
94182-11400

AT190,CT190,ST191..UKP

 1
48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH
48682-20020

AT190,CT190,ST191..UKP

 1
48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH
48682-20020

AT190,CT190,ST191..UKP

 1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-05010

AT190,CT190,ST191..UKP

 1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-05010

AT190,CT190,ST191..UKP

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-20020

AT190,CT190,ST191..UKP

 1
48810-05011

AT190,CT190,ST191..UKP

 1
48811 - BAR, STABILIZER, FRONT
48811-05030

AT190,CT190,ST191..UKP

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-05030

AT190,CT190,ST191..UKP

 2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-10183

AT190,CT190,ST191..UKP

 4
90179-10054

AT190,CT190,ST191..UKP

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-10183

AT190,CT190,ST191..UKP

 4
90179-10054

AT190,CT190,ST191..UKP

 4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-20040

AT190,CT190,ST191..UKP

 1
48820-05011

AT190,CT190,ST191..UKP

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-12040

AT190,CT190,ST191..UKP

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-12040

AT190,CT190,ST191..UKP

 1
Common parts
90179-10095
91611-60822
