AT190L-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)AT190..UKP

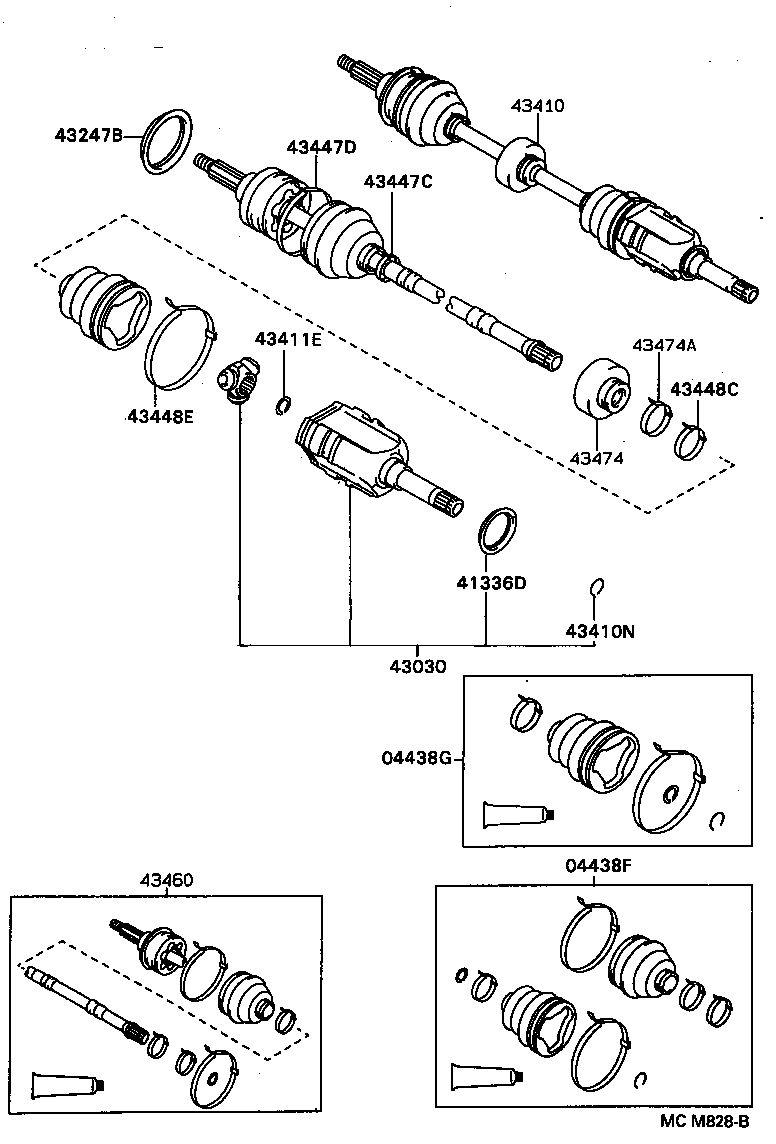

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43247B 43410 43410N 43411E 43447C 43447D 43448C 43448E 43460 43474 43474A
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-05020

AT190,CT190..UKP

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-05010

AT190,CT190..UKP

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-05010

AT190..UKP

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43403-05020

AT190..UKP

 1
43403-05010

AT190..UKP

 1
43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247-05011

AT190,CT190,ST191..UKP

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-05111

AT190..UKP

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90080-52056

AT190..UKP

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90080-52052

AT190,CT190,ST191..UKP

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
90080-46170

AT190,CT190,ST191..UKP

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
90080-46156

AT190,CT190,ST191..UKP

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90080-46154

AT190,CT190,ST191..UKP

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90080-46155

AT190,CT190,ST191..UKP

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09150

AT190..UKP

 1
43474 - DAMPER, DRIVE SHAFT
43474-05030

AT190..UKP

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
90080-46119

AT190,CT190..UKP

 1

(9601-9710)UKP

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43247C 43412B 43420 43420G 43447E 43447F 43448F 43448G 43470
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-05020

AT190..UKP

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-05010

AT190..UKP

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-05010

AT190..UKP

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43403-05010

AT190..UKP

 1
43403-05020

AT190..UKP

 1
43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43247-05011

AT190,CT190,ST191..UKP

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90080-52052

AT190,CT190,ST191..UKP

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-05070

AT190..UKP

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90080-52056

AT190..UKP

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90080-46170

AT190,CT190,ST191..UKP

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90080-46156

AT190,CT190,ST191..UKP

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90080-46154

AT190,CT190,ST191..UKP

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90080-46155

AT190,CT190,ST191..UKP

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-09240

AT190..UKP

 1
