ST191R-ALPNK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9203- )3SFE..JPP

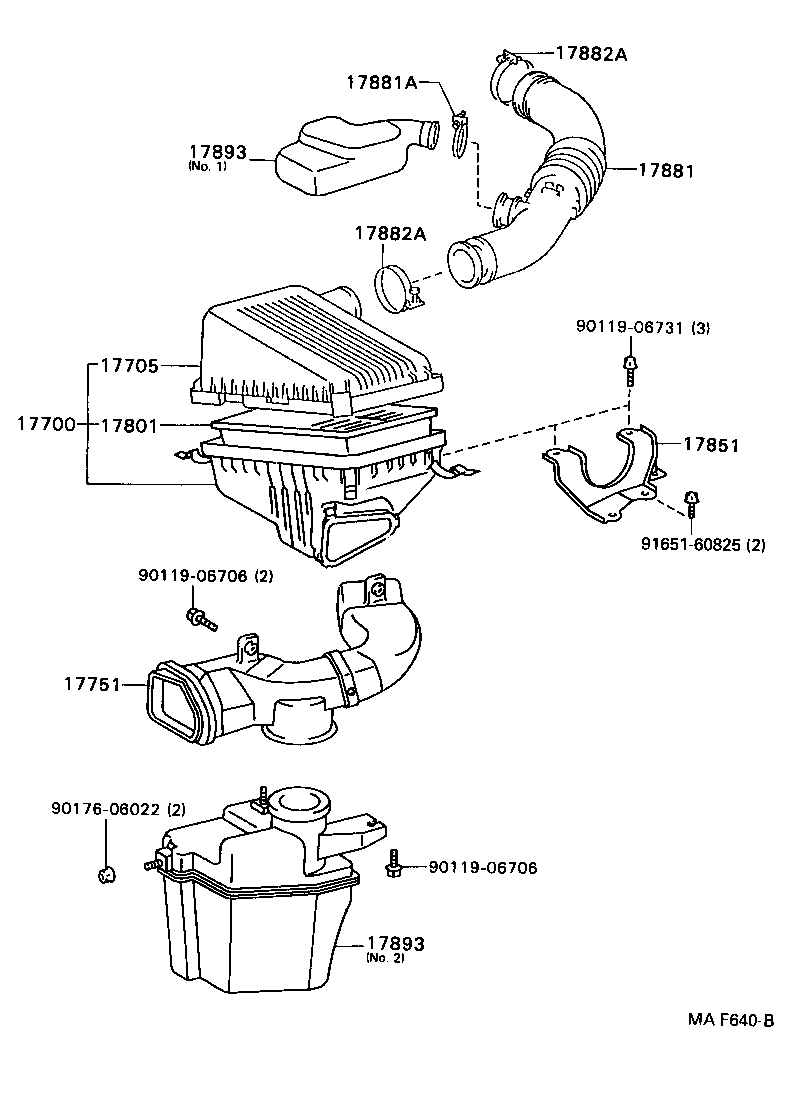

Click highlighted areas on diagram

diagram 17700 17705 17751 17801 17851 17881 17881A 17882A 17882A 17893 17893 9011906706 9011906706 9011906731 9017606022 9165160825
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74410

3SFE..ST191..JPP

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74290

3SFE..ST191..JPP

 1
17751 - INLET, AIR CLEANER, NO.1
17751-16070

3SFE..ST191..JPP

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

3SFE..ST191..JPP

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-74040

3SFE..ST191..JPP

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74450

3SFE..ST191..JPP

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10590

3SFE..ST191..JPP

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

3SFE..ST191..JPP

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

3SFE..ST191..JPP

 2
17893 - RESONATOR, INTAKE AIR
17893-74240

3SFE..ST191..JPP

NO.1

 1
17893-16100

3SFE..ST191..JPP

NO.2

 1
17893 - RESONATOR, INTAKE AIR
17893-74240

3SFE..ST191..JPP

NO.1

 1
17893-16100

3SFE..ST191..JPP

NO.2

 1
Common parts
90119-06706
90119-06731
90176-06022
91651-60825
