ST191R-ALMNK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9203- )JPP

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-20110

AT190,CT190,ST191..JPP

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-20080

AT190,CT190,ST191..JPP

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-33080

AT190,CT190,ST191..JPP

 1

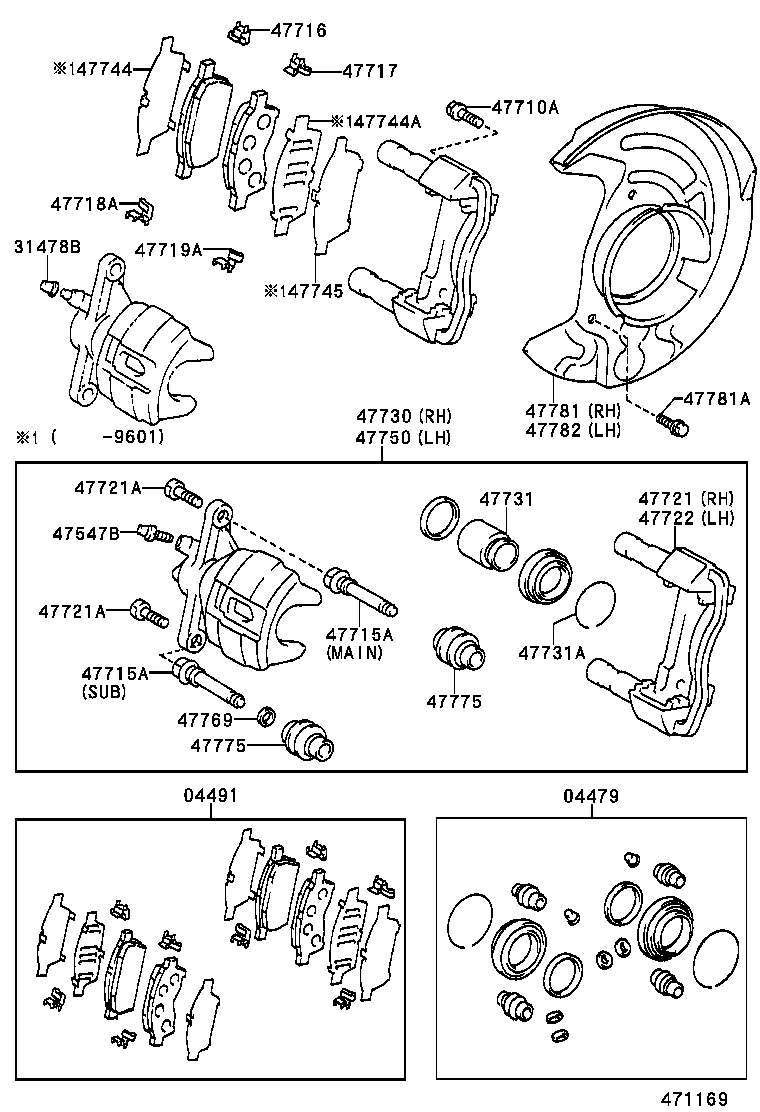

ILLUST NO. 1 OF 2(9203- )JPP

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47715A 47715A 47716 47717 47718A 47719A 47721 47721A 47721A 47722 47730 47731 47731A 47744 47744A 47745 47750 47769 47775 47775 47781 47781A 47782
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-20170

AT190,CT190,ST191..JPP

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-20880

AT190,CT190,ST191..JPP

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AT190,CT190,ST191..JPP

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

AT190,CT190,ST191..JPP

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12040

AT190,CT190,ST191..JPP

*12-1.25PX25.8-19.5

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-50010

AT190,CT190,ST191..JPP

SUB

 2
47715-50010

AT190,CT190,ST191..JPP

 4
47715-50030

AT190,CT190,ST191..JPP

MAIN

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-50010

AT190,CT190,ST191..JPP

SUB

 2
47715-50010

AT190,CT190,ST191..JPP

 4
47715-50030

AT190,CT190,ST191..JPP

MAIN

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-33010

AT190,CT190,ST191..JPP

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-33020

AT190,CT190,ST191..JPP

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-33010

AT190,CT190,ST191..JPP

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-33020

AT190,CT190,ST191..JPP

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-20370

AT190,CT190,ST191..JPP

 1
47721-20380

ST191..JPP

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

AT190,CT190,ST191..JPP

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

AT190,CT190,ST191..JPP

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-20090

ST191..JPP

 1
47722-20080

AT190,CT190,ST191..JPP

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-20480

AT190,CT190,ST191..JPP

 1
47730-20490

ST191..JPP

 1
47731 - PISTON, FRONT DISC BRAKE
47731-20190

AT190,CT190,ST191..JPP

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-66001

AT190,CT190,ST191..JPP

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-20120

AT190,CT190,ST191..JPP

 2
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47744-33010

AT190,CT190,ST191..JPP

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-33010

AT190,CT190,ST191..JPP

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-20490

ST191..JPP

 1
47750-20480

AT190,CT190,ST191..JPP

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

AT190,CT190,ST191..JPP

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-20080

AT190,CT190,ST191..JPP

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-20080

AT190,CT190,ST191..JPP

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-20280

AT190,CT190,ST191..JPP

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90109-06134

AT190,CT190,ST191..JPP

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-20280

AT190,CT190,ST191..JPP

 1
