ST191R-AEPDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9203- )ST191..JPP

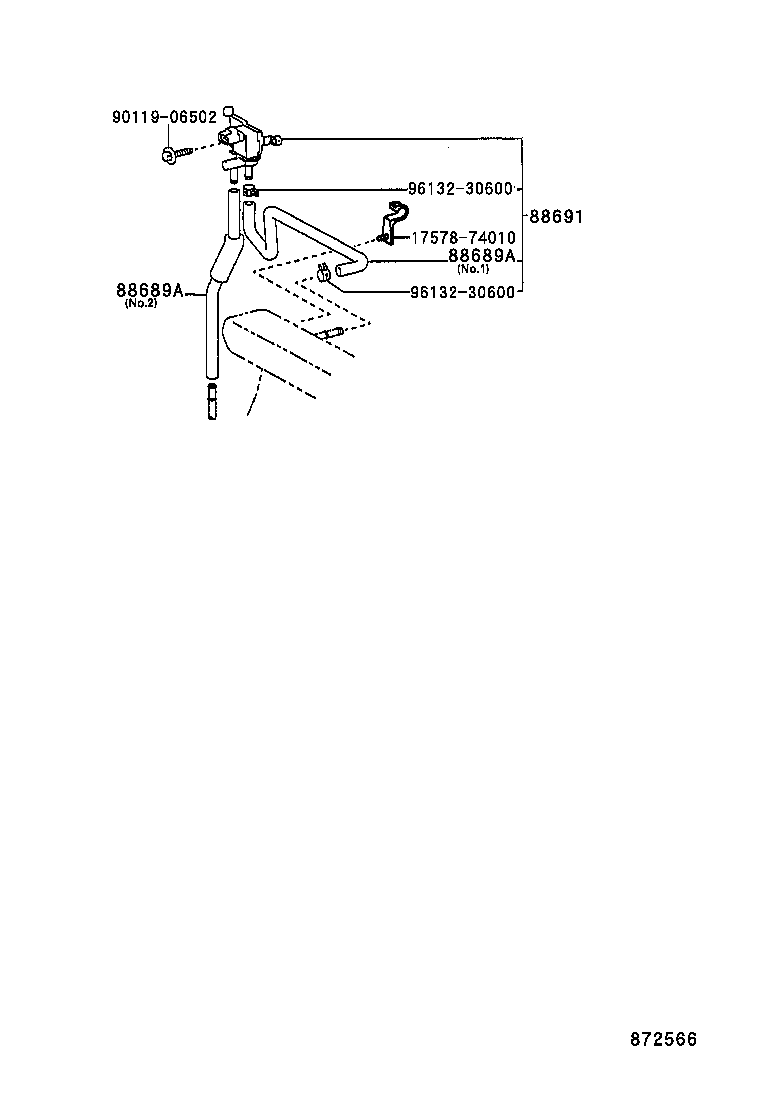

Click highlighted areas on diagram

diagram 1757874010 88689A 88689A 88691 9011906502 9613230600 9613230600
Part # Description Qty Price
88689A - HOSE, COOLER VACUUM NO.1
17342-74200

ST191..JPP

NO.2

 1
17341-74421

ST191..JPP

NO.1

 1
88689A - HOSE, COOLER VACUUM NO.1
17342-74200

ST191..JPP

NO.2

 1
17341-74421

ST191..JPP

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
17600-74081

ST191..JPP

 1
Common parts
17578-74010
90119-06502
96132-30600
