ST191R-AEPDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9203- )ST191..JPP

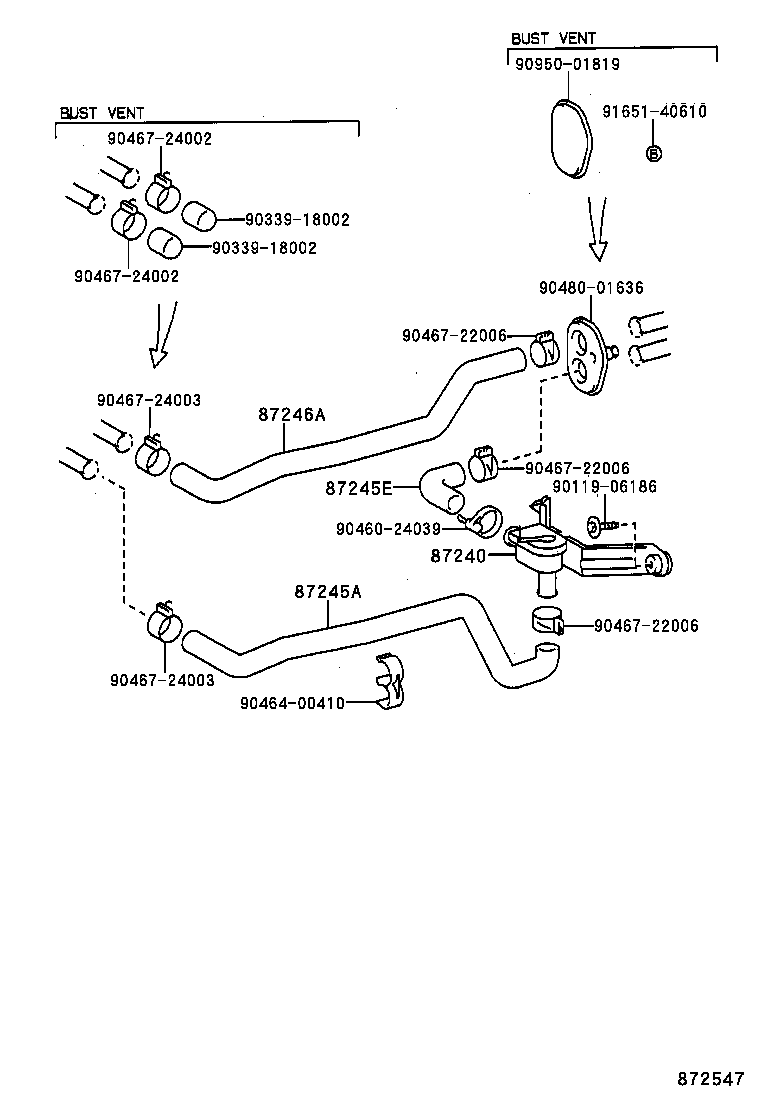

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246A 9011906186 9033918002 9033918002 9046024039 9046400410 9046722006 9046722006 9046722006 9046724002 9046724002 9046724003 9046724003 9048001636 9095001819 9165140610
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-20370

AT190,ST191..JPP..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B650

ST191..JPP..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2B610

AT190,ST191..JPP..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B660

ST191..JPP..RHD

 1
Common parts
90119-06186
90339-18002
90460-24039
90464-00410
90467-22006
90467-24002
90467-24003
90480-01636
90950-01819
91651-40610
