ST191R-AEPDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9203- )JPP

Click highlighted areas on diagram

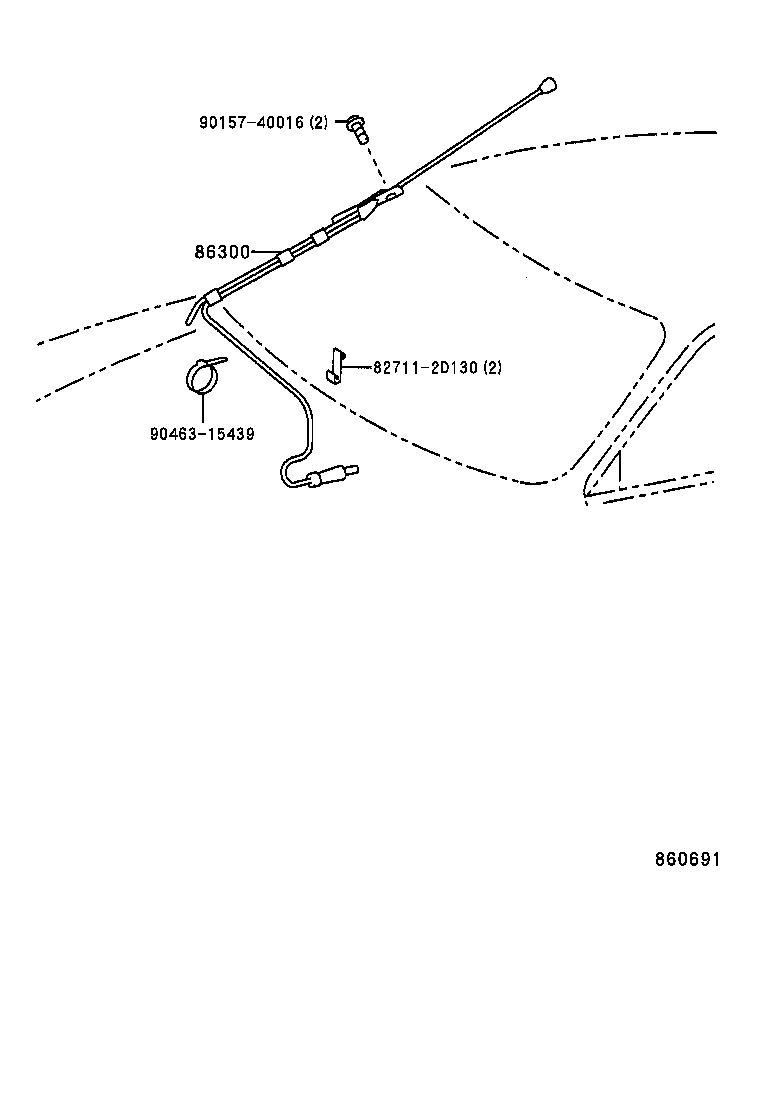

diagram 827112D130 86300 9015740016 9046315439
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-20880

ST191..JPP..XL

 1
86300-20881

ST191..JPP..XL

 1
Common parts
82711-2D130
90157-40016
90463-15439

(9203- )JPP

Click highlighted areas on diagram

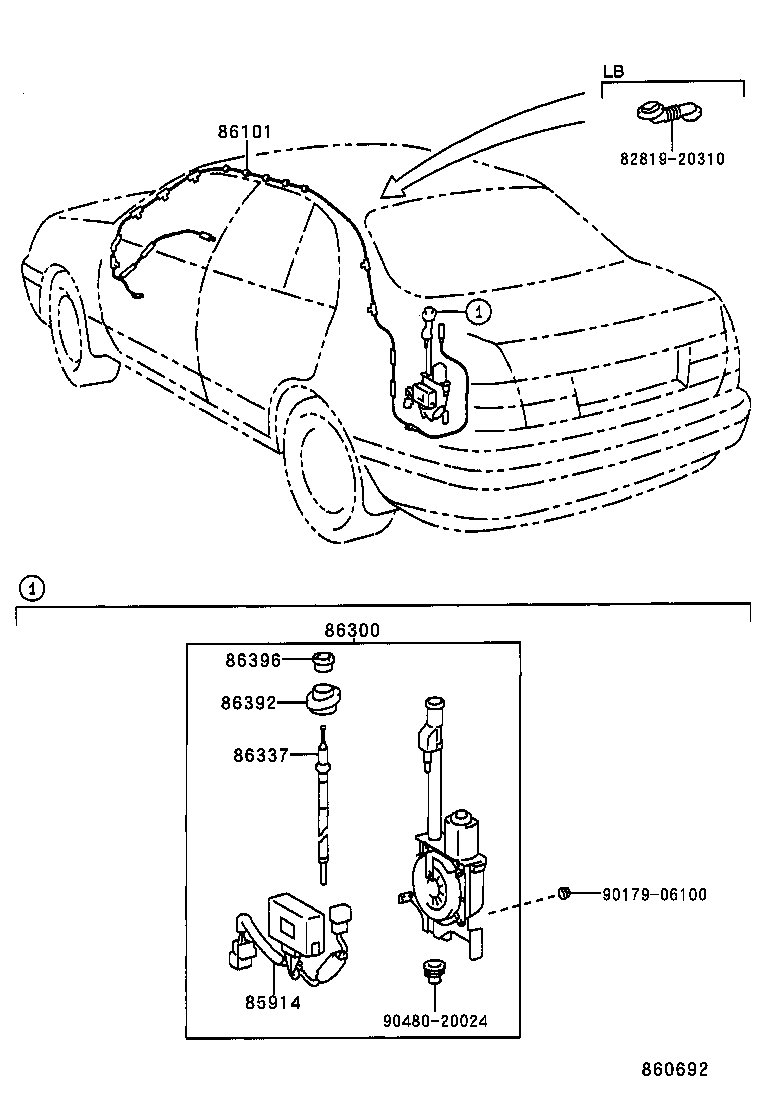

diagram 8281920310 85914 86101 86300 86337 86392 86396 9017906100 9048020024
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-20880

ST191..JPP..XL

 1
86300-20881

ST191..JPP..XL

 1
Common parts
82819-20310
90179-06100
90480-20024
