ST191R-AEPDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9203- )ST191..JPP..RHD

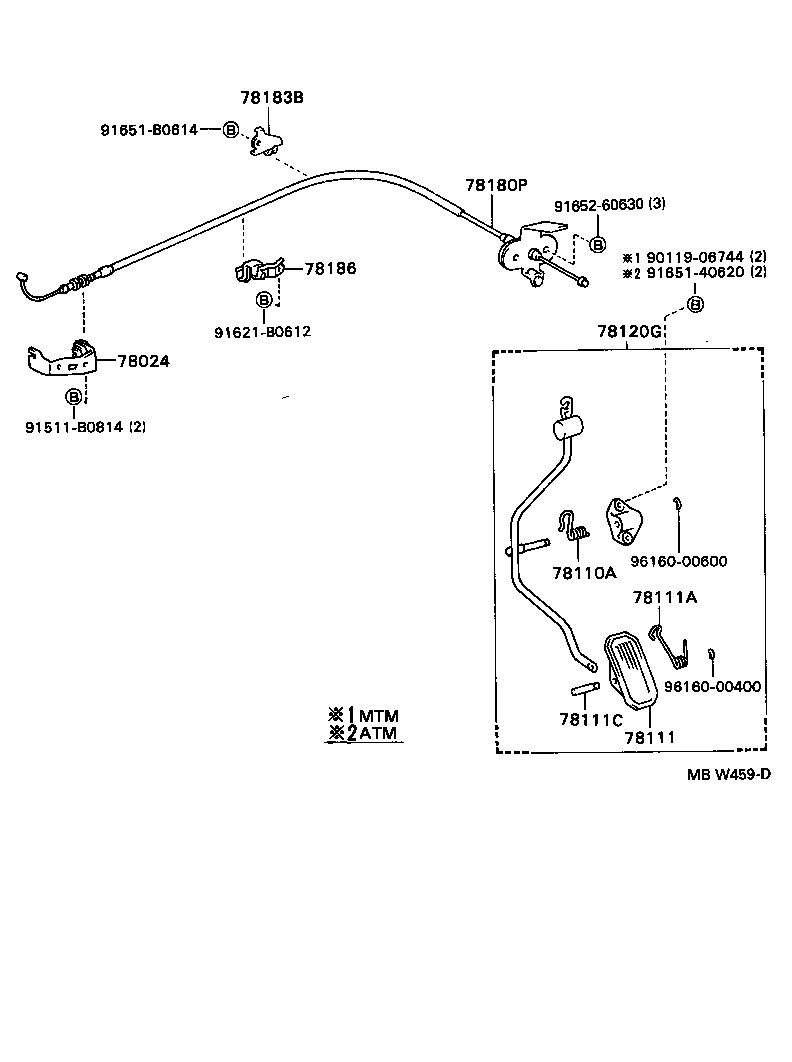

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78183B 78186 9011906744 91511B0814 91621B0612 9165140620 91651B0614 9165260630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20140

ST191..JPP

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18048

AT190..JPP..RHD..MTM;ST191..JPP..RHD..ATM

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AT190,CT190,ST191..JPP

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AT190,ST191..JPP..RHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT190,CT190,ST191..JPP

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20540

ST191..JPP..RHD..ATM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B880

ST191..JPP..RHD

 1
78180-2B881

ST191..JPP..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20170

AT190,ST191..JPP..RHD

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-20150

ST191..JPP..ATM;ST191..JPP..LHD..MTM

 1
Common parts
90119-06744
91511-B0814
91621-B0612
91651-40620
91651-B0614
91652-60630
96160-00400
96160-00600
