ST191R-AEPDK (1992)
Toyota Corona (Sed/Lb)

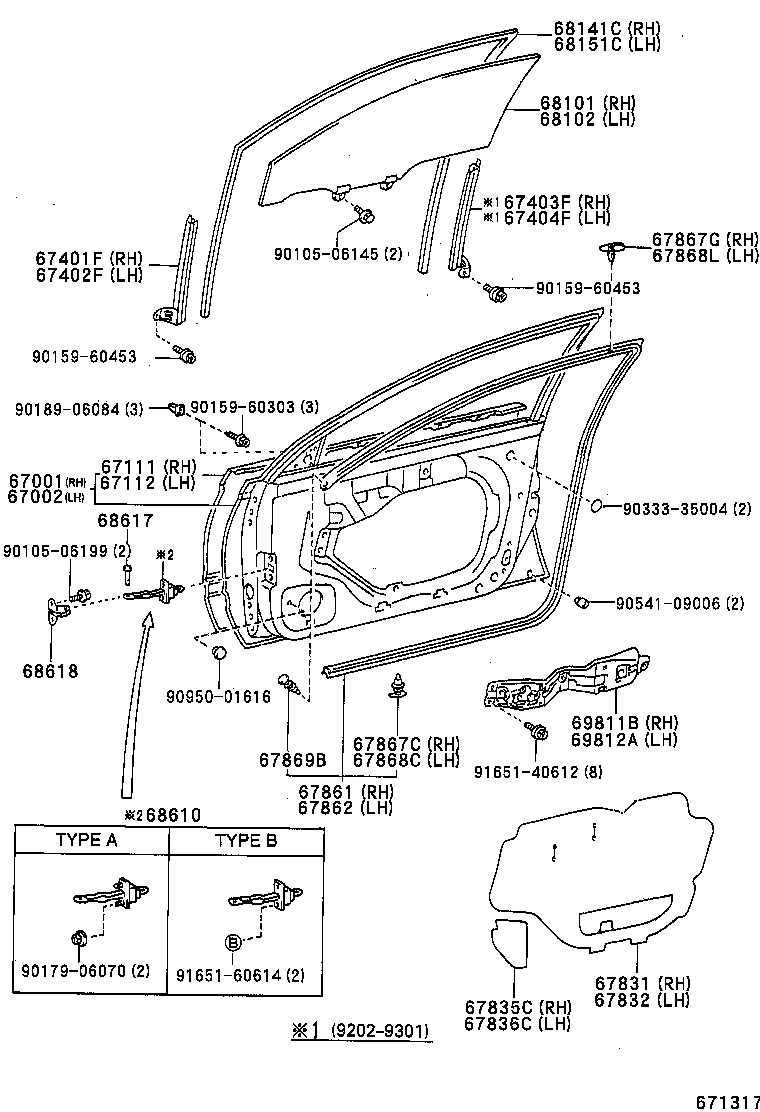

ILLUST NO. 2 OF 3(9203- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20882 |
AT190,CT190,ST191..JPP |
1 | ||
| 67001-20880 |
AT190,CT190,ST191..JPP |
1 | ||
| 67001-21080 |
AT190,ST191..JPP |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-21060 |
AT190,ST191..JPP |
1 | ||
| 67002-20842 |
AT190,CT190,ST191..JPP |
1 | ||
| 67002-20840 |
AT190,CT190,ST191..JPP |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20320 |
AT190,CT190,ST191..JPP |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-20220 |
AT190,CT190,ST191..JPP |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-20210 |
AT190,CT190,ST191..JPP |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-20110 |
AT190,CT190,ST191..JPP |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-20040 |
AT190,CT190,ST191..JPP W(DOOR SPEAKER) |
1 | ||
| 67801-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-20030 |
AT190,CT190,ST191..JPP W(DOOR SPEAKER) |
1 | ||
| 67802-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH | ||||
| 67836-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20350 |
AT190,CT190,ST191..JPP |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20350 |
AT190,CT190,ST191..JPP |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AT190,CT190,ST191..JPP |
11 | ||
| 67868-20040 |
AT190,CT190,ST191..JPP |
11 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67877-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20040 |
AT190,CT190,ST191..JPP |
11 | ||
| 67867-12150 |
AT190,CT190,ST191..JPP |
11 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67877-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AT190,CT190,ST191..JPP |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-20150 |
AT190,CT190,ST191..JPP *TEM,T=3.5,BLUE |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-20150 |
AT190,CT190,ST191..JPP *TEM,T=3.5,BLUE |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-20240 |
AT190,CT190,ST191..JPP |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-20150 |
AT190,CT190,ST191..JPP TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 68610-20151 |
AT190,CT190,ST191..JPP TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 68610-20110 |
AT190,CT190,ST191..JPP TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20030 |
AT190,CT190,ST191..JPP |
2 | ||
| 68617-20011 |
AT190,CT190,ST191..JPP |
2 | ||
| 68617-20011 |
AT190,CT190,ST191..JPP |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-20010 |
AT190,CT190,ST191..JPP |
2 | ||
| 69811B - PLATE, FRONT DOOR WINDOW REGULATOR BASE, RH | ||||
| 69811-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 69811-20100 |
AT190,ST191..JPP |
1 | ||
| 69812A - PLATE, FRONT DOOR WINDOW REGULATOR BASE, RH | ||||
| 69812-20060 |
AT190,CT190,ST191..JPP |
1 | ||
| 69812-20070 |
AT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90105-06145 | ||||
| 90105-06199 | ||||
| 90159-60303 | ||||
| 90159-60453 | ||||
| 90179-06070 | ||||
| 90189-06084 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 90950-01616 | ||||
| 91651-40612 | ||||
| 91651-60614 | ||||

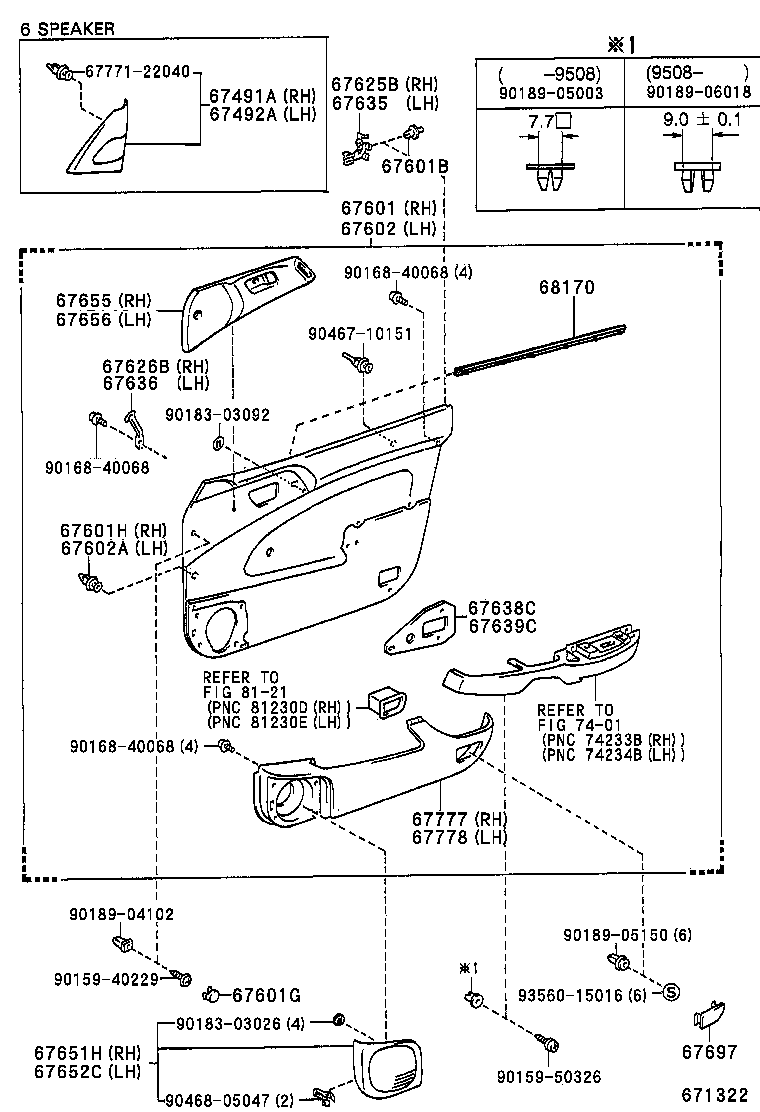

ILLUST NO. 2 OF 2(9203- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20250 |
AT190,CT190,ST191..JPP |
1 | ||
| 67491-20260 |
AT190,CT190,ST191..JPP W(MANUAL *RCM) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20270 |
AT190,CT190,ST191..JPP |
1 | ||
| 67492-20280 |
AT190,CT190,ST191..JPP W(DOOR MIRROR) |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2D430J1 |
AT190,ST191..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 67650-2D430C1 |
AT190,ST191..JPP..XL BLACK,TRIM2# |
1 | ||
| 67650-2D431C8 |
AT190,ST191..JPP..XL BLACK,TRIM2# |
1 | ||
| 67650-2D431J8 |
AT190,ST191..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 67610-2G420B0 |
AT190,ST191..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2G420J0 |
AT190,ST191..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 67610-2G420B0 |
ST191..JPP..XL SHADOW GRAY |
1 | ||
| 67610-2G420J0 |
ST191..JPP..XL DK.BLUE |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0707122 |
AT190,CT190,ST191..JPP..SED BLACK,TRIM2#,8# |
4 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01503C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
2 | ||
| 90950-01503P0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 90950-01503J0 |
AT190,CT190,ST191..JPP..SED DARK BLUE,TRIM8# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-20110 |
AT190,ST191..JPP |
4 | ||
| 67771-20110 |
AT190,CT190,ST191..JPP |
5 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2H590J1 |
AT190,ST191..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 67620-2H590C1 |
AT190,ST191..JPP..XL BLACK,TRIM2# |
1 | ||
| 67620-2H591C8 |
AT190,ST191..JPP..XL BLACK,TRIM2# |
1 | ||
| 67620-2H591J8 |
AT190,ST191..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 67620-2L390B0 |
AT190,ST191..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2L390J0 |
AT190,ST191..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 67620-2L390J0 |
ST191..JPP..XL DK.BLUE |
1 | ||
| 67620-2L390B0 |
ST191..JPP..XL SHADOW GRAY |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-20110 |
AT190,ST191..JPP |
4 | ||
| 67771-20110 |
AT190,CT190,ST191..JPP |
5 | ||
| 67625B - BRACKET, DOOR TRIM, NO.1 RH | ||||
| 67625-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 67626B - BRACKET, DOOR TRIM, NO.2 RH | ||||
| 67626-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 67635 - BRACKET, DOOR TRIM, NO.1 LH | ||||
| 67635-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 67636 - BRACKET, DOOR TRIM, NO.2 LH | ||||
| 67636-20020 |
AT190,CT190,ST191..JPP |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-20060C1 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67651-20050C0 |
AT190,CT190,ST191..JPP W(FABRIC SPEAKER GRILLE),BLACK,TRIM2# |
1 | ||
| 67651-20050C0 |
ST191..JPP..RHD W(FABRIC SPEAKER GRILLE),BLACK,TRIM2# |
1 | ||
| 67651-20060J1 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 67651-20050J0 |
AT190,CT190,ST191..JPP..SED W(FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8# |
1 | ||
| 67651-20050J0 |
ST191..JPP..RHD..SED W(FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8# |
1 | ||
| 67651-21010C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67651-21010B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 67651-21010J0 |
AT190,CT190,ST191..JPP..SED DK. BLUE,TRIM8# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-20040J0 |
AT190,CT190,ST191..JPP..SED W(FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8# |
1 | ||
| 67652-20040C0 |
AT190,CT190,ST191..JPP W(FABRIC SPEAKER GRILLE),BLACK,TRIM2# |
1 | ||
| 67652-20050C1 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67652-21020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67652-21020J0 |
AT190,CT190,ST191..JPP..SED DK. BLUE,TRIM8# |
1 | ||
| 67652-20040J0 |
ST191..JPP..RHD..SED W(FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8# |
1 | ||
| 67652-20040C0 |
ST191..JPP..RHD W(FABRIC SPEAKER GRILLE),BLACK,TRIM2# |
1 | ||
| 67652-20050J1 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 67652-21020B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 67697 - COVER, FRONT DOOR TRIM POCKET | ||||
| 67698-20040C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,LH |
1 | ||
| 67698-20040J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8#,LH |
1 | ||
| 67697-20080J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8#,RH |
1 | ||
| 67697-20080B1 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1#,RH |
1 | ||
| 67697-20080C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,RH |
1 | ||
| 67698-20040B1 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1#,LH |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-20190J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 67777-20190C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67777-20190B1 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-20120J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 67778-20120C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67778-20120B1 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-20050 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 68171-20060 |
AT190,CT190,ST191..JPP RH |
1 | ||
| Common parts | ||||
| 67771-22040 | ||||
| 90159-40229 | ||||
| 90159-50326 | ||||
| 90168-40068 | ||||
| 90183-03026 | ||||
| 90183-03092 | ||||
| 90189-04102 | ||||
| 90189-05003 | ||||
| 90189-05150 | ||||
| 90189-06018 | ||||
| 90467-10151 | ||||
| 90468-05047 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 7401 | ||||

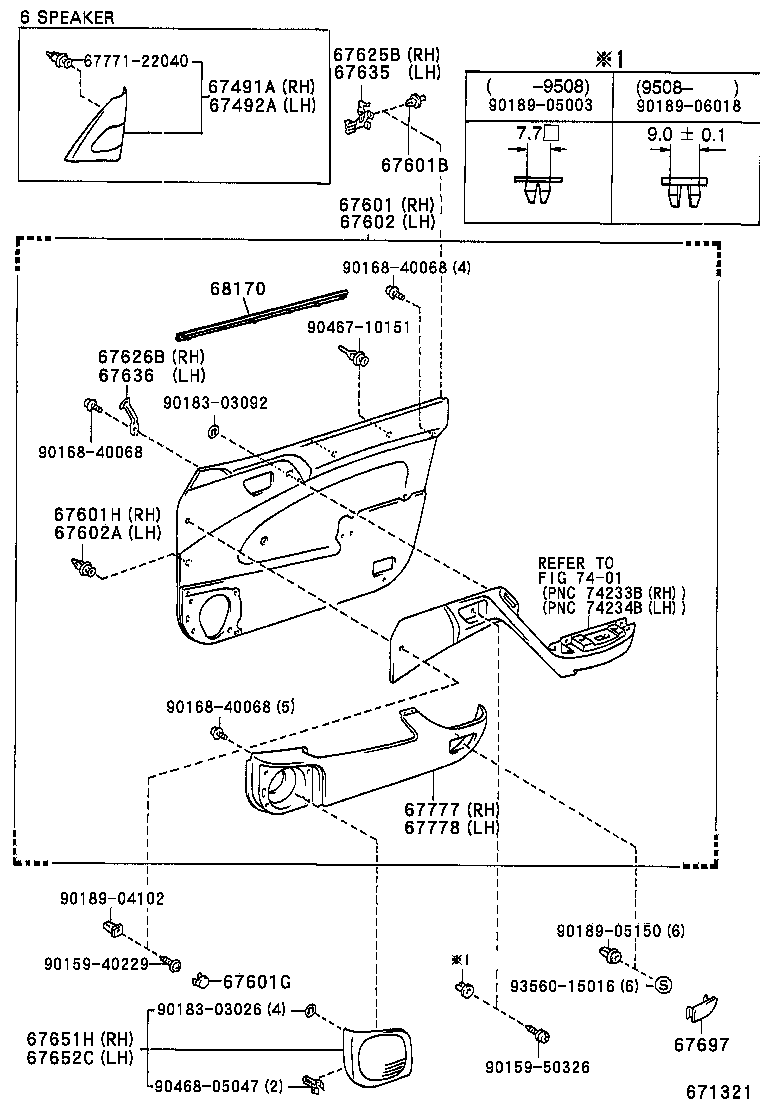

ILLUST NO. 2 OF 2(9203- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20250 |
AT190,CT190,ST191..JPP |
1 | ||
| 67491-20260 |
AT190,CT190,ST191..JPP W(MANUAL *RCM) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20270 |
AT190,CT190,ST191..JPP |
1 | ||
| 67492-20280 |
AT190,CT190,ST191..JPP W(DOOR MIRROR) |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2D430J1 |
AT190,ST191..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 67650-2D430C1 |
AT190,ST191..JPP..XL BLACK,TRIM2# |
1 | ||
| 67650-2D431C8 |
AT190,ST191..JPP..XL BLACK,TRIM2# |
1 | ||
| 67650-2D431J8 |
AT190,ST191..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 67610-2G420B0 |
AT190,ST191..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2G420J0 |
AT190,ST191..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 67610-2G420B0 |
ST191..JPP..XL SHADOW GRAY |
1 | ||
| 67610-2G420J0 |
ST191..JPP..XL DK.BLUE |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0707122 |
AT190,CT190,ST191..JPP..SED BLACK,TRIM2#,8# |
4 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01503C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
2 | ||
| 90950-01503P0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 90950-01503J0 |
AT190,CT190,ST191..JPP..SED DARK BLUE,TRIM8# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-20110 |
AT190,ST191..JPP |
4 | ||
| 67771-20110 |
AT190,CT190,ST191..JPP |
5 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2H590J1 |
AT190,ST191..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 67620-2H590C1 |
AT190,ST191..JPP..XL BLACK,TRIM2# |
1 | ||
| 67620-2H591C8 |
AT190,ST191..JPP..XL BLACK,TRIM2# |
1 | ||
| 67620-2H591J8 |
AT190,ST191..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 67620-2L390B0 |
AT190,ST191..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2L390J0 |
AT190,ST191..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 67620-2L390J0 |
ST191..JPP..XL DK.BLUE |
1 | ||
| 67620-2L390B0 |
ST191..JPP..XL SHADOW GRAY |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-20110 |
AT190,ST191..JPP |
4 | ||
| 67771-20110 |
AT190,CT190,ST191..JPP |
5 | ||
| 67625B - BRACKET, DOOR TRIM, NO.1 RH | ||||
| 67625-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 67626B - BRACKET, DOOR TRIM, NO.2 RH | ||||
| 67626-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 67635 - BRACKET, DOOR TRIM, NO.1 LH | ||||
| 67635-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 67636 - BRACKET, DOOR TRIM, NO.2 LH | ||||
| 67636-20020 |
AT190,CT190,ST191..JPP |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-20060C1 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67651-20050C0 |
AT190,CT190,ST191..JPP W(FABRIC SPEAKER GRILLE),BLACK,TRIM2# |
1 | ||
| 67651-20050C0 |
ST191..JPP..RHD W(FABRIC SPEAKER GRILLE),BLACK,TRIM2# |
1 | ||
| 67651-20060J1 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 67651-20050J0 |
AT190,CT190,ST191..JPP..SED W(FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8# |
1 | ||
| 67651-20050J0 |
ST191..JPP..RHD..SED W(FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8# |
1 | ||
| 67651-21010C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67651-21010B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 67651-21010J0 |
AT190,CT190,ST191..JPP..SED DK. BLUE,TRIM8# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-20040J0 |
AT190,CT190,ST191..JPP..SED W(FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8# |
1 | ||
| 67652-20040C0 |
AT190,CT190,ST191..JPP W(FABRIC SPEAKER GRILLE),BLACK,TRIM2# |
1 | ||
| 67652-20050C1 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67652-21020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67652-21020J0 |
AT190,CT190,ST191..JPP..SED DK. BLUE,TRIM8# |
1 | ||
| 67652-20040J0 |
ST191..JPP..RHD..SED W(FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8# |
1 | ||
| 67652-20040C0 |
ST191..JPP..RHD W(FABRIC SPEAKER GRILLE),BLACK,TRIM2# |
1 | ||
| 67652-20050J1 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 67652-21020B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 67697 - COVER, FRONT DOOR TRIM POCKET | ||||
| 67698-20040C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,LH |
1 | ||
| 67698-20040J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8#,LH |
1 | ||
| 67697-20080J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8#,RH |
1 | ||
| 67697-20080B1 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1#,RH |
1 | ||
| 67697-20080C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,RH |
1 | ||
| 67698-20040B1 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1#,LH |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-20190J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 67777-20190C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67777-20190B1 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-20120J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 67778-20120C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 67778-20120B1 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-20050 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 68171-20060 |
AT190,CT190,ST191..JPP RH |
1 | ||
| Common parts | ||||
| 67771-22040 | ||||
| 90159-40229 | ||||
| 90159-50326 | ||||
| 90168-40068 | ||||
| 90183-03026 | ||||
| 90183-03092 | ||||
| 90189-04102 | ||||
| 90189-05003 | ||||
| 90189-05150 | ||||
| 90189-06018 | ||||
| 90467-10151 | ||||
| 90468-05047 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8121 | ||||

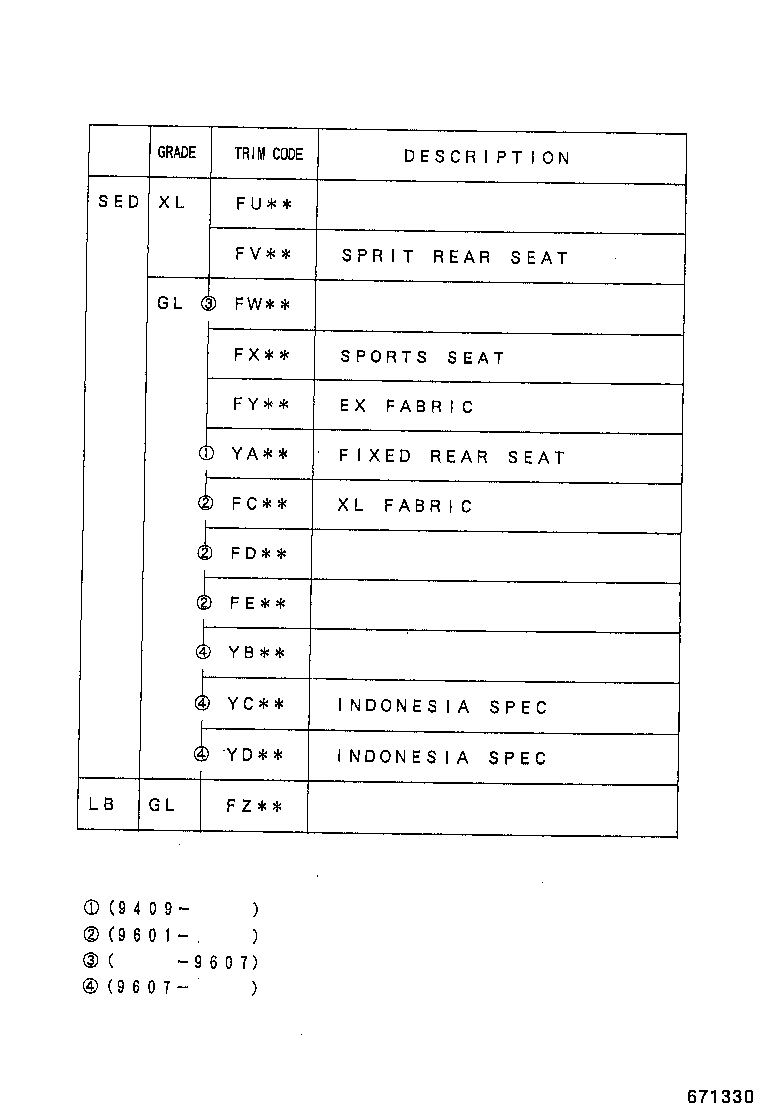

ILLUST NO. 3 OF 3(9402- )JPP
| Part # | Description | Qty | Price |
|---|

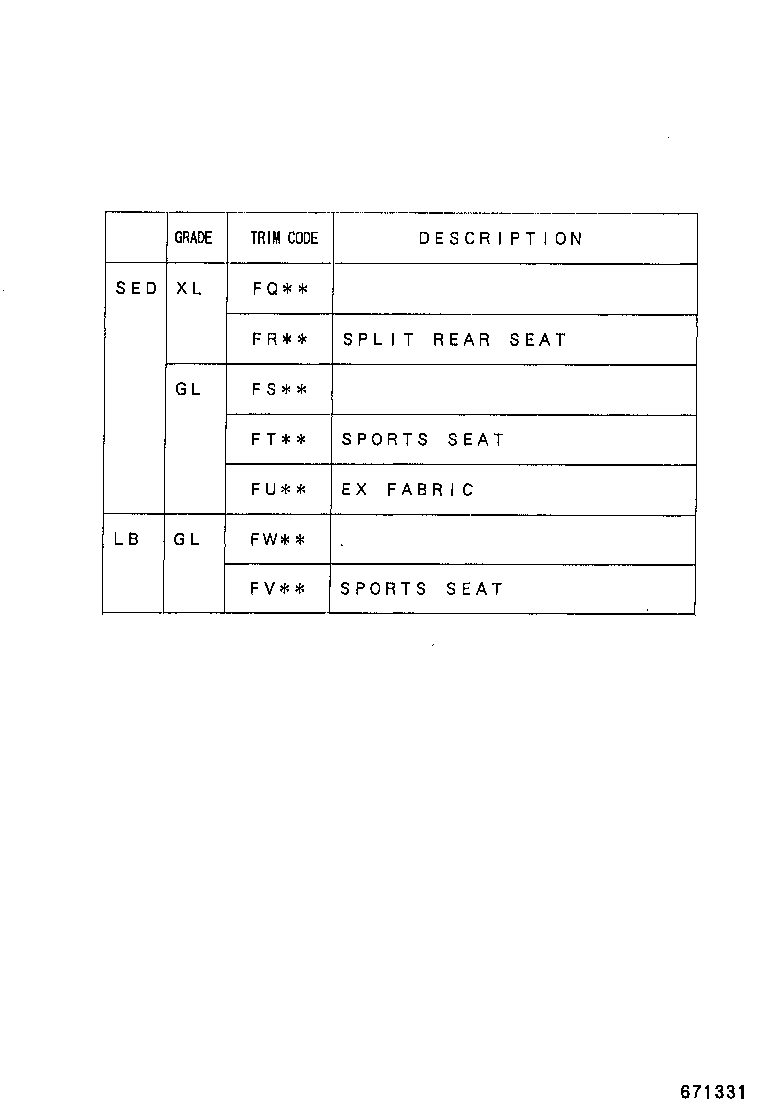

ILLUST NO. 3 OF 3(9203-9402)JPP
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
