ST191R-AEPDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

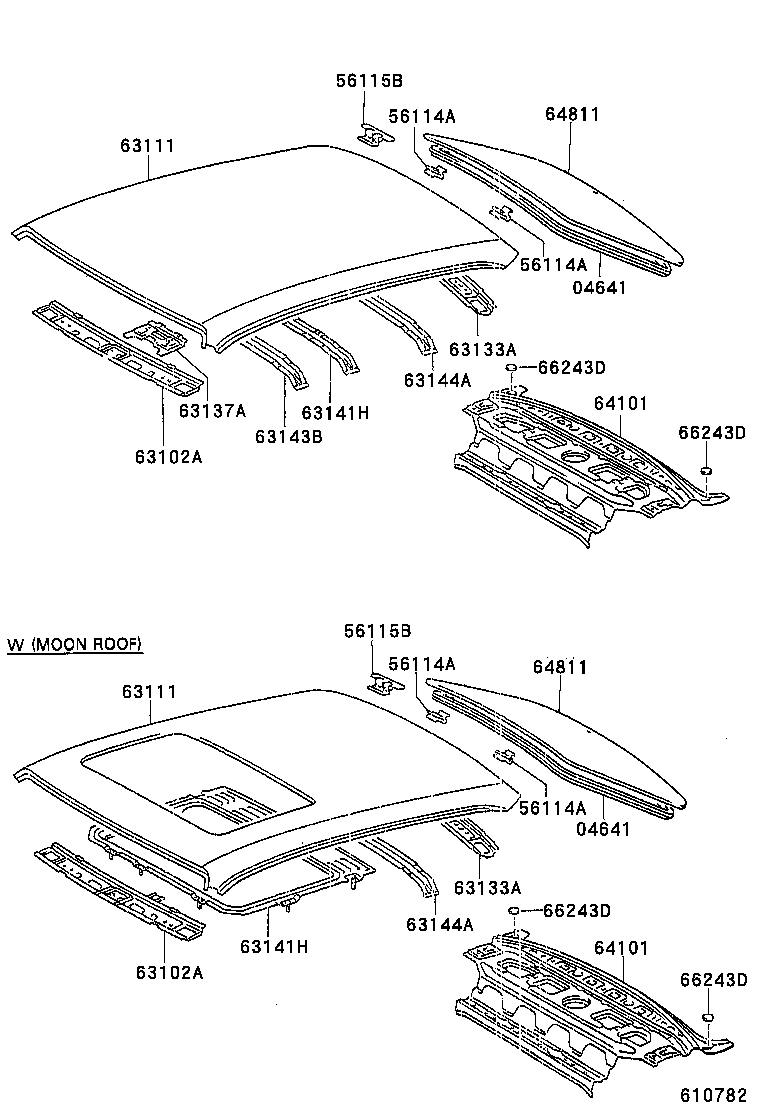

ILLUST NO. 1 OF 2(9203- )JPP..SED

Click highlighted areas on diagram

diagram 04641 04641 56114A 56114A 56114A 56114A 56115B 56115B 63102A 63102A 63111 63111 63133A 63133A 63137A 63141H 63141H 63143B 63144A 63144A 64101 64101 64811 64811 66243D 66243D 66243D 66243D
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-12010

AT190,CT190,ST191..JPP..SED

 1
04641 - DAM KIT, BACK WINDOW GLASS
04562-12010

AT190,CT190,ST191..JPP..SED

 1
56114A - RETAINER, BACK WINDOW GLASS
56114-20040

AT190,CT190,ST191..JPP..SED

 2
56114-20010

AT190,CT190,ST191..JPP..SED

 2
56114A - RETAINER, BACK WINDOW GLASS
56114-20040

AT190,CT190,ST191..JPP..SED

 2
56114-20010

AT190,CT190,ST191..JPP..SED

 2
56114A - RETAINER, BACK WINDOW GLASS
56114-20040

AT190,CT190,ST191..JPP..SED

 2
56114-20010

AT190,CT190,ST191..JPP..SED

 2
56114A - RETAINER, BACK WINDOW GLASS
56114-20040

AT190,CT190,ST191..JPP..SED

 2
56114-20010

AT190,CT190,ST191..JPP..SED

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-20060

AT190,CT190,ST191..JPP..SED

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-20060

AT190,CT190,ST191..JPP..SED

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20230

AT190,CT190,ST191..JPP

 1
63102-20230

ST191..JPP..XL

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20230

AT190,CT190,ST191..JPP

 1
63102-20230

ST191..JPP..XL

 1
63111 - PANEL, ROOF
63111-20460

AT190,CT190,ST191..JPP..SED

 1
63111 - PANEL, ROOF
63111-20460

AT190,CT190,ST191..JPP..SED

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-20200

AT190,CT190,ST191..JPP..SED

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-20200

AT190,CT190,ST191..JPP..SED

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-20150

AT190,CT190,ST191..JPP

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-20150

AT190,CT190,ST191..JPP

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-20100

AT190,CT190,ST191..JPP

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-20040

AT190,CT190,ST191..JPP

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-20040

AT190,CT190,ST191..JPP

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20660

ST191..JPP..XL

W(REAR SPLIT SEAT)

 1
64101-20660

AT190,ST191..JPP..RHD..XL

W(REAR SPLIT SEAT)

 1
64101-20570

ST191..JPP..XL

 1
64101-20570

AT190,ST191..JPP..RHD..XL

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20660

ST191..JPP..XL

W(REAR SPLIT SEAT)

 1
64101-20660

AT190,ST191..JPP..RHD..XL

W(REAR SPLIT SEAT)

 1
64101-20570

ST191..JPP..XL

 1
64101-20570

AT190,ST191..JPP..RHD..XL

 1
64811 - GLASS, BACK WINDOW
64811-2B481

AT190,CT190,ST191..JPP..SED

*EHT,T=3.5,BLUE

 1
64811-2B471

AT190,ST191..JPP..SED

*TEM,T=3.5,BLUE

 1
64811 - GLASS, BACK WINDOW
64811-2B481

AT190,CT190,ST191..JPP..SED

*EHT,T=3.5,BLUE

 1
64811-2B471

AT190,ST191..JPP..SED

*TEM,T=3.5,BLUE

 1
66243D - PROTECTOR, REAR BODY, NO.1
66243-20010

AT190,CT190,ST191..JPP..SED

 2
66243D - PROTECTOR, REAR BODY, NO.1
66243-20010

AT190,CT190,ST191..JPP..SED

 2
66243D - PROTECTOR, REAR BODY, NO.1
66243-20010

AT190,CT190,ST191..JPP..SED

 2
66243D - PROTECTOR, REAR BODY, NO.1
66243-20010

AT190,CT190,ST191..JPP..SED

 2

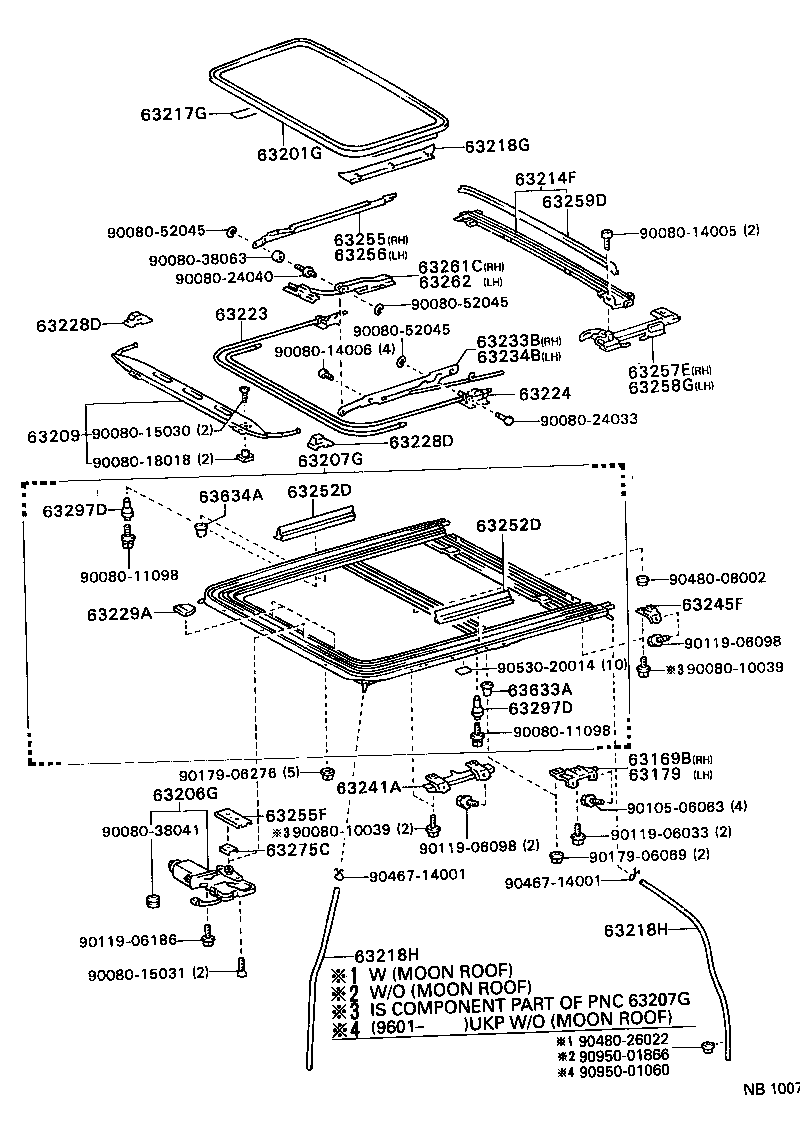

ILLUST NO. 2 OF 2(9203- )JPP

Click highlighted areas on diagram

diagram 63169B 63179 63201G 63206G 63207G 63209 63214F 63217G 63218G 63218H 63218H 63223 63224 63228D 63228D 63229A 63233B 63234B 63241A 63245F 63252D 63252D 63255 63255F 63256 63257E 63258G 63259D 63261C 63262 63275C 63297D 63297D 63633A 63634A 9008010039 9008010039 9008011098 9008011098 9008014005 9008014006 9008015030 9008015031 9008018018 9008024033 9008024040 9008038041 9008038063 9008052045 9008052045 9008052045 9010506063 9011906033 9011906098 9011906098 9011906186 9017906069 9017906276 9046714001 9046714001 9048008002 9048026022 9053020014 9095001060 9095001866
Part # Description Qty Price
Common parts
90080-10039
90080-11098
90080-14005
90080-14006
90080-15030
90080-15031
90080-18018
90080-24033
90080-24040
90080-38041
90080-38063
90080-52045
90105-06063
90119-06033
90119-06098
90119-06186
90179-06069
90179-06276
90467-14001
90480-08002
90480-26022
90530-20014
90950-01060
90950-01866
