ST191R-AEPDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

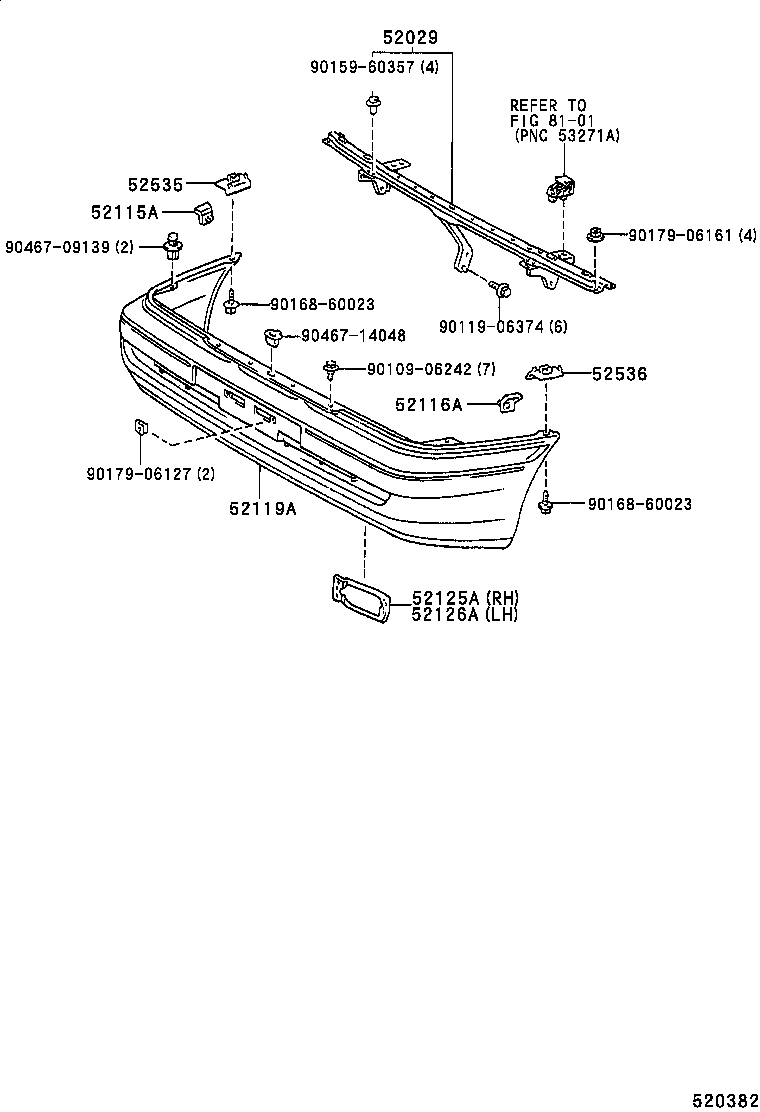

(9203- )JPP

Click highlighted areas on diagram

W(LICENSE PLATE SPACE(550 X 130))

diagram 52029 52115A 52116A 52119A 52125A 52126A 52535 52536 8101 9010906242 9011906374 9015960357 9016860023 9016860023 9017906127 9017906161 9046709139 9046714048
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-20030

AT190,CT190,ST191..JPP

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20300

AT190,CT190,ST191..JPP

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20210

AT190,CT190,ST191..JPP

 1
52119A - COVER, FRONT BUMPER
52119-2B070

ST191..JPP..LB;AT190,ST191..JPP..RHD..XL

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20050

AT190,CT190,ST191..JPP

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20050

AT190,CT190,ST191..JPP

 1
Common parts
90109-06242
90119-06374
90159-60357
90168-60023
90179-06127
90179-06161
90467-09139
90467-14048
Linked diagrams
8101

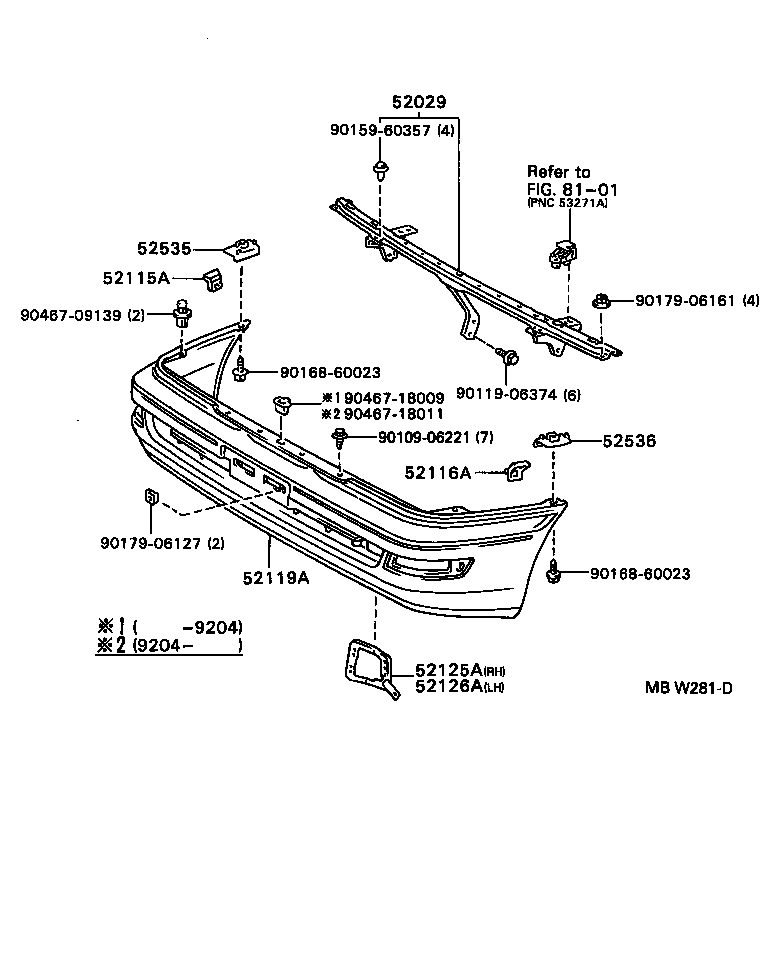

(9203-9402)JPP

Click highlighted areas on diagram

W(LICENSE PLATE SPACE(390 X 170))

diagram 52029 52115A 52116A 52119A 52125A 52126A 52535 52536 8101 9010906221 9011906374 9015960357 9016860023 9016860023 9017906127 9017906161 9046709139 9046718009 9046718011
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-20030

AT190,CT190,ST191..JPP

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20300

AT190,CT190,ST191..JPP

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20210

AT190,CT190,ST191..JPP

 1
52119A - COVER, FRONT BUMPER
52119-2B070

ST191..JPP..LB;AT190,ST191..JPP..RHD..XL

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20050

AT190,CT190,ST191..JPP

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20050

AT190,CT190,ST191..JPP

 1
Common parts
90109-06221
90119-06374
90159-60357
90168-60023
90179-06127
90179-06161
90467-09139
90467-18009
90467-18011
Linked diagrams
8101

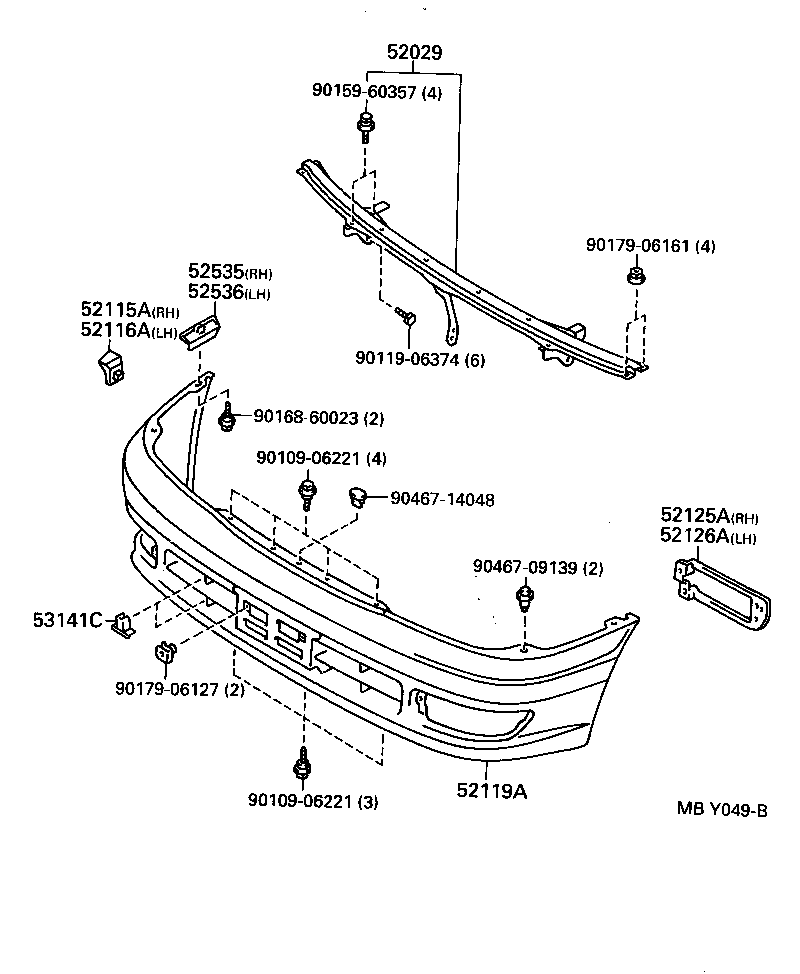

(9402- )JPP

Click highlighted areas on diagram

diagram 52029 52115A 52116A 52119A 52125A 52126A 52535 52536 53141C 9010906221 9010906221 9011906374 9015960357 9016860023 9017906127 9017906161 9046709139 9046714048
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-20030

AT190,CT190,ST191..JPP

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20300

AT190,CT190,ST191..JPP

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20210

AT190,CT190,ST191..JPP

 1
52119A - COVER, FRONT BUMPER
52119-2B070

ST191..JPP..LB;AT190,ST191..JPP..RHD..XL

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20050

AT190,CT190,ST191..JPP

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20050

AT190,CT190,ST191..JPP

 1
Common parts
90109-06221
90119-06374
90159-60357
90168-60023
90179-06127
90179-06161
90467-09139
90467-14048
