ST191R-AEPDK (1992)
Toyota Corona (Sed/Lb)

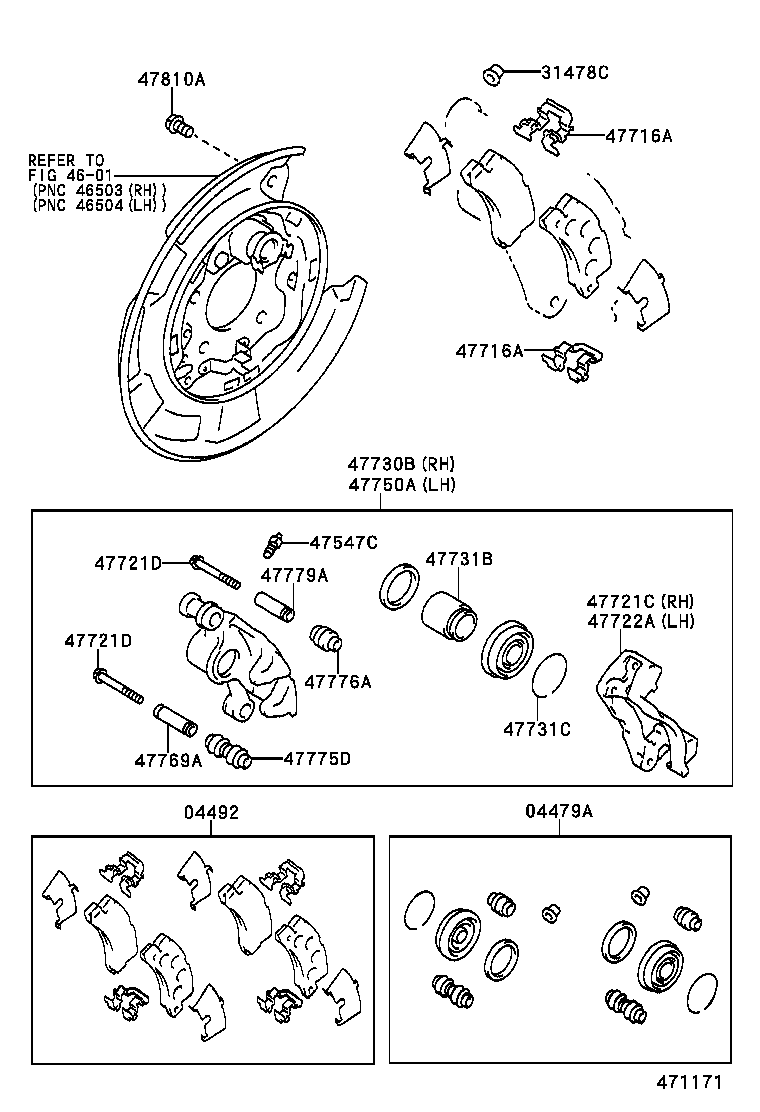

ILLUST NO. 1 OF 2(9402- )ST191..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-20090 |
ST191..JPP |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-20080 |
ST191..JPP |
1 | ||
| 04492-20100 |
ST191..JPP |
1 | ||
| 04492-20140 |
ST191..JPP |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ST191..JPP |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ST191..JPP |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-12020 |
ST191..JPP |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-12020 |
ST191..JPP |
4 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-20310 |
ST191..JPP |
1 | ||
| 47721-20430 |
ST191..JPP |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90109-08098 |
ST191..JPP *8-1.25PX56-15 |
2 | ||
| 90119-08431 |
ST191..JPP *8-1.25PX62-20 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90109-08098 |
ST191..JPP *8-1.25PX56-15 |
2 | ||
| 90119-08431 |
ST191..JPP *8-1.25PX62-20 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-20310 |
ST191..JPP |
1 | ||
| 47721-20430 |
ST191..JPP |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-20420 |
ST191..JPP |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-20110 |
ST191..JPP |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-45001 |
ST191..JPP |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-20420 |
ST191..JPP |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-28010 |
ST191..JPP |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-14010 |
ST191..JPP |
2 | ||
| 47776A - BOOT, MAIN PIN(FOR REAR DISC BRAKE) | ||||
| 47776-12010 |
ST191..JPP |
2 | ||
| 47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47779-12010 |
ST191..JPP |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
ST191..JPP |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
ILLUST NO. 2 OF 2(9203- )ST191..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-32010 |
ST191..JPP |
1 | ||
| 04466-20020 |
ST191..JPP |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-32020 |
ST191..JPP |
1 | ||
| 04946-12020 |
ST191..JPP |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-12020 |
ST191..JPP |
1 | ||

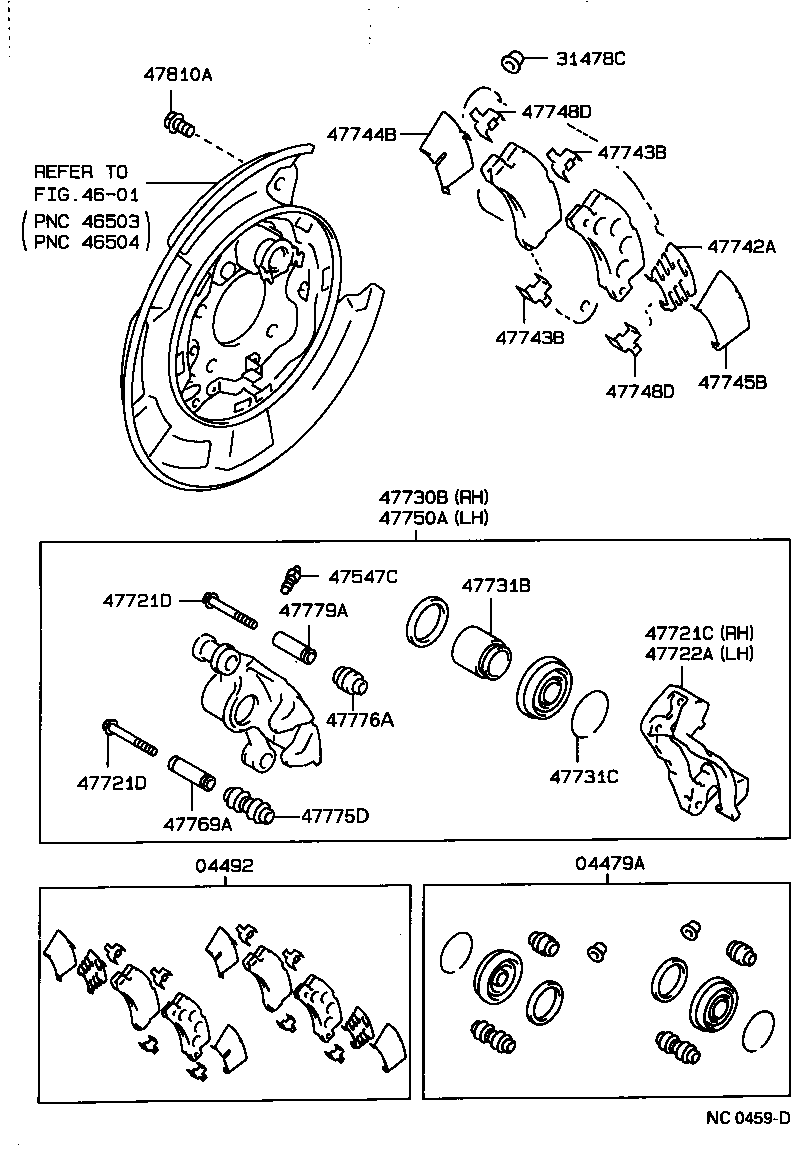

ILLUST NO. 1 OF 2(9203-9402)ST191..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-20090 |
ST191..JPP |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-20080 |
ST191..JPP |
1 | ||
| 04492-20100 |
ST191..JPP |
1 | ||
| 04492-20140 |
ST191..JPP |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ST191..JPP |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ST191..JPP |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-20310 |
ST191..JPP |
1 | ||
| 47721-20430 |
ST191..JPP |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90109-08098 |
ST191..JPP *8-1.25PX56-15 |
2 | ||
| 90119-08431 |
ST191..JPP *8-1.25PX62-20 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90109-08098 |
ST191..JPP *8-1.25PX56-15 |
2 | ||
| 90119-08431 |
ST191..JPP *8-1.25PX62-20 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-20310 |
ST191..JPP |
1 | ||
| 47721-20430 |
ST191..JPP |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-20420 |
ST191..JPP |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-20110 |
ST191..JPP |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-45001 |
ST191..JPP |
2 | ||
| 47742A - SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE) | ||||
| 47742-32090 |
ST191..JPP |
2 | ||
| 47743B - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47743-12060 |
ST191..JPP |
4 | ||
| 47743B - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47743-12060 |
ST191..JPP |
4 | ||
| 47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE) | ||||
| 47744-12080 |
ST191..JPP |
2 | ||
| 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47745-32090 |
ST191..JPP |
2 | ||
| 47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47748-12110 |
ST191..JPP |
4 | ||
| 47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47748-12110 |
ST191..JPP |
4 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-20420 |
ST191..JPP |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-28010 |
ST191..JPP |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-14010 |
ST191..JPP |
2 | ||
| 47776A - BOOT, MAIN PIN(FOR REAR DISC BRAKE) | ||||
| 47776-12010 |
ST191..JPP |
2 | ||
| 47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47779-12010 |
ST191..JPP |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
ST191..JPP |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
