ST191R-AEPDK (1992)
Toyota Corona (Sed/Lb)
(9203- )ST191..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 04446-20080 |
AT190,CT190,ST191..JPP |
1 | ||
| 04446-20031 |
ST191..JPP |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-32030 |
ST191..JPP |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
AT190,CT190,ST191..JPP |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-20040 |
CT190,ST191..JPP |
1 | ||
| 44305-20041 |
CT190,ST191..JPP |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-32030 |
ST191..JPP |
1 | ||
| 44308-22050 |
ST191..JPP |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-20060 |
ST191..JPP |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
AT190,CT190,ST191..JPP |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
AT190,CT190,ST191..JPP |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
AT190,CT190,ST191..JPP |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
AT190,CT190,ST191..JPP NO MARK |
1 | ||
| 44313-22050 |
AT190,CT190,ST191..JPP MARK 1 |
1 | ||
| 44313-22060 |
AT190,CT190,ST191..JPP MARK 2 |
1 | ||
| 44313-22080 |
AT190,CT190,ST191..JPP MARK 4 |
1 | ||
| 44313-22070 |
AT190,CT190,ST191..JPP MARK 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-20380 |
ST191..JPP |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
AT190,CT190,ST191..JPP |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
AT190,CT190,ST191..JPP |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
AT190,CT190,ST191..JPP |
1 | ||
| 90301-53006 |
AT190,CT190,ST191..JPP |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-30110 |
ST191..JPP MARK 1 |
1 | ||
| 44325-30120 |
ST191..JPP MARK 2 |
1 | ||
| 44325-30130 |
ST191..JPP MARK 3 |
1 | ||
| 44325-30100 |
ST191..JPP NO MARK |
1 | ||
| 44325-30140 |
ST191..JPP MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
AT190,CT190,ST191..JPP L=28,OD=4.0 |
1 | ||
| 90250-04049 |
AT190,CT190,ST191..JPP L=43,OD=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
AT190,CT190,ST191..JPP L=28,OD=4.0 |
1 | ||
| 90250-04049 |
AT190,CT190,ST191..JPP L=43,OD=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-20250 |
ST191..JPP MARK A |
1 | ||
| 44330-20270 |
ST191..JPP MARK C |
1 | ||
| 44330-20260 |
ST191..JPP MARK B |
1 | ||
| 44330-20280 |
ST191..JPP MARK D |
1 | ||
| 44330-20290 |
ST191..JPP MARK E |
1 | ||
| 44330-20300 |
ST191..JPP MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
AT190,CT190,ST191..JPP |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
CT190,ST191..JPP |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12030 |
ST191..JPP |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
CT190,ST191..JPP |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
AT190,CT190,ST191..JPP ID=19.5,OD=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
AT190,CT190,ST191..JPP |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
AT190,CT190,ST191..JPP INNER |
1 | ||
| 90301-52001 |
AT190,CT190,ST191..JPP OUTER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
AT190,CT190,ST191..JPP INNER |
1 | ||
| 90301-52001 |
AT190,CT190,ST191..JPP OUTER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
AT190,CT190,ST191..JPP |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
AT190,CT190,ST191..JPP |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
CT190,ST191..JPP |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
CT190,ST191..JPP |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12050 |
AT190,CT190,ST191..JPP L=14.989 |
10 | ||
| 44345-12040 |
AT190,CT190,ST191..JPP L=14.991 |
10 | ||
| 44345-12030 |
AT190,CT190,ST191..JPP L=14.993 |
10 | ||
| 44345-12020 |
AT190,CT190,ST191..JPP L=14.995 |
10 | ||
| 44345-12010 |
AT190,CT190,ST191..JPP L=14.997 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-20150 |
ST191..JPP |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-20010 |
CT190,ST191..JPP |
1 | ||
| 44413F - TUBE, PRESSURE FEED, NO.2 | ||||
| 44413-12150 |
ST191..JPP |
1 | ||
| 44413G - BOLT, UNION(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90401-16008 |
ST191..JPP |
1 | ||
| 96341-41603 |
ST191..JPP |
1 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
ST191..JPP |
2 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
ST191..JPP |
2 | ||
| Common parts | ||||
| 90119-06089 | ||||
| 90119-08035 | ||||
| 90178-12003 | ||||
| 90206-30002 | ||||

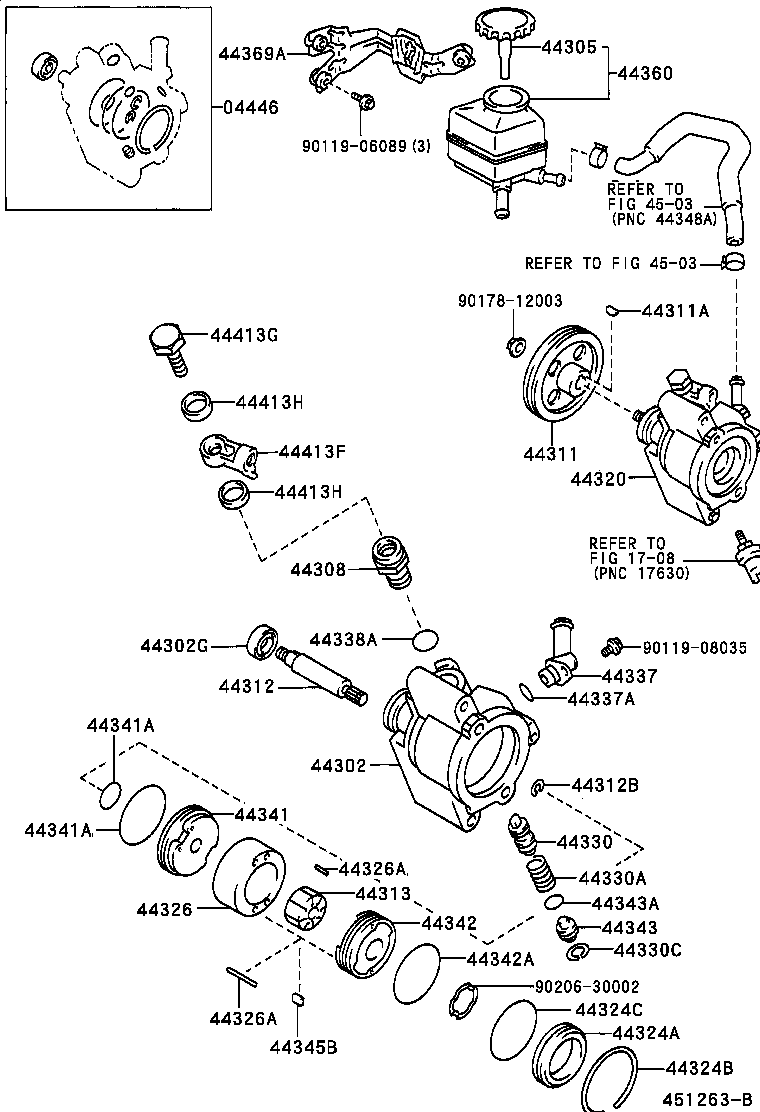

| Linked diagrams | ||||
| 1708 | ||||
| 4503 | ||||
