ST191R-AEPDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9203- )3SFE..JPP

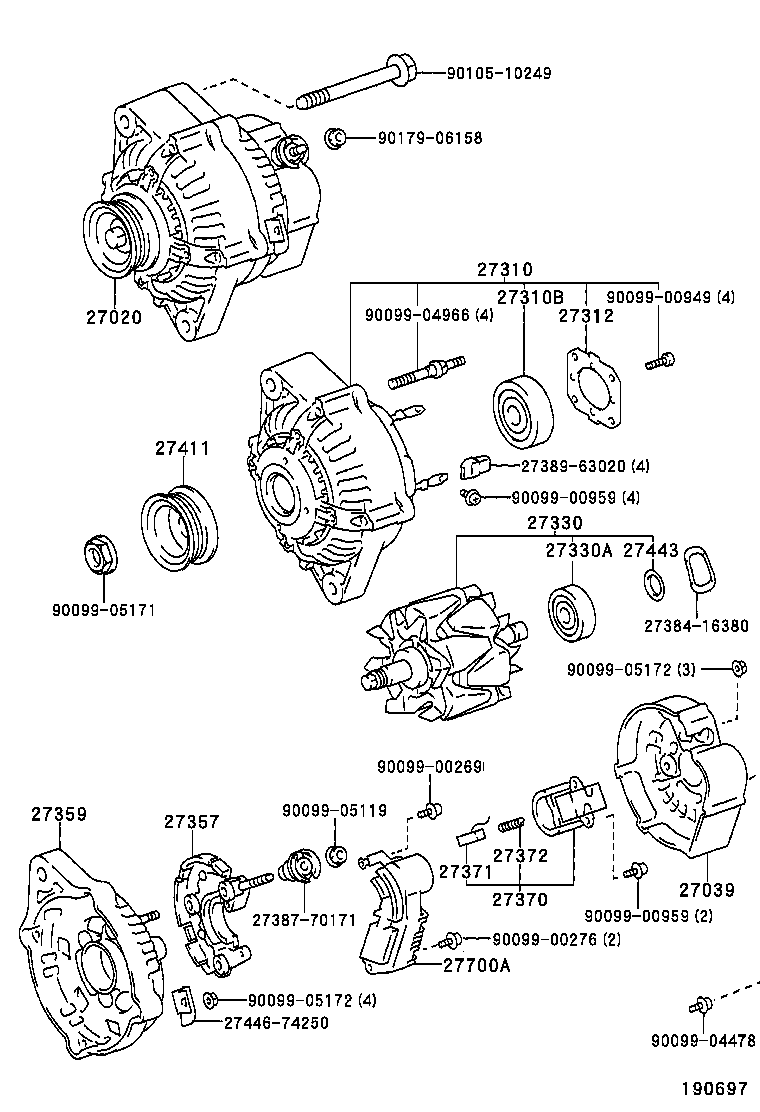

Click highlighted areas on diagram

12V 70A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 2738416380 2738770171 2738963020 27411 27443 2744674250 27700A 9009900269 9009900276 9009900949 9009900959 9009900959 9009904478 9009904966 9009905119 9009905171 9009905172 9009905172 9010510249 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-74370

3SFE..ST191..JPP

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-73020

4AFE,3SFE..AT190,ST191..JPP

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70100

3SFE..ST191..JPP

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

4AFE,3SFE..AT190,ST191..JPP

 1
27312 - PLATE, RETAINER
27312-70200

4AFE,3SFE..AT190,ST191..JPP

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

4AFE,3SFE..AT190,ST191..JPP

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4AFE,2C,3SFE..AT190,CT190,ST191..JPP

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

4AFE,3SFE..AT190,ST191..JPP

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-43160

3SFE..ST191..JPP

 1
27359-43161

3SFE..ST191..JPP

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-70300

4AFE,3SFE..AT190,ST191..JPP

 1
27370-35060

4AFE,3SFE..AT190,ST191..JPP

 1
27371 - BRUSH, ALTERNATOR
27371-70300

4AFE,3SFE..AT190,ST191..JPP

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

4AFE,3SFE..AT190,ST191..JPP

 2
27411 - PULLEY, ALTERNATOR
27411-16211

3SFE..ST191..JPP

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4AFE,2C,3SFE..AT190,CT190,ST191..JPP

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74030

4AFE,3SFE..AT190,ST191..JPP

 1
Common parts
27384-16380
27387-70171
27389-63020
27446-74250
90099-00269
90099-00276
90099-00949
90099-00959
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90105-10249
90179-06158
