ST191R-AEPDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9203- )3SFE..JPP

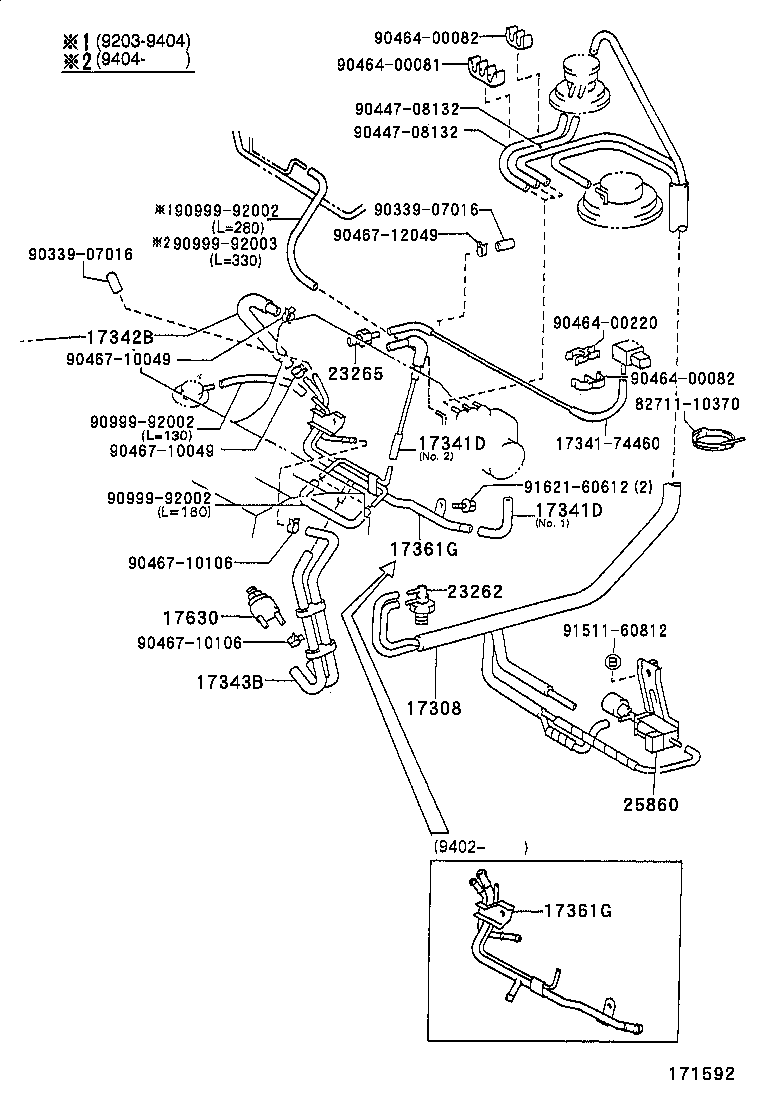

Click highlighted areas on diagram

diagram 17308 1734174460 17341D 17341D 17342B 17343B 17361G 17361G 17630 23262 23265 25860 8271110370 9033907016 9033907016 9044708132 9044708132 9046400081 9046400082 9046400082 9046400220 9046710049 9046710049 9046710106 9046710106 9046712049 9099992002 9099992002 9099992002 9099992003 9151160812 9162160612
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74430

3SFE..ST191..JPP

NO.2

 1
17341-74340

3SFE..ST191..JPP

NO.1

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74430

3SFE..ST191..JPP

NO.2

 1
17341-74340

3SFE..ST191..JPP

NO.1

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74141

3SFE..ST191..JPP

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74100

3SFE..ST191..JPP

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74150

3SFE..ST191..JPP

 1
17361-74110

3SFE..ST191..JPP

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74150

3SFE..ST191..JPP

 1
17361-74110

3SFE..ST191..JPP

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SFE..ST191..JPP

 1
23265 - FILTER, GAS, NO.1
90917-11023

3SFE..ST191..JPP

 1
Common parts
17341-74460
82711-10370
90339-07016
90447-08132
90464-00081
90464-00082
90464-00220
90467-10049
90467-10106
90467-12049
90999-92002
90999-92003
91511-60812
91621-60612
