ST191R-AEMNK (1992)
Toyota Corona (Sed/Lb)

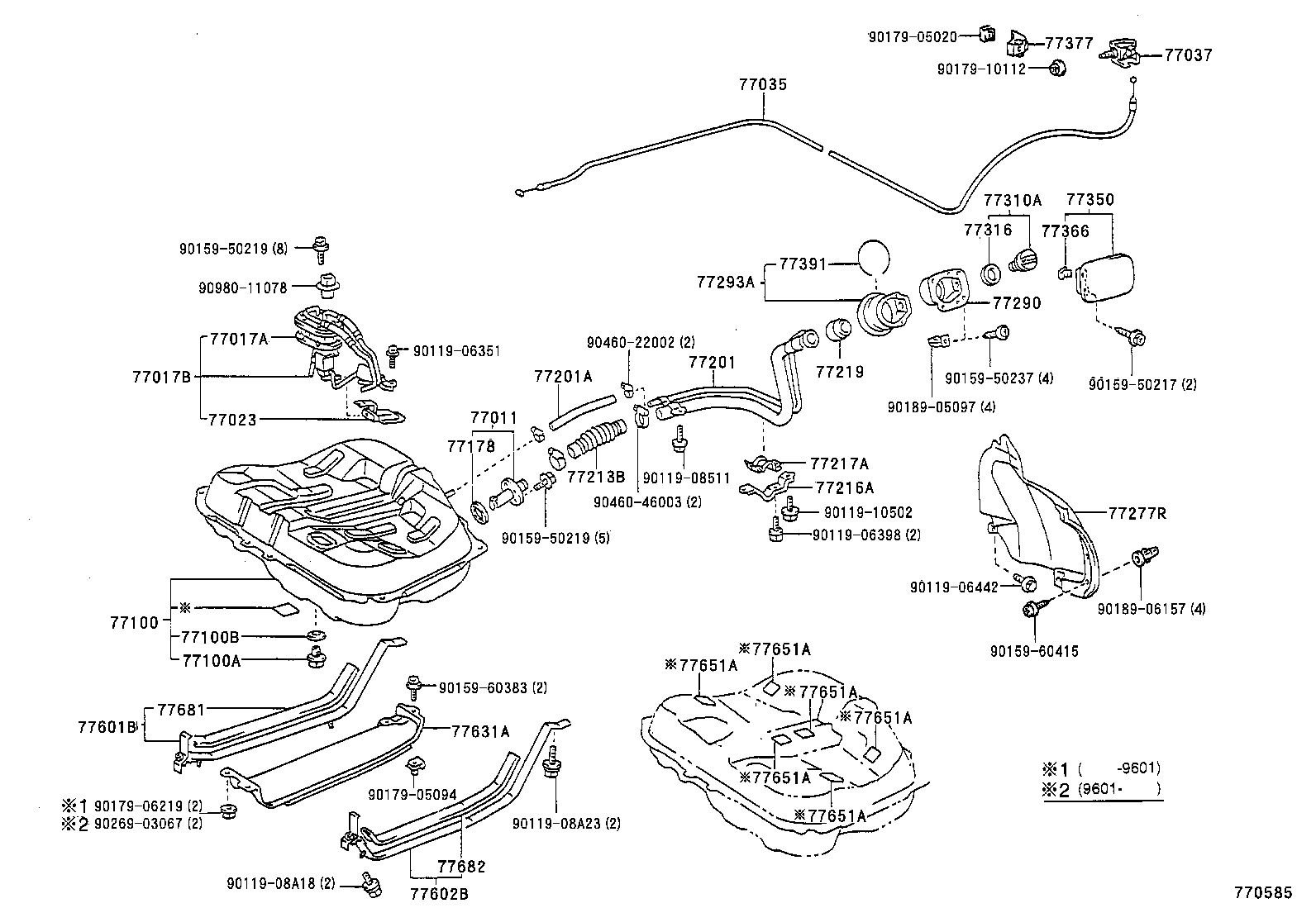

ILLUST NO. 1 OF 2(9203- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10050 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 77011-10050 |
AT190,CT190,ST191..JPP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20390 |
AT190,ST191..JPP..RHD |
1 | ||
| 77035-20390 |
AT190,ST191..JPP..RHD |
1 | ||
| 77035-20390 |
AT190,ST191..JPP..RHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 77037-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 77037-20070 |
AT190,ST191..JPP |
1 | ||
| 77037-20070 |
AT190,ST191..JPP |
1 | ||
| 77037-20070 |
AT190..JPP..RHD;CT190,ST191..JPP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29296 |
AT190,ST191..JPP |
1 | ||
| 77001-29295 |
AT190,ST191..JPP |
1 | ||
| 77001-29296 |
AT190,ST191..JPP |
1 | ||
| 77001-29296 |
AT190,ST191..JPP |
1 | ||
| 77001-29295 |
AT190,CT190,ST191..JPP |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AT190,CT190,ST191..JPP |
1 | ||
| 90105-12116 |
AT190,ST191..JPP |
1 | ||
| 90105-12116 |
AT190,ST191..JPP |
1 | ||
| 90105-12116 |
AT190,CT190,ST191..JPP |
1 | ||
| 90105-12116 |
AT190,CT190,ST191..JPP |
1 | ||
| 90105-12116 |
AT190,ST191..JPP |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AT190,CT190,ST191..JPP |
1 | ||
| 90430-12245 |
AT190,CT190,ST191..JPP |
1 | ||
| 90430-12245 |
AT190,CT190,ST191..JPP |
1 | ||
| 90430-12245 |
AT190,ST191..JPP |
1 | ||
| 90430-12245 |
AT190,ST191..JPP |
1 | ||
| 90430-12245 |
AT190,ST191..JPP |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 77178-20030 |
AT190,ST191..JPP |
1 | ||
| 77178-20030 |
AT190,ST191..JPP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20400 |
AT190,ST191..JPP..RHD..SED..GL SINGAPORE SPEC OR THAILAND SPEC |
1 | ||
| 77201-20390 |
AT190,ST191..JPP |
1 | ||
| 77201-20400 |
AT190,ST191..JPP..RHD SINGAPORE SPEC OR THAILAND SPEC |
1 | ||
| 77201-20390 |
AT190,CT190,ST191..JPP |
1 | ||
| 77201-20400 |
AT190..JPP..RHD..MTM..GL;ST191..JPP..RHD..SED..GL SINGAPORE SPEC OR THAILAND SPEC |
1 | ||
| 77201-20390 |
AT190,ST191..JPP |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22024 |
AT190,CT190,ST191..JPP L=220 |
1 | ||
| 90445-22024 |
AT190,ST191..JPP L=220 |
1 | ||
| 90445-22024 |
AT190,ST191..JPP L=220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-18010 |
AT190,CT190,ST191..JPP L=230 |
1 | ||
| 77213-18010 |
AT190,ST191..JPP L=230 |
1 | ||
| 77213-18010 |
AT190,ST191..JPP L=230 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-20170 |
AT190,ST191..JPP |
1 | ||
| 77216-20170 |
AT190,ST191..JPP |
1 | ||
| 77216-20170 |
AT190,CT190,ST191..JPP |
1 | ||
| 77216-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-20050 |
AT190,ST191..JPP |
1 | ||
| 77217-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 77217-20050 |
AT190,ST191..JPP |
1 | ||
| 77217-32030 |
AT190,CT190,ST191..JPP |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
AT190,ST191..JPP |
2 | ||
| 77219-32030 |
AT190,CT190,ST191..JPP TYPE A |
2 | ||
| 77219-32030 |
AT190,ST191..JPP |
2 | ||
| 77219-32030 |
AT190,ST191..JPP |
2 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-20210 |
AT190,CT190,ST191..JPP |
1 | ||
| 77277-20210 |
AT190,ST191..JPP |
1 | ||
| 77277-20210 |
AT190,ST191..JPP |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20140 |
AT190,CT190,ST191..JPP |
1 | ||
| 77290-20140 |
AT190,ST191..JPP |
1 | ||
| 77290-20140 |
AT190,ST191..JPP |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20090 |
AT190,ST191..JPP |
1 | ||
| 77293-20090 |
AT190,ST191..JPP |
1 | ||
| 77293-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AT190,ST191..JPP |
1 | ||
| 77310-16011 |
AT190,ST191..JPP |
1 | ||
| 77310-16011 |
AT190,ST191..JPP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AT190,ST191..JPP |
1 | ||
| 77316-16010 |
AT190,CT190,ST191..JPP |
1 | ||
| 77316-16010 |
AT190,ST191..JPP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20210 |
AT190,CT190,ST191..JPP |
1 | ||
| 77350-21020 |
AT190,CT190,ST191..JPP |
1 | ||
| 77350-21020 |
AT190,ST191..JPP |
1 | ||
| 77350-21020 |
AT190,ST191..JPP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12030 |
AT190,CT190,ST191..JPP |
1 | ||
| 77360-20030 |
AT190,ST191..JPP |
1 | ||
| 77360-20030 |
AT190,ST191..JPP |
1 | ||
| 77360-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20060 |
AT190,CT190,ST191..JPP |
1 | ||
| 77377-20060 |
AT190..JPP..RHD;CT190,ST191..JPP |
1 | ||
| 77377-20060 |
AT190,ST191..JPP |
1 | ||
| 77377-20060 |
AT190,ST191..JPP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-20020 |
AT190,CT190,ST191..JPP |
1 | ||
| 77391-20020 |
AT190,ST191..JPP |
1 | ||
| 77391-20020 |
AT190,ST191..JPP |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-20220 |
AT190,ST191..JPP |
1 | ||
| 77601-20220 |
AT190,ST191..JPP |
1 | ||
| 77601-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 77601-20220 |
AT190,ST191..JPP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-20140 |
AT190,ST191..JPP |
1 | ||
| 77602-20140 |
AT190,ST191..JPP |
1 | ||
| 77602-20140 |
AT190,CT190,ST191..JPP |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-20090 |
AT190,ST191..JPP |
1 | ||
| 77631-20090 |
AT190,ST191..JPP |
1 | ||
| 77631-20090 |
AT190,ST191..JPP |
1 | ||
| 77631-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,CT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,CT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,CT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,CT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,CT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,CT190,ST191..JPP |
6 | ||
| 77651-32050 |
AT190,ST191..JPP |
6 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32070 |
AT190,CT190,ST191..JPP |
1 | ||
| 77681-32060 |
AT190,CT190,ST191..JPP |
1 | ||
| 77681-32060 |
AT190,ST191..JPP |
1 | ||
| 77681-32040 |
AT190,CT190,ST191..JPP |
1 | ||
| 77681-32060 |
AT190,ST191..JPP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32040 |
AT190,CT190,ST191..JPP |
1 | ||
| 77681-32060 |
AT190,ST191..JPP |
1 | ||
| 77681-32060 |
AT190,ST191..JPP |
1 | ||
| 77681-32060 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06398 | ||||
| 90119-06442 | ||||
| 90119-08511 | ||||
| 90119-08A18 | ||||
| 90119-08A23 | ||||
| 90119-10502 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50237 | ||||
| 90159-60383 | ||||
| 90159-60415 | ||||
| 90179-05020 | ||||
| 90179-05094 | ||||
| 90179-06219 | ||||
| 90179-10112 | ||||
| 90189-05097 | ||||
| 90189-06157 | ||||
| 90269-03067 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90980-11078 | ||||

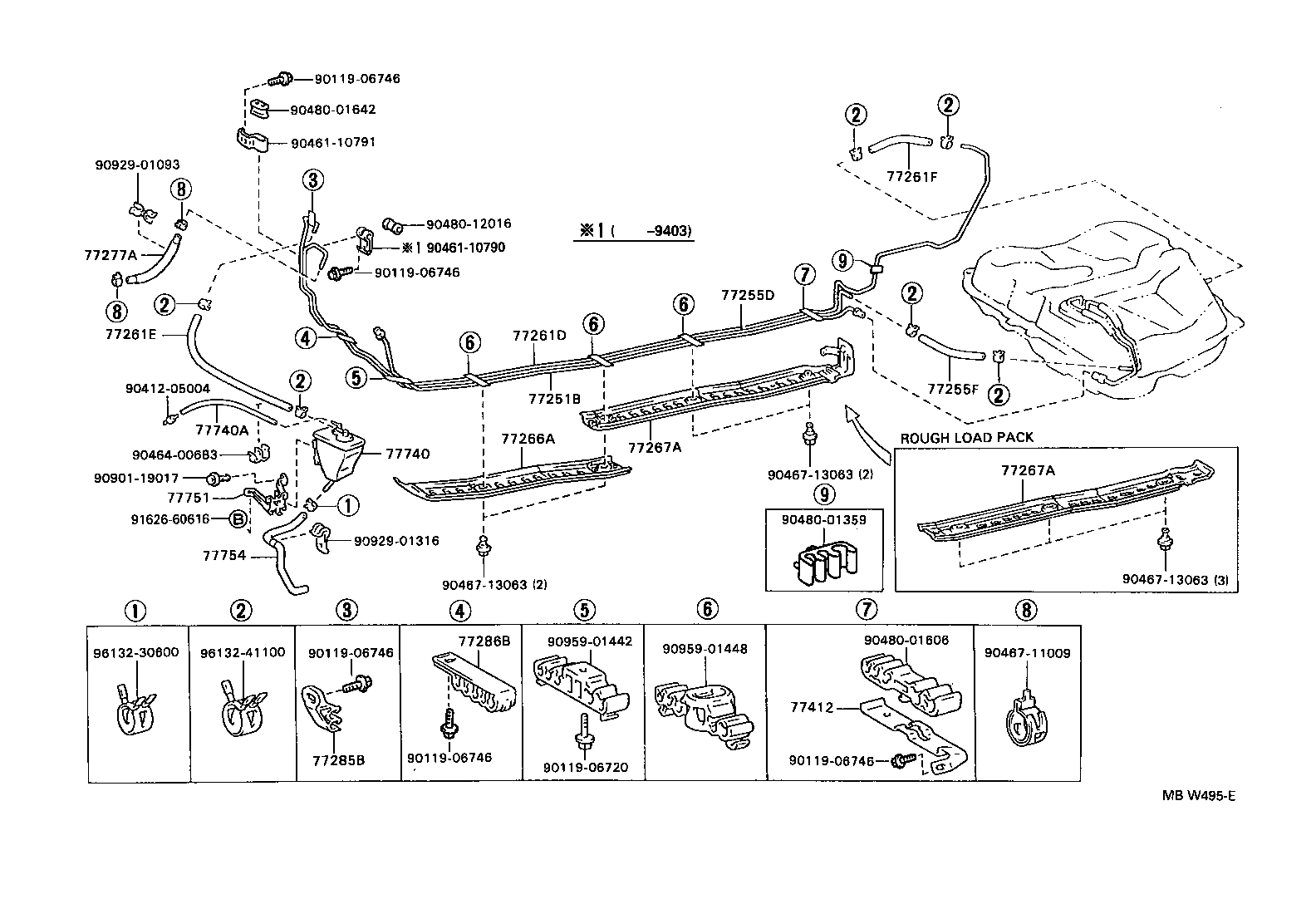

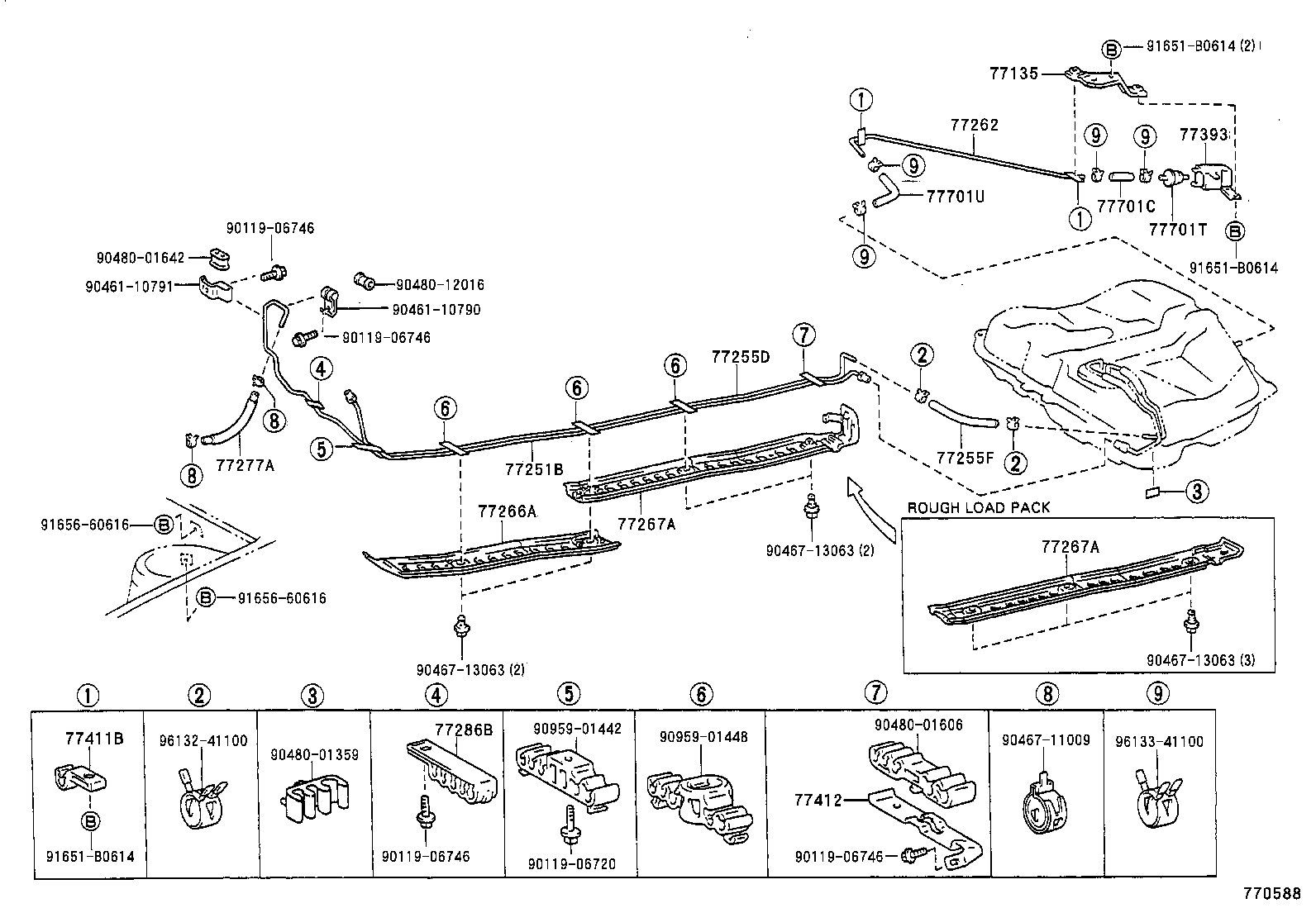

ILLUST NO. 2 OF 2(9203- )ST191..JPP
W/O(CHACOAL CANISTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77277-20220 |
AT190,ST191..JPP |
1 | ||
| 77277-20220 |
AT190,ST191..JPP |
1 | ||
| 77277-20220 |
AT190,ST191..JPP |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20600 |
ST191..JPP |
1 | ||
| 77251-20690 |
ST191..JPP..RHD..SED..GL EX.EMISSION CONTROL(US'83) |
1 | ||
| 77251-20600 |
ST191..JPP |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20490 |
ST191..JPP |
1 | ||
| 77255-20630 |
ST191..JPP |
1 | ||
| 77255-20630 |
ST191..JPP |
1 | ||
| 77255-20560 |
ST191..JPP..RHD..SED..GL EX.EMISSION CONTROL(US'83) |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
AT190,CT190,ST191..JPP *H,L=160 |
1 | ||
| 95333-06020 |
AT190,ST191..JPP *H,L=160 |
1 | ||
| 95333-06020 |
AT190,ST191..JPP *H,L=160 |
1 | ||
| 95333-06020 |
AT190,ST191..JPP *H,L=160 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-20010 |
AT190,ST191..JPP |
1 | ||
| 77262-20011 |
AT190,ST191..JPP |
1 | ||
| 77262-20011 |
AT190,ST191..JPP |
1 | ||
| 77262-20011 |
AT190,ST191..JPP |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20120 |
AT190,ST191..JPP |
1 | ||
| 77266-20120 |
AT190,CT190,ST191..JPP |
1 | ||
| 77266-20120 |
AT190,ST191..JPP |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20110 |
AT190,ST191..JPP |
1 | ||
| 77267-20120 |
AT190,ST191..JPP ROUGH ROAD PACKAGE |
1 | ||
| 77267-20110 |
AT190,CT190,ST191..JPP |
1 | ||
| 77267-20110 |
AT190,ST191..JPP |
1 | ||
| 77267-20120 |
AT190,CT190..JPP;ST191..JPP..SED..GL ROUGH ROAD PACKAGE |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20110 |
AT190,ST191..JPP |
1 | ||
| 77267-20120 |
AT190,ST191..JPP ROUGH ROAD PACKAGE |
1 | ||
| 77267-20110 |
AT190,CT190,ST191..JPP |
1 | ||
| 77267-20110 |
AT190,ST191..JPP |
1 | ||
| 77267-20120 |
AT190,CT190..JPP;ST191..JPP..SED..GL ROUGH ROAD PACKAGE |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12085 |
ST191..JPP L=320 |
1 | ||
| 90447-12085 |
ST191..JPP L=320 |
1 | ||
| 90447-12141 |
ST191..JPP L=320 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-20070 |
AT190,ST191..JPP |
1 | ||
| 77286-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 77286-20070 |
AT190,ST191..JPP |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-20010 |
AT190,ST191..JPP |
1 | ||
| 77393-20010 |
AT190,ST191..JPP |
1 | ||
| 77393-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77412-30030 |
AT190,ST191..JPP |
2 | ||
| 77412-30030 |
AT190,ST191..JPP |
2 | ||
| 77412-30030 |
AT190,ST191..JPP |
2 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-20040 |
AT190,ST191..JPP |
1 | ||
| 77412-20040 |
AT190,ST191..JPP |
1 | ||
| 77412-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 77701C - HOSE, FUEL, NO.3 (FOR BREATHER VALVE) | ||||
| 95333-06010 |
AT190,ST191..JPP *H,L=60 |
1 | ||
| 95333-06010 |
AT190,ST191..JPP *H,L=60 |
1 | ||
| 95333-06010 |
AT190,ST191..JPP *H,L=60 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
AT190,ST191..JPP |
1 | ||
| 90917-10082 |
AT190,CT190,ST191..JPP |
1 | ||
| 90917-10082 |
AT190,ST191..JPP |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
AT190,CT190,ST191..JPP *H,L=220 |
1 | ||
| Common parts | ||||
| 90119-06720 | ||||
| 90119-06746 | ||||
| 90461-10790 | ||||
| 90461-10791 | ||||
| 90467-11009 | ||||
| 90467-13063 | ||||
| 90480-01359 | ||||
| 90480-01606 | ||||
| 90480-01642 | ||||
| 90480-12016 | ||||
| 90959-01442 | ||||
| 90959-01448 | ||||
| 91651-B0614 | ||||
| 91656-60616 | ||||
| 96132-41100 | ||||
| 96133-41100 | ||||
ILLUST NO. 2 OF 2(9203- )ST191..JPP..RHD
W(CHARCOAL CANISTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20600 |
ST191..JPP |
1 | ||
| 77251-20690 |
ST191..JPP..RHD..SED..GL EX.EMISSION CONTROL(US'83) |
1 | ||
| 77251-20600 |
ST191..JPP |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20490 |
ST191..JPP |
1 | ||
| 77255-20630 |
ST191..JPP |
1 | ||
| 77255-20630 |
ST191..JPP |
1 | ||
| 77255-20560 |
ST191..JPP..RHD..SED..GL EX.EMISSION CONTROL(US'83) |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
AT190,CT190,ST191..JPP *H,L=160 |
1 | ||
| 95333-06020 |
AT190,ST191..JPP *H,L=160 |
1 | ||
| 95333-06020 |
AT190,ST191..JPP *H,L=160 |
1 | ||
| 95333-06020 |
AT190,ST191..JPP *H,L=160 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-20250 |
AT190..JPP..RHD;ST191..JPP..RHD..SED..GL |
1 | ||
| 77261-20250 |
AT190,ST191..JPP..RHD..SED..GL |
1 | ||
| 77261-20250 |
AT190,ST191..JPP..RHD |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 90445-12266 |
AT190..JPP..RHD..MTM;ST191..JPP..RHD..SED..GL L=470 |
1 | ||
| 90445-12266 |
AT190,ST191..JPP..RHD L=470 |
1 | ||
| 90445-12266 |
AT190,ST191..JPP..RHD..SED..GL L=470 |
1 | ||
| 90445-12266 |
AT190..JPP..RHD;ST191..JPP..RHD..SED..GL L=470 |
1 | ||
| 90445-12266 |
ST191..JPP..RHD..SED..GL L=470 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AT190,ST191..JPP..RHD..SED..GL *H,L=170 |
1 | ||
| 95333-06020 |
AT190..JPP..RHD;ST191..JPP..RHD..SED..GL *H,L=170 |
1 | ||
| 95333-06020 |
AT190,ST191..JPP..RHD *H,L=170 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20120 |
AT190,ST191..JPP |
1 | ||
| 77266-20120 |
AT190,CT190,ST191..JPP |
1 | ||
| 77266-20120 |
AT190,ST191..JPP |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20110 |
AT190,ST191..JPP |
1 | ||
| 77267-20120 |
AT190,ST191..JPP ROUGH ROAD PACKAGE |
1 | ||
| 77267-20110 |
AT190,CT190,ST191..JPP |
1 | ||
| 77267-20110 |
AT190,ST191..JPP |
1 | ||
| 77267-20120 |
AT190,CT190..JPP;ST191..JPP..SED..GL ROUGH ROAD PACKAGE |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20110 |
AT190,ST191..JPP |
1 | ||
| 77267-20120 |
AT190,ST191..JPP ROUGH ROAD PACKAGE |
1 | ||
| 77267-20110 |
AT190,CT190,ST191..JPP |
1 | ||
| 77267-20110 |
AT190,ST191..JPP |
1 | ||
| 77267-20120 |
AT190,CT190..JPP;ST191..JPP..SED..GL ROUGH ROAD PACKAGE |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12085 |
ST191..JPP L=320 |
1 | ||
| 90447-12085 |
ST191..JPP L=320 |
1 | ||
| 90447-12141 |
ST191..JPP L=320 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20080 |
AT190..JPP;ST191..JPP..RHD..SED..GL |
1 | ||
| 77285-20080 |
AT190,ST191..JPP..RHD..SED..GL |
1 | ||
| 77285-20080 |
AT190..JPP..RHD;ST191..JPP..RHD..SED..GL |
1 | ||
| 77285-20080 |
AT190,ST191..JPP..RHD |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-20070 |
AT190,ST191..JPP |
1 | ||
| 77286-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 77286-20070 |
AT190,ST191..JPP |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-20040 |
AT190,ST191..JPP |
1 | ||
| 77412-20040 |
AT190,ST191..JPP |
1 | ||
| 77412-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-20310 |
AT190,ST191..JPP..RHD..SED..GL |
1 | ||
| 77704-20310 |
AT190..JPP..RHD;ST191..JPP..RHD..SED..GL |
1 | ||
| 77704-20310 |
AT190,ST191..JPP..RHD |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-08307 |
AT190,ST191..JPP..RHD..SED..GL L=340 |
1 | ||
| 90445-08307 |
AT190,ST191..JPP..RHD L=340 |
1 | ||
| 90445-08307 |
AT190..JPP..RHD;ST191..JPP..RHD..SED..GL L=340 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77705-20050 |
AT190,ST191..JPP..RHD SINGAPORE SPEC OR THAILAND SPEC |
1 | ||
| 77705-20050 |
AT190,ST191..JPP..RHD..SED..GL SINGAPORE SPEC OR THAILAND SPEC |
1 | ||
| 77705-20050 |
AT190..JPP..RHD..MTM..GL;ST191..JPP..RHD..SED..GL SINGAPORE SPEC OR THAILAND SPEC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20250 |
AT190,ST191..JPP..RHD L=120,SINGAPORE SPEC OR THAILAND SPEC |
1 | ||
| 77754-20250 |
AT190..JPP..RHD..MTM..GL;ST191..JPP..RHD..SED..GL L=120,SINGAPORE SPEC OR THAILAND SPEC |
1 | ||
| 77754-20250 |
AT190,ST191..JPP..RHD..SED..GL L=120,SINGAPORE SPEC OR THAILAND SPEC |
1 | ||
| Common parts | ||||
| 90119-06720 | ||||
| 90119-06746 | ||||
| 90412-05004 | ||||
| 90461-10790 | ||||
| 90461-10791 | ||||
| 90464-00683 | ||||
| 90467-11009 | ||||
| 90467-13063 | ||||
| 90480-01359 | ||||
| 90480-01606 | ||||
| 90480-01642 | ||||
| 90480-12016 | ||||
| 90901-19017 | ||||
| 90929-01093 | ||||
| 90929-01316 | ||||
| 90959-01442 | ||||
| 90959-01448 | ||||
| 91626-60616 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
