ST191R-AEMDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jun 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9203- )JPP

Click highlighted areas on diagram

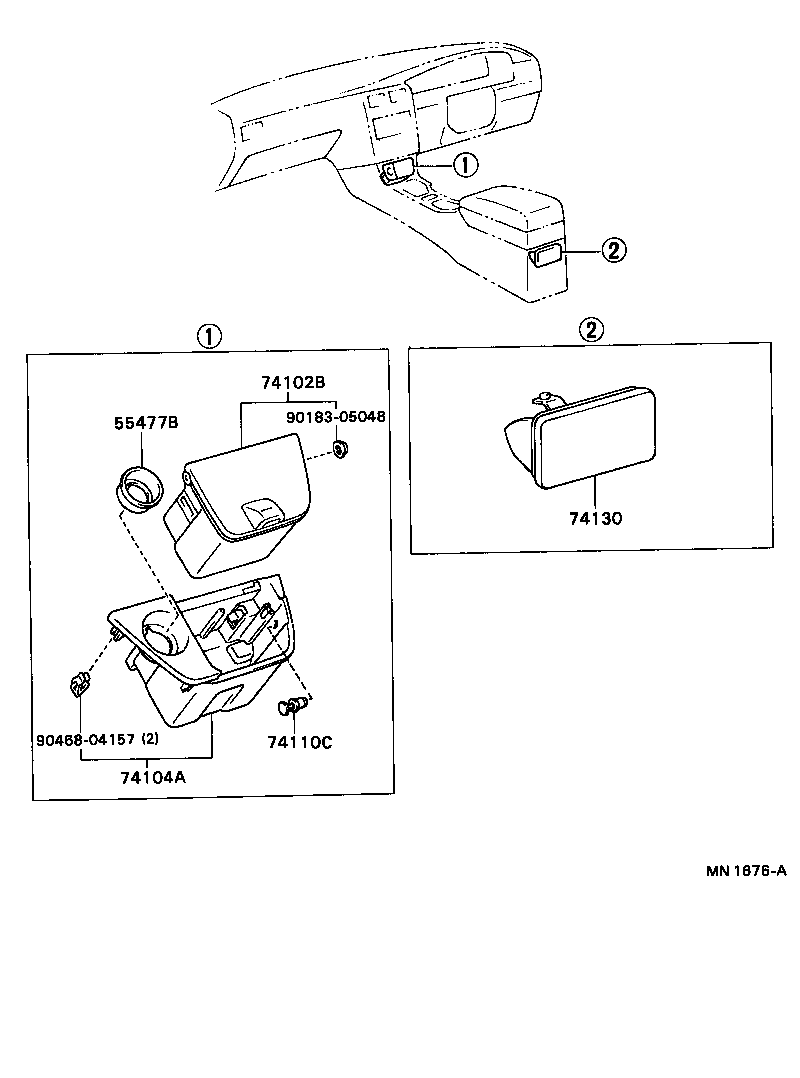

diagram 55477B 74102B 74104A 74110C 74130 9018305048 9046804157
Part # Description Qty Price
55477B - BEZEL, CIGARETTE LIGHTER HOLE
55477-20100

AT190,CT190,ST191..JPP

 1
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-20170J0

AT190,ST191..JPP..RHD..SED

DK.BLUE,TRIM8#

 1
74102-20170C0

AT190,ST191..JPP..RHD

BLACK,TRIM2#

 1
74102-20170C0

AT190,ST191..JPP..RHD..SED

BLACK,TRIM2#,8#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-20270J0

AT190,ST191..JPP..RHD..SED

DK.BLUE,TRIM8#

 1
74104-20270C0

AT190,ST191..JPP..RHD

BLACK,TRIM2#

 1
74104-20270C0

AT190,ST191..JPP..RHD..SED

BLACK,TRIM2#,8#

 1
74110C - CLIP, FRONT ASH RECEPTACLE, INNER
90467-0711322

AT190,CT190,ST191..JPP

BLACK,TRIM2#

 1
90467-07113W3

AT190,CT190,ST191..JPP..SED

DK.BLUE,TRIM8#

 1
90467-0711322

AT190,CT190,ST191..JPP..SED

BLACK,TRIM2#,8#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-20080W3

AT190,CT190,ST191..JPP..SED

DK.BLUE,TRIM8#

 1
74109-2008022

AT190,CT190,ST191..JPP

BLACK,TRIM2#

 1
74109-2008022

AT190,CT190,ST191..JPP..SED

BLACK,TRIM2#,8#

 1
Common parts
90183-05048
90468-04157
